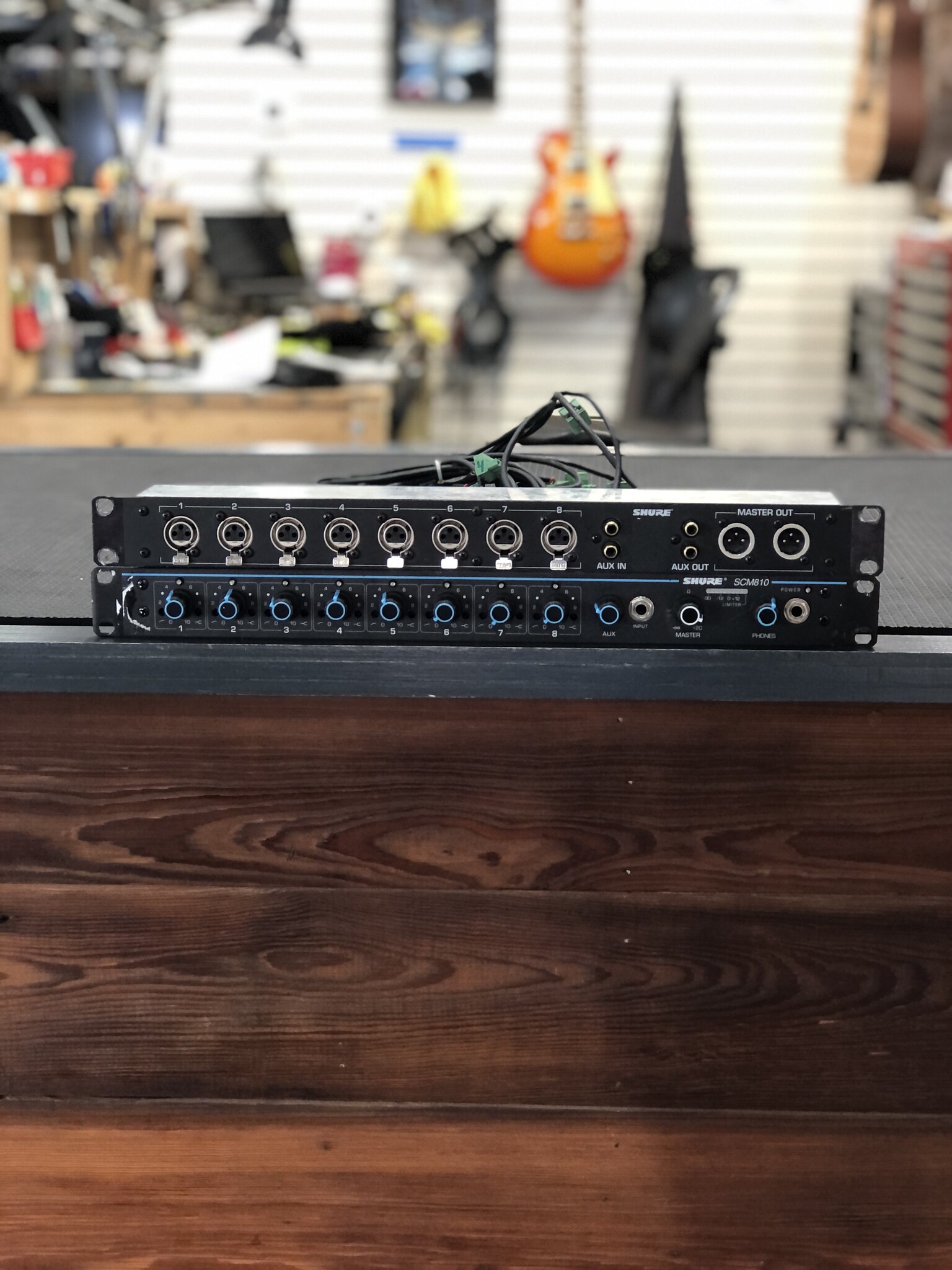

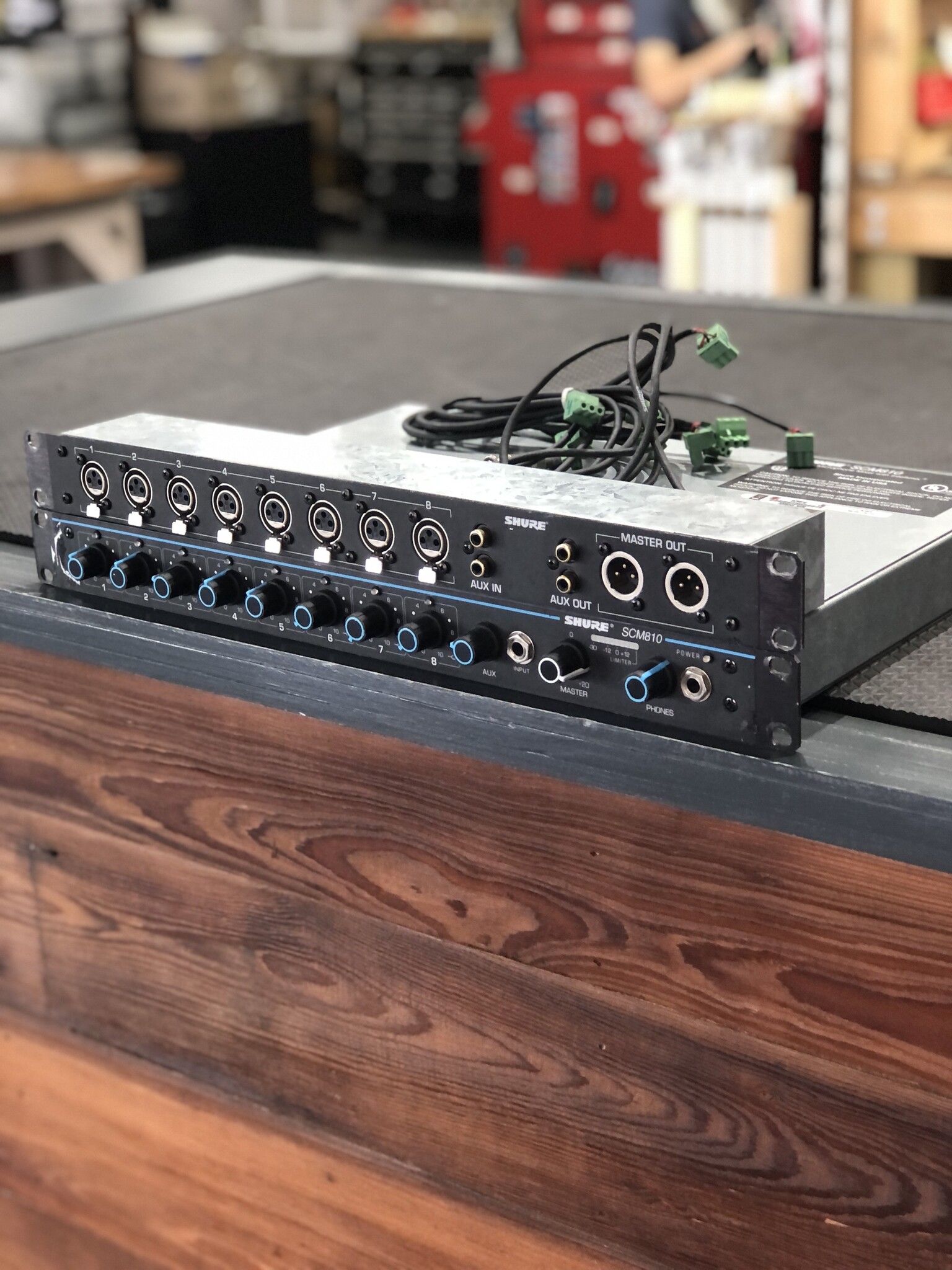

Shure SCM810 Automatic Microphone Mixer with Intellimix and RKC800 Patch Bay

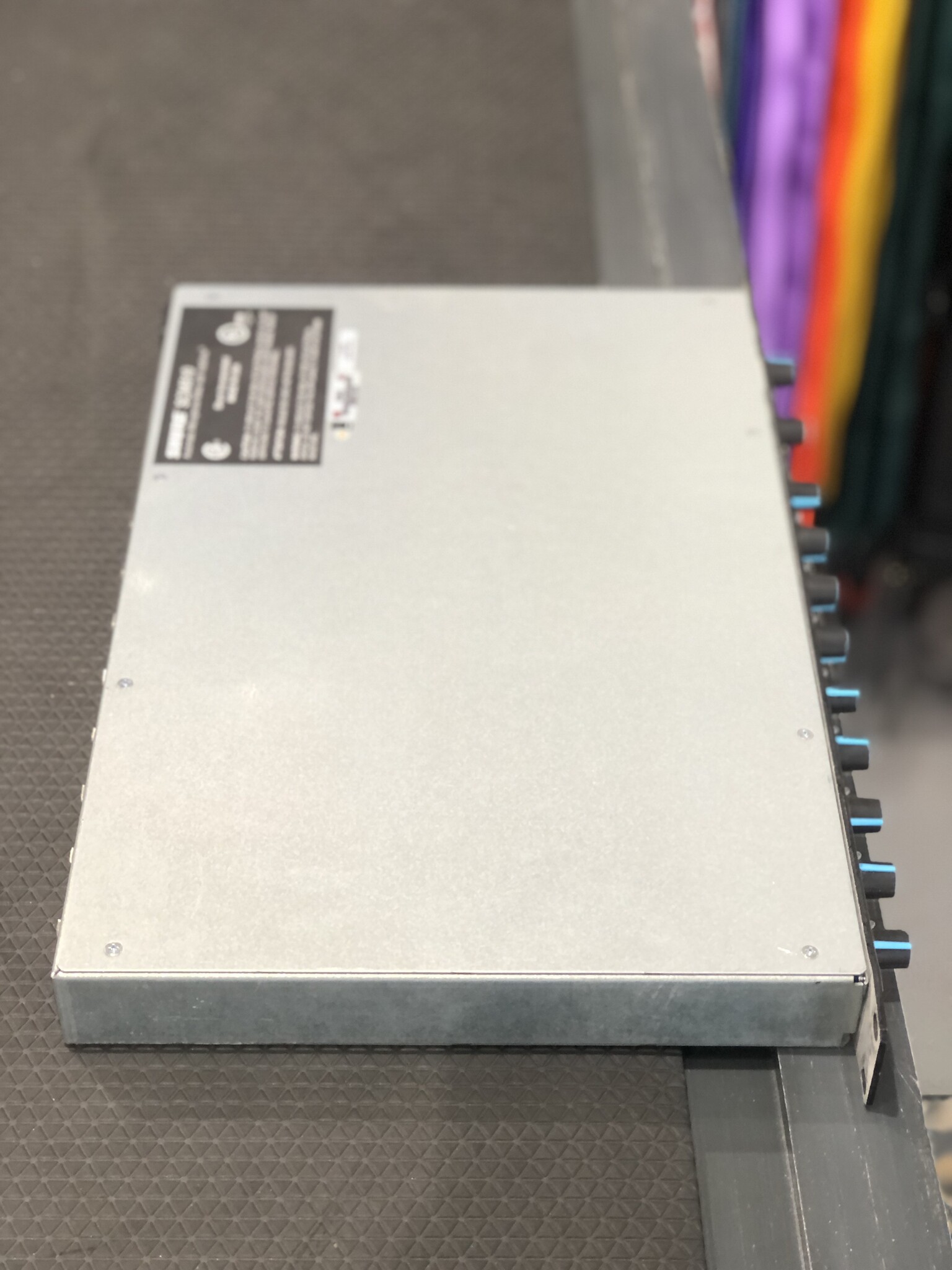

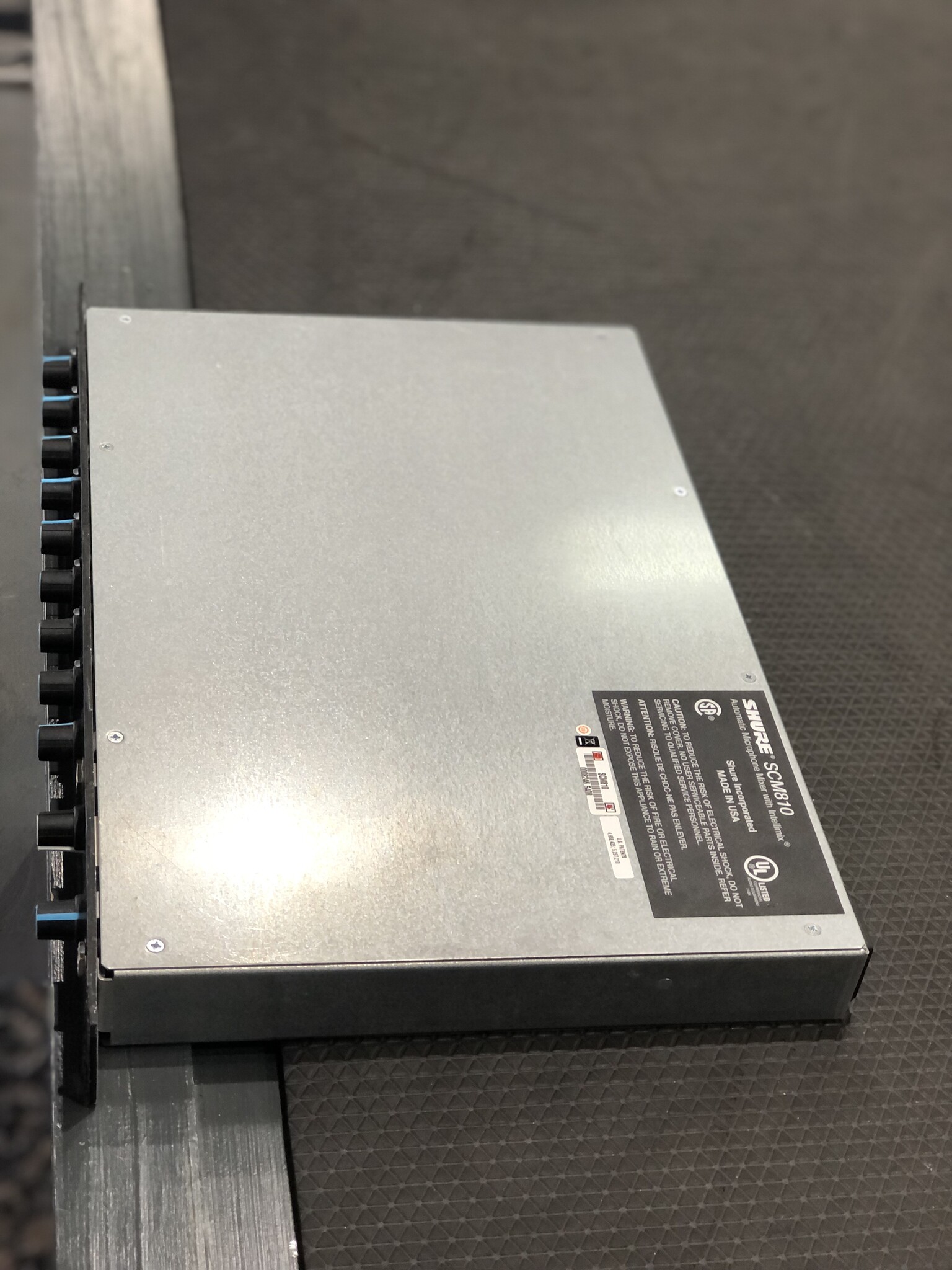

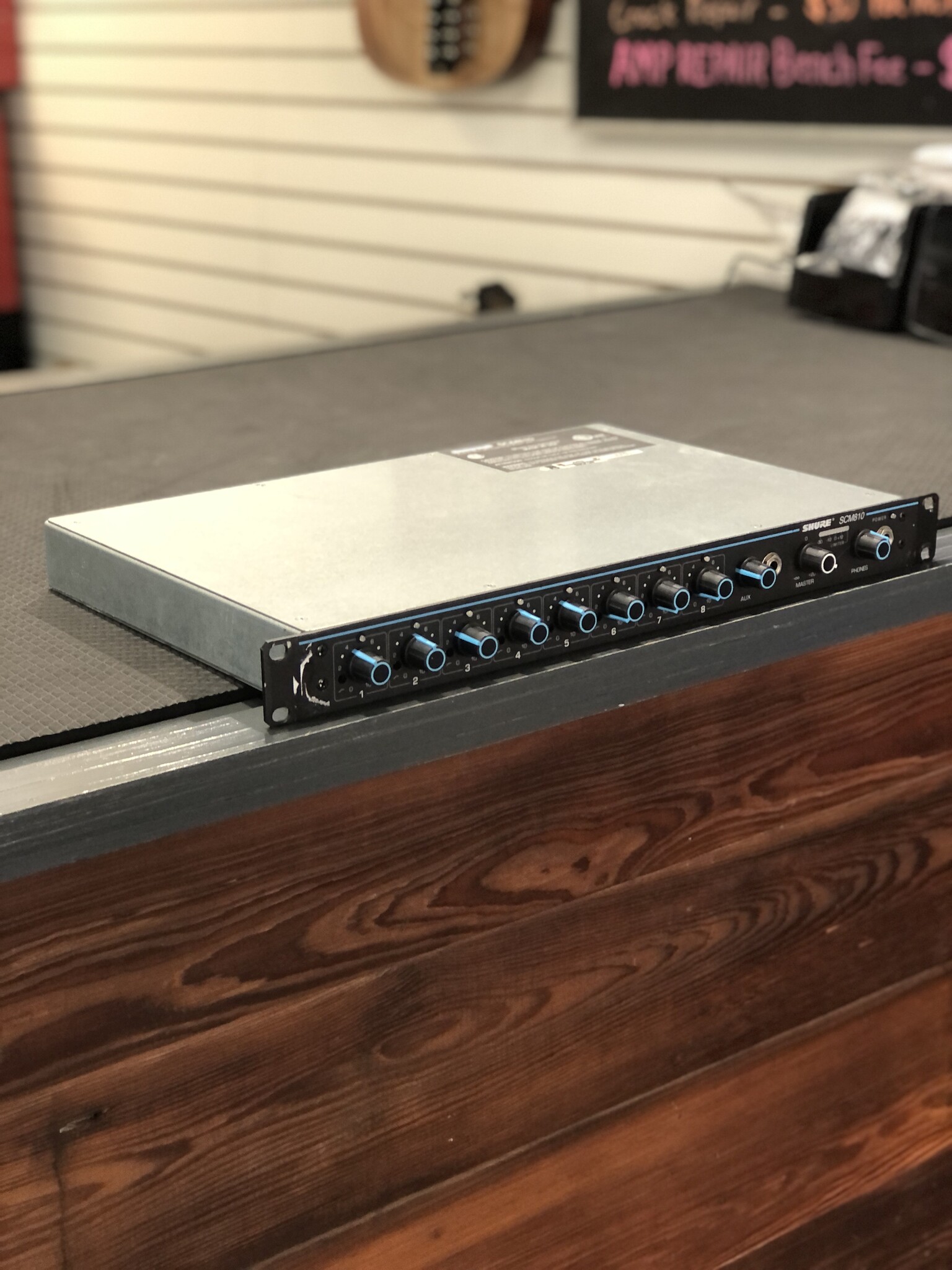

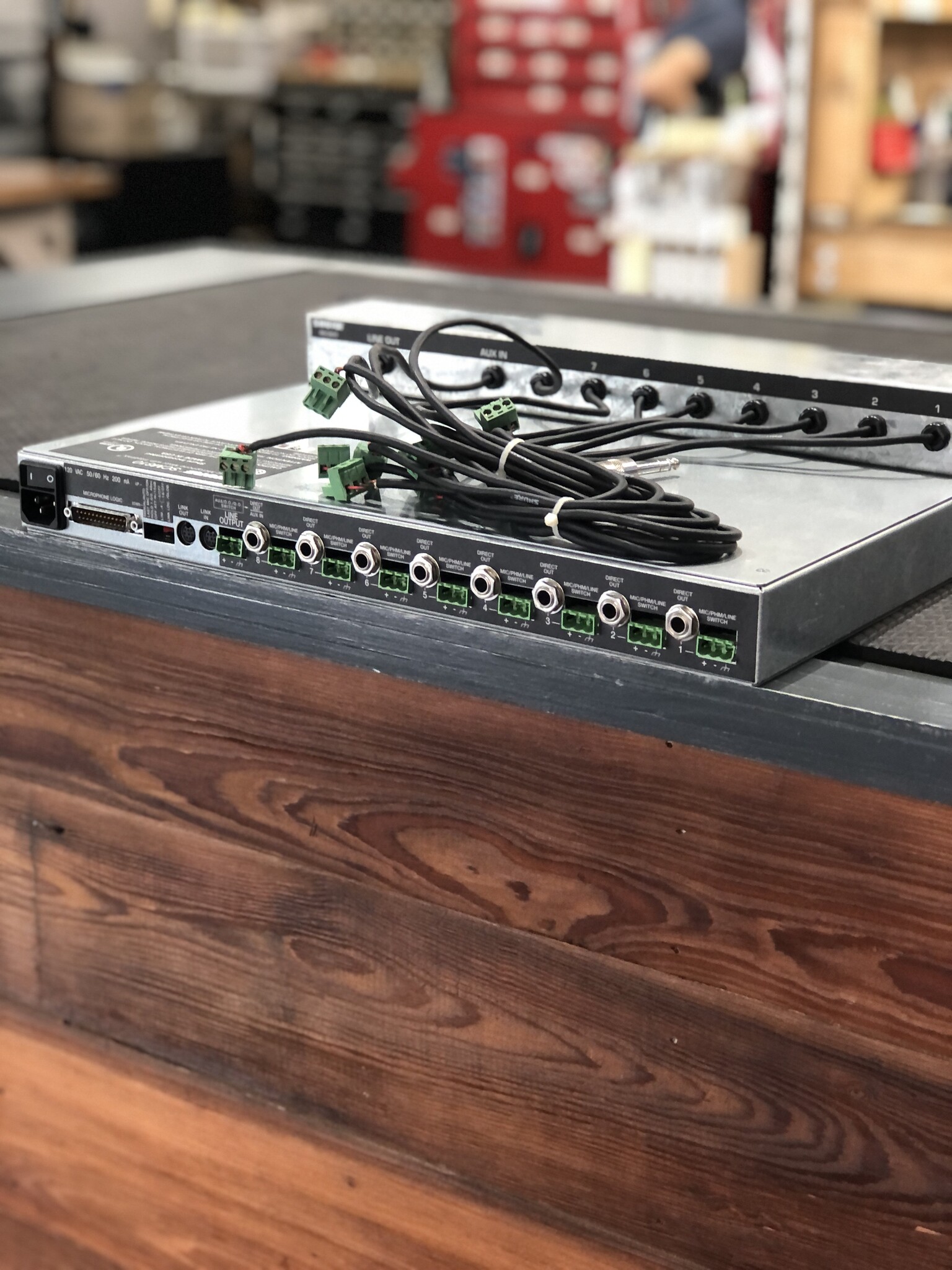

These units are used and show some slight wear as pictured. Original packaging is not included, IEC cable included. Here's more info from Shure:

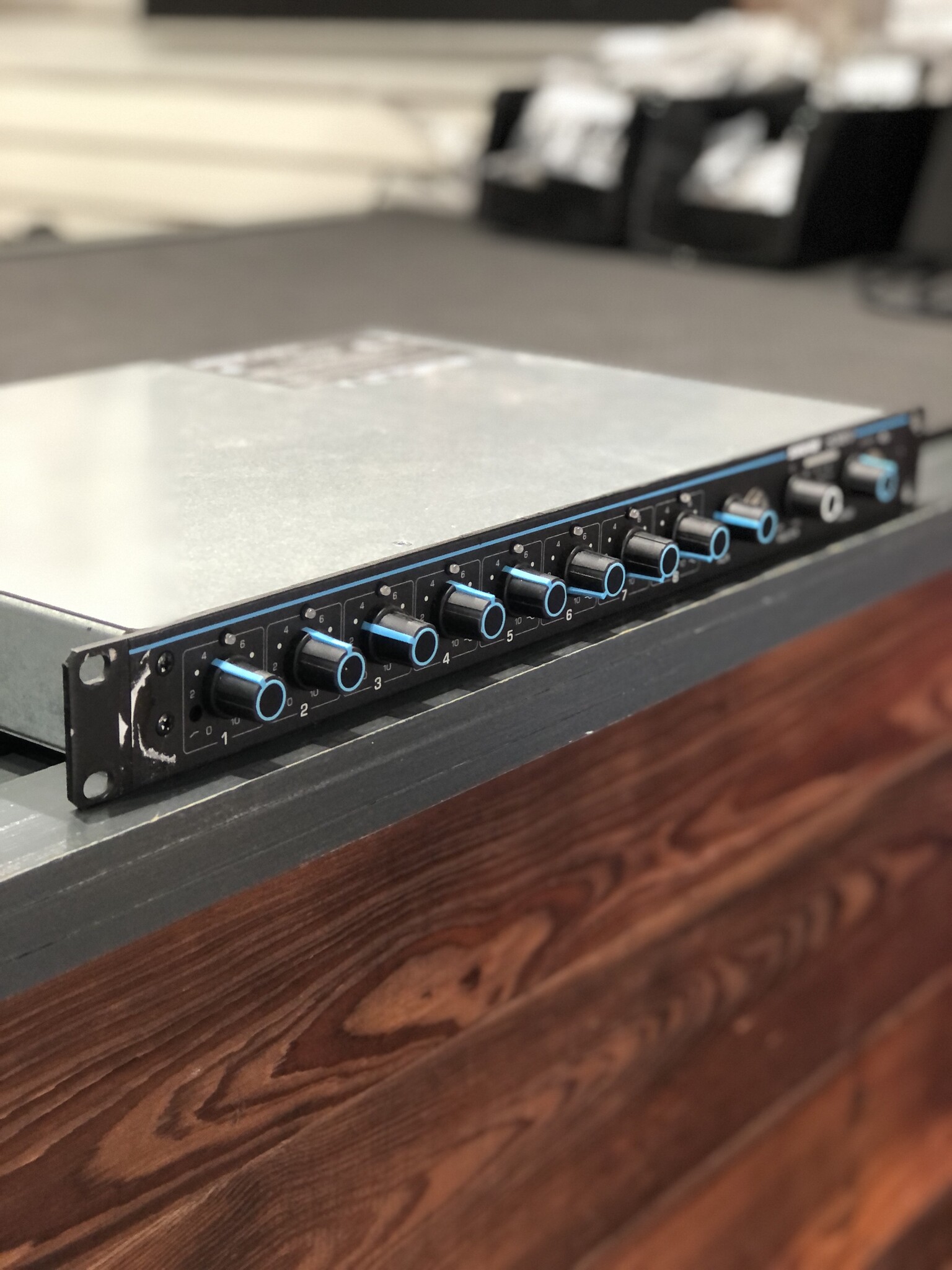

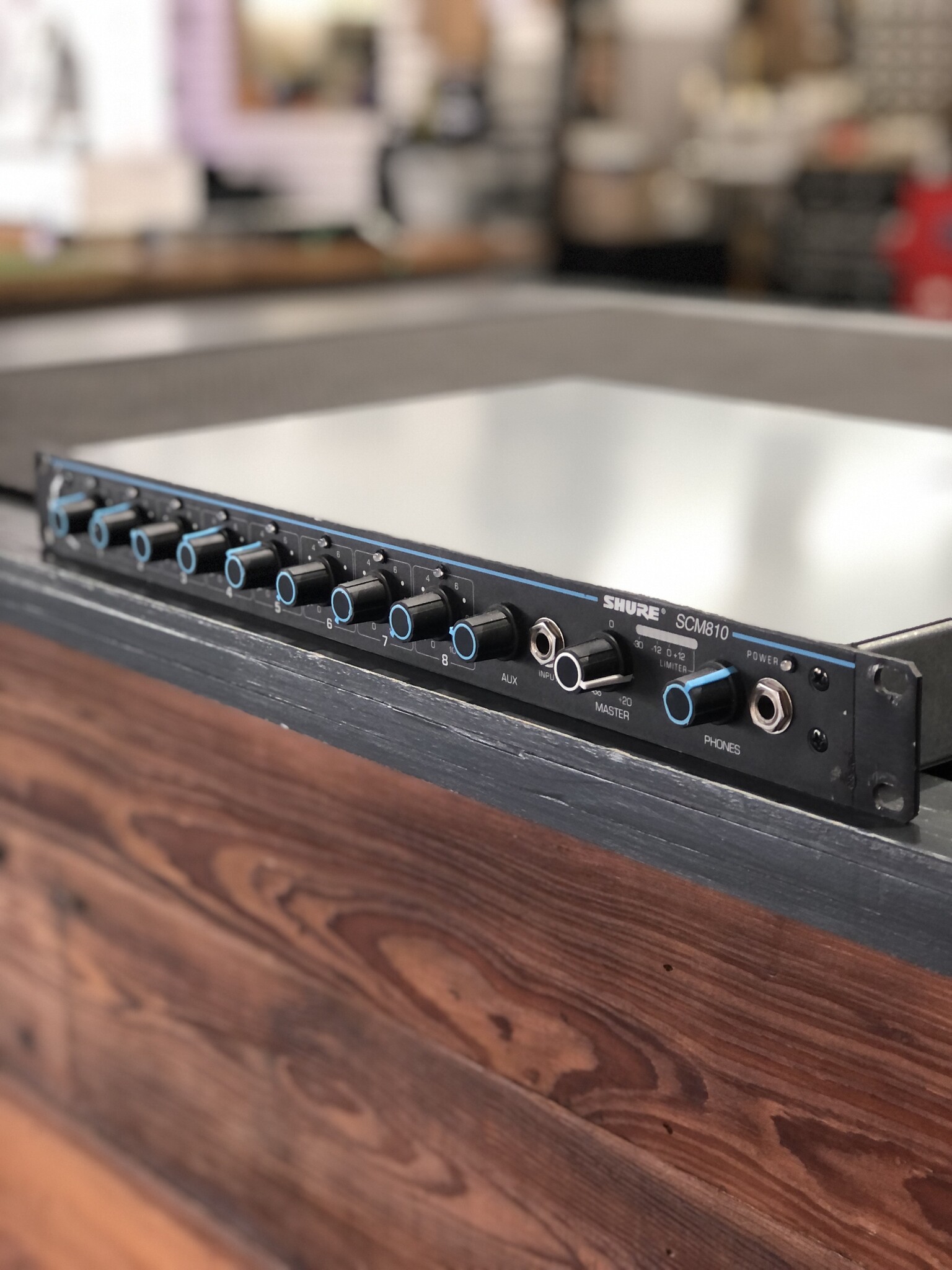

The Shure Model SCM810/E is an eight-channel automatic microphone mixer designed for use in sound reinforcement, audio recording, and broadcast applications. The SCM810 dramatically improves audio quality in any application where multiple microphones are required. Any low-impedance dynamic or condenser microphone (including wireless) can be used with the SCM810/E. Multiple SCM810 mixers can be linked to other SCM810/E mixers, as well as to Shure Models FP410, SCM410 and SCM800 mixers.

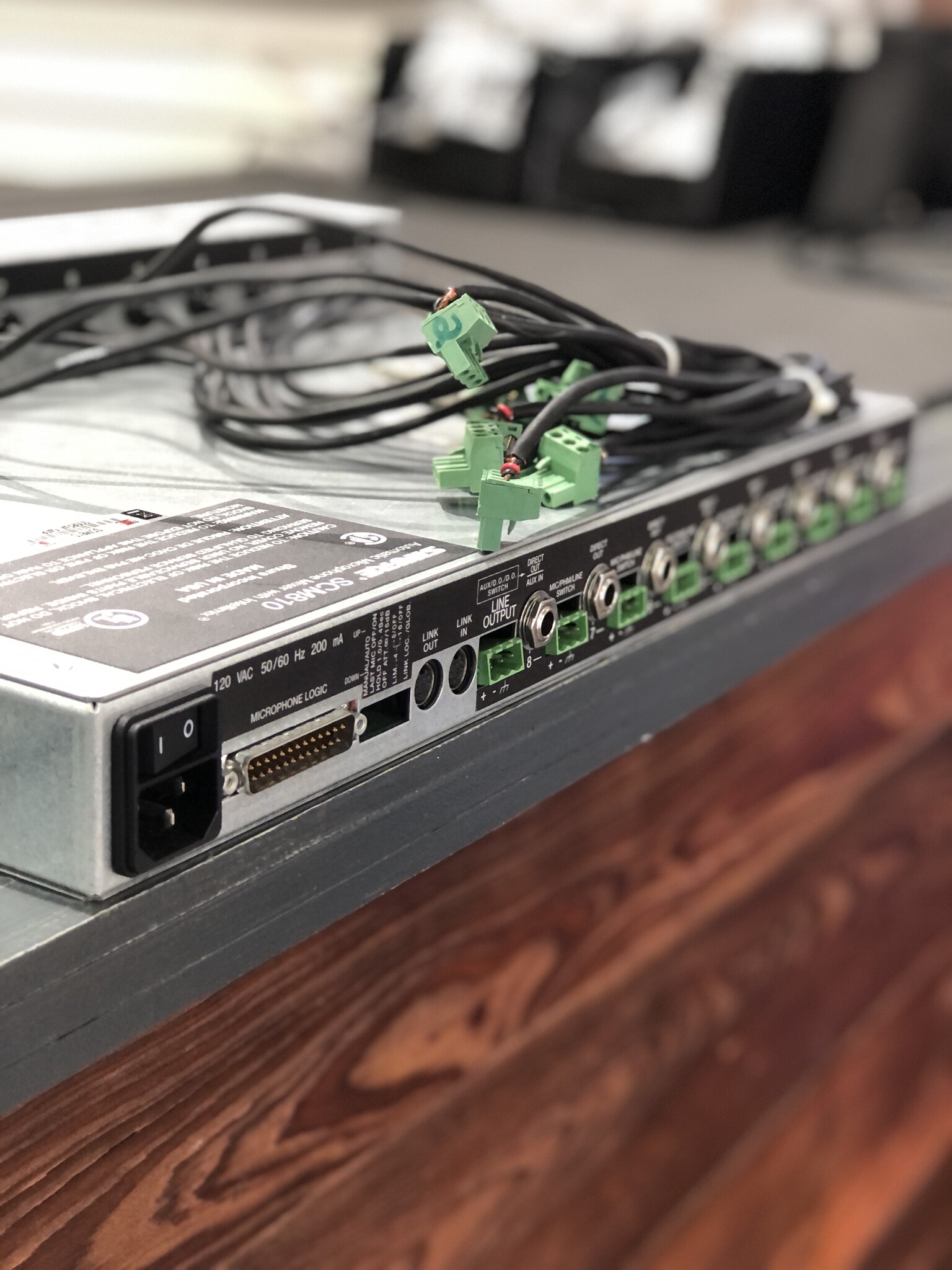

Each input channel has a two-band equalizer and three logic terminals. The equalizer reduces unwanted low-frequency audio pickup and makes different microphone types-lavaliers, boundary and handheld-sound similar. The logic terminals can be used to control external devices. The SCM810 operates on 120 Vac power; the SCM810E operates on 230 Vac power. Each mixer is supplied with a power cord, rack-mounting hardware, and a link cable.

System Features

• Fast-acting, noise-free microphone selection that automatically adjusts to changes in background room noise
• Automatic gain adjustment as additional microphones are activated
• Last Mic Lock-On circuit that maintains ambient sound
• Adjustable low-frequency rolloff and high-frequency shelving for each channel
• Channel activation and clipping indicators
• Peak-responding output limiter with selectable thresholds and LED indicator
• Active balanced mic/line inputs and line/level output
• Aux-level input with manual level control
• Front-panel headphones output with level control
• Linking capability for up to 400 microphones

XLR connector kit connects XLR and phonograph pin connectors to SCM810 and SCM800 Microphone Mixers.

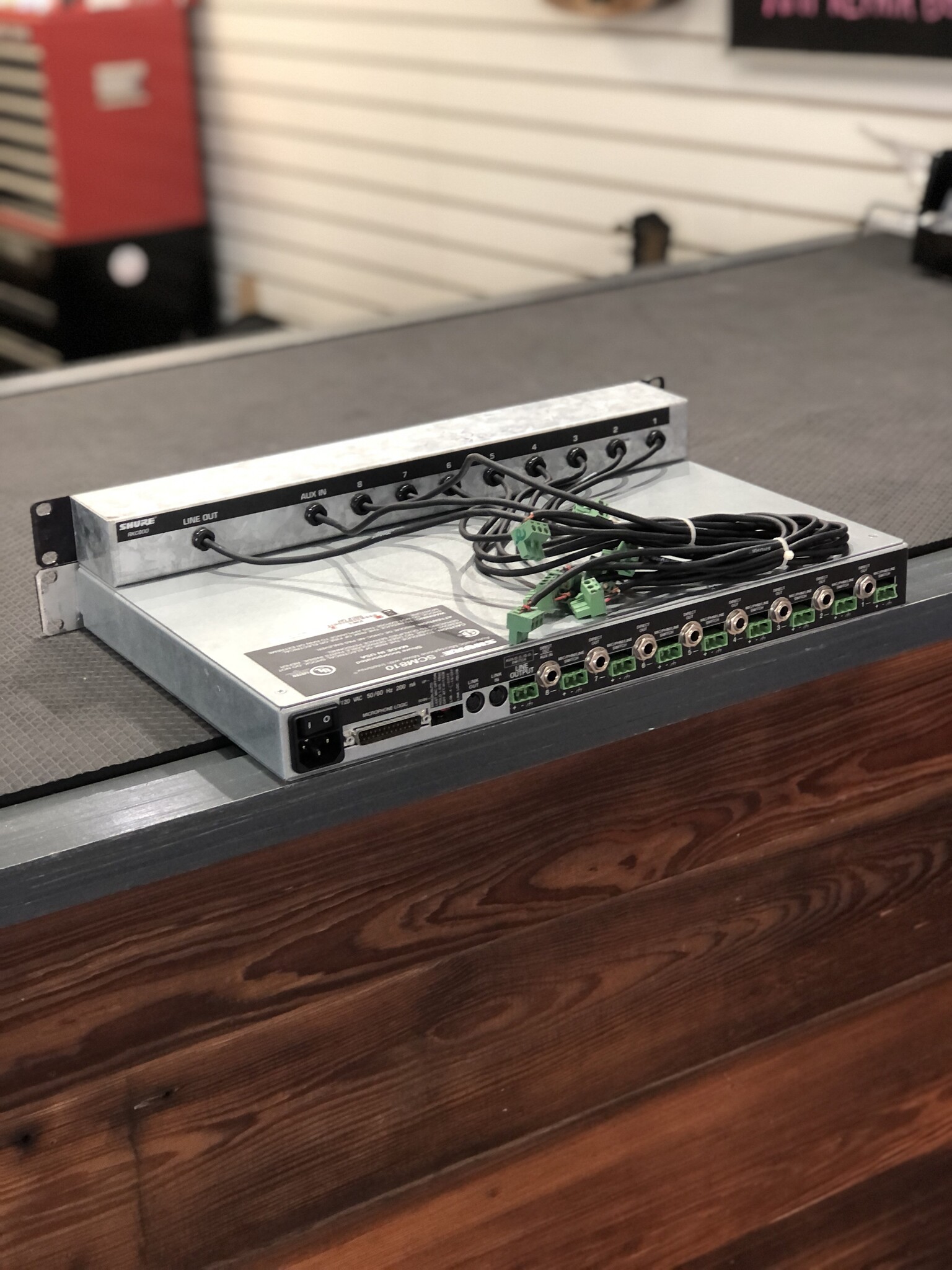

Use the Shure RKC800 XLR Connector Kit to connect XLR and phono pin connectors to Shure SCM810 and SCM800 Microphone Mixers. The RKC800 occupies a single rack space in a standard 483 mm (19-inch) width audio equipment rack. Its front panel contains eight latching XLR input connectors, two XLR output connectors, and gold-plated Aux In and Aux Out (two each) phono jacks. Input connectors from the RKC800 are hardwired, and Aux and Line Out connectors contain resistive circuitry (see Figure 2). Connecting cables are 61 cm (24 in.).

Specifications

Aux Output Impedance (actual)

2 kΩ

Line Output Impedance (actual)

200 Ω

Aux Input Level

-10  dBV nominal

Aux Output Level

-10  dBV nominal

Dimensions

44.5  mm x 483  mm x 66.7  mm (1/ x 19 x 2/in.) (H x W x D)

Net Weight

1.45 kg (3  lbs 3  oz.)
