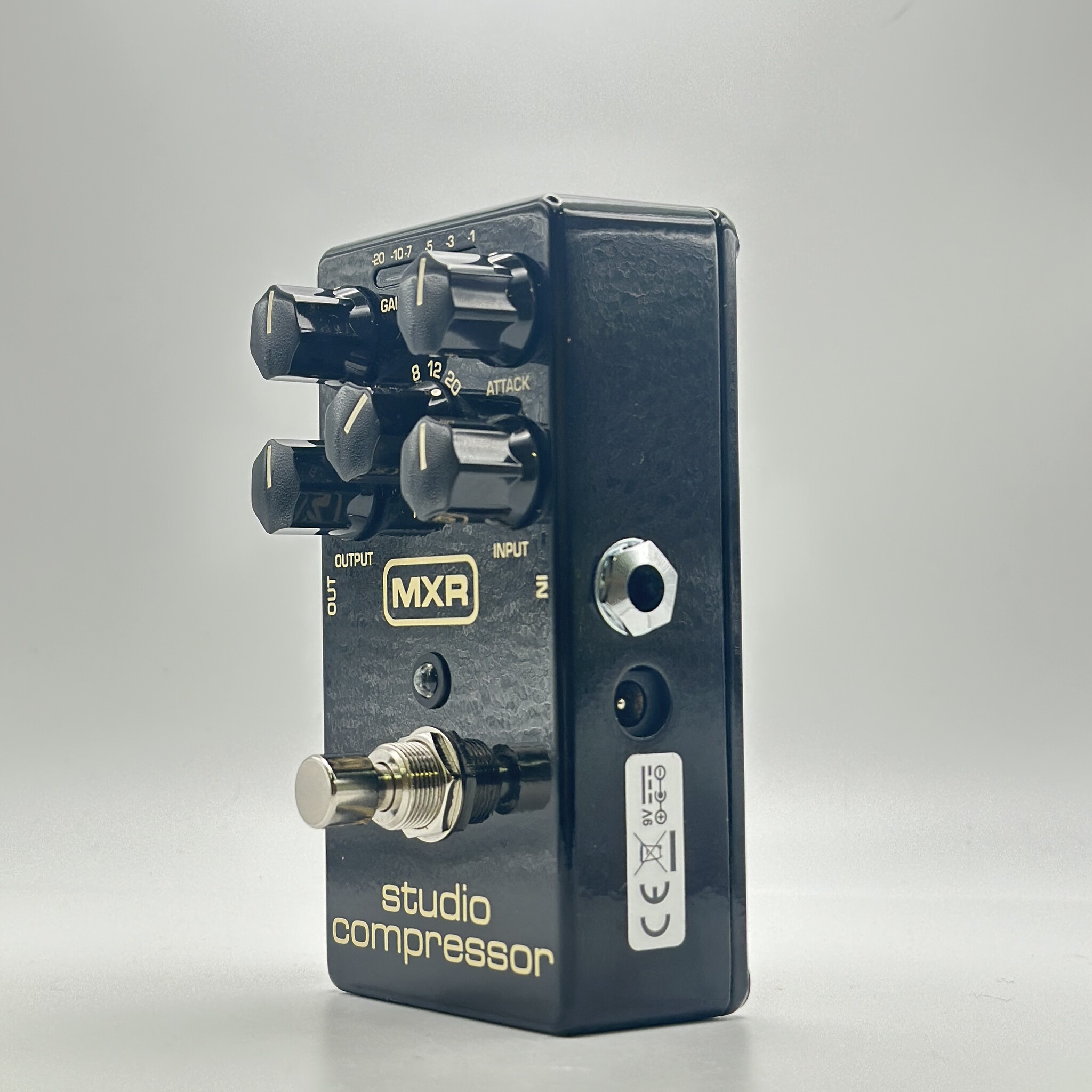

MXR M76 Compressor

This pedal is used but fully functioning. Includes the original box. Here's more info from MXR:

The Studio Compressor provides recording-quality compression with Constant Headroom Technology™ and true bypass switching for clear, clean performance.

The MXR design team took a classic recording studio fixture and stuffed it into a pedalboard-friendly box. The Studio Compressor features Attack, Release, Ratio, Input, and Output controls so you can fine-tune your compression level—from subtle to squashing—right on stage with visual feedback from a bright LED gain-reduction status meter. Constant Headroom Technology provides tons of headroom for clear, transparent performance that's as dynamic as you need it to be. It's all packed into a durable, lightweight aluminum-housing that's the size of a Phase 90.

SPECIFICATIONS

• Input Impedance 1 MΩ
• Output Impedance 600 Ω
• Max Input Level +14 dBV
• Max Output Level +8.5 dBV
• Frequency
• Response
• ±1 dB, 20 Hz
• to 20 kHz
• Noise Floor* -90 dBV
• THD** < 0.5%
• Gain 31 dB
• Compression Ratio 4:1, 8:1,
• 12:1, 20:1
• Attack Time 20 μs to 800 μs
• Release Time 50 ms to 1.1 s
• Bypass True Hardwire
• Current Draw
• LEDs OFF 14 mA
• LEDs ON 19 mA
• Power Supply 9 volts DC (not included)
