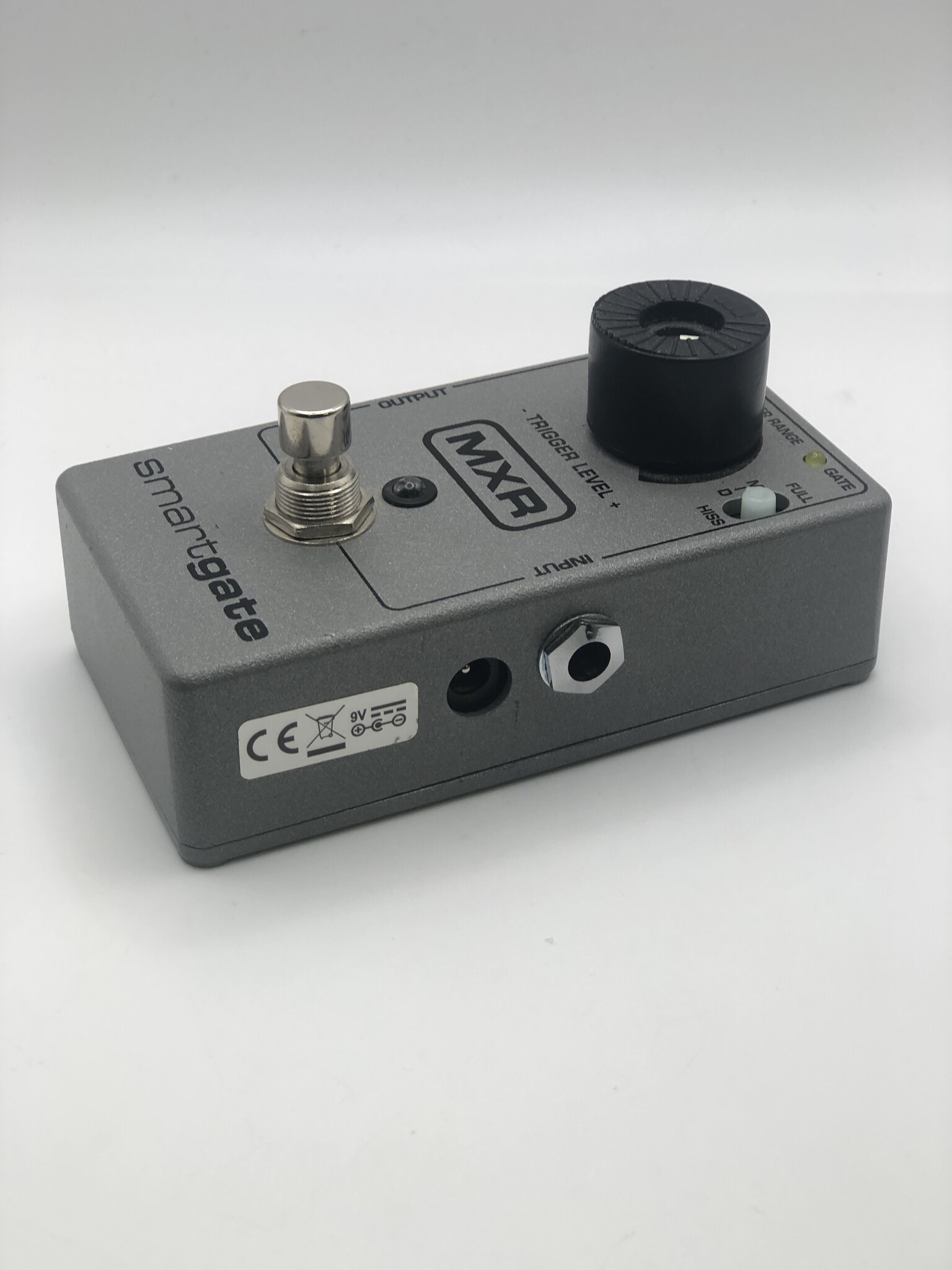

MXR M135 Smart Gate

This pedal is used but overall very clean. Includes the original box. No power supply is included. Here's more info from MXR:

Equipped with three selectable types of noise reduction—Hiss, Mid, and Full—the Smart Gate Noise Gate bites down on sizzle and hum while still allowing your playing nuances through.

This pedal can be powered by a 9-volt battery, a Dunlop ECB003 9-volt adapter, or the DC Brick™, Iso-Brick™, and Mini Iso-Brick™ power supplies (not included).

Tame your hissing high-gain amp or silence your string of stompboxes with this ingenious pedal. The Smart Gate is equipped with three selectable types of noise reduction to handle virtually any type of signal. It bites down on sizzle and hum but lets the smallest detail of your playing through. With its uncanny ability to sense precisely when—and how fast—to engage, this little genius will never get in your way, so you can wring every last bit of sustain out of that chord without being cut off. The M135 features a hardwire bypass, precise threshold trigger, and amazingly clean circuitry.

SPECIFICATIONS

• Input Impedance 1 MΩ
• Output Impedance 1 kΩ
• Maximum Input Level +7dBV
• Maximum Output Level +7dBV
• Noise Floor*
• Gate Closed -105 dBV
• Gate Open
• HISS -100 dBV
• MID -100 dBV
• FULL -96 dBV
• Frequency Response
• Gate Open +0/-1 dB, 20 Hz to 20 kHz
• Gate Closed
• HISS -3 dB at 1 kHz
• -22 dB at 20 kHz
• MID -3 dB at 500 Hz
• -23 dB at 20 kHz
• FULL -36 dB at 60 Hz
• -22 dB at 500 Hz
• -23 dB at 20 kHz
• Bypass Hardwire
• Current Draw 15 mA
• Power Supply 9 volts DC
