Lexicon Lexicon PCM 70 Digital Effects Proccesor

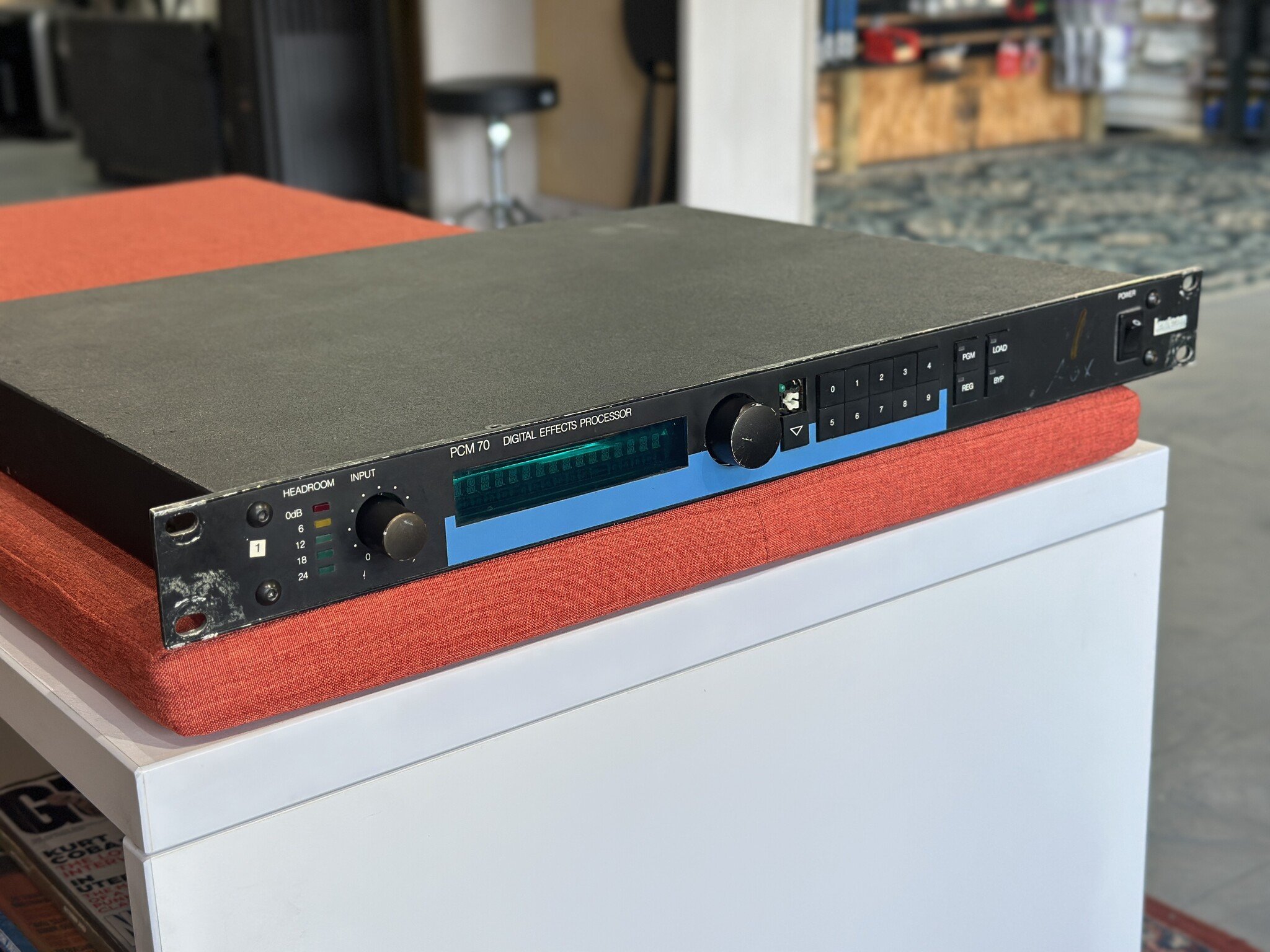

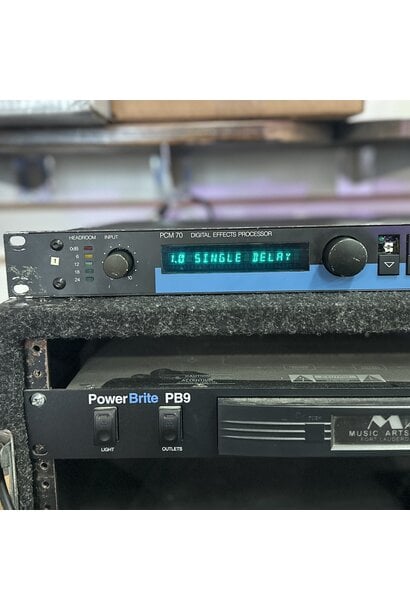

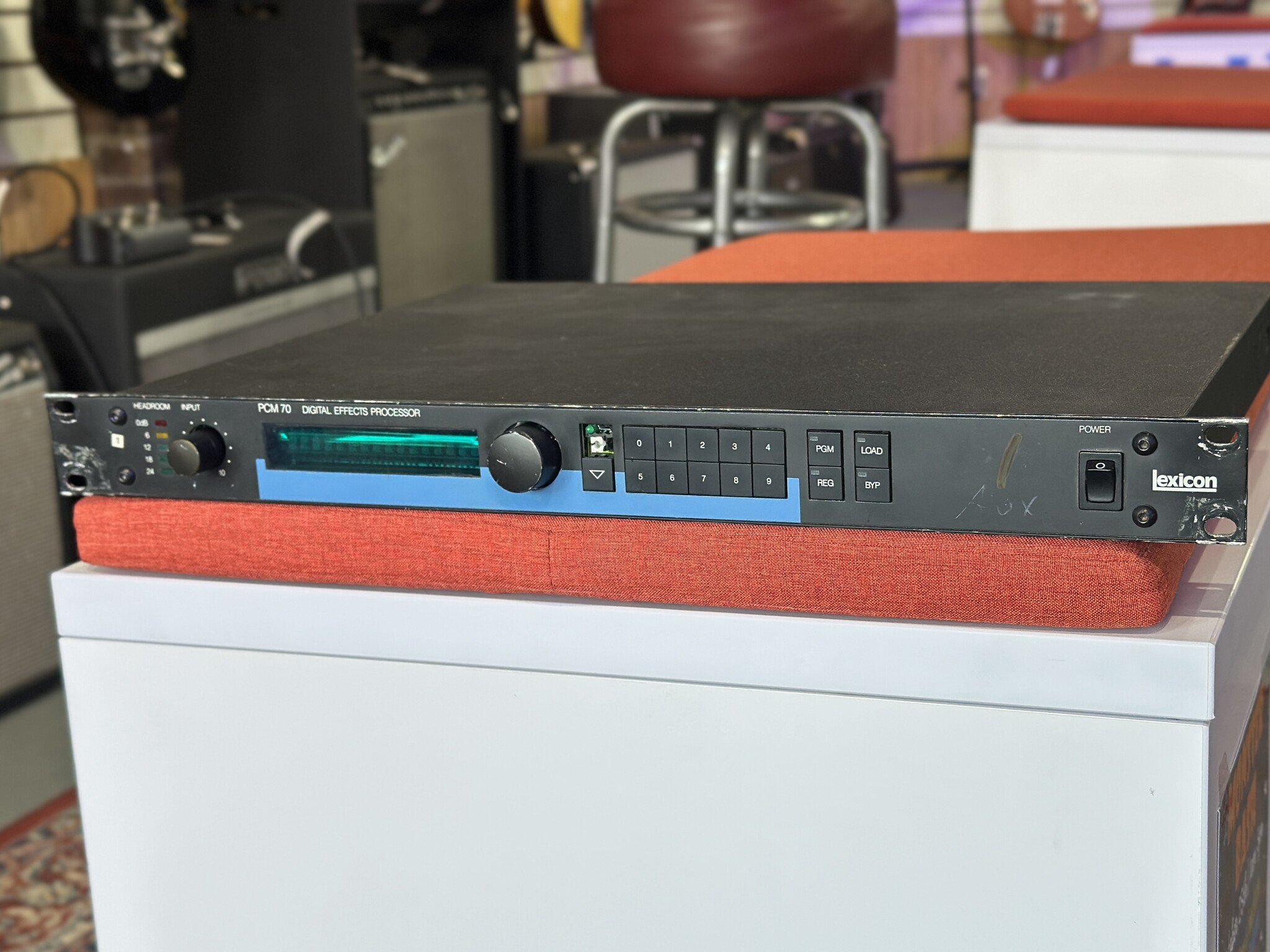

In the shop we have a used Lexicon PCM 70 Digital Effects Processor!

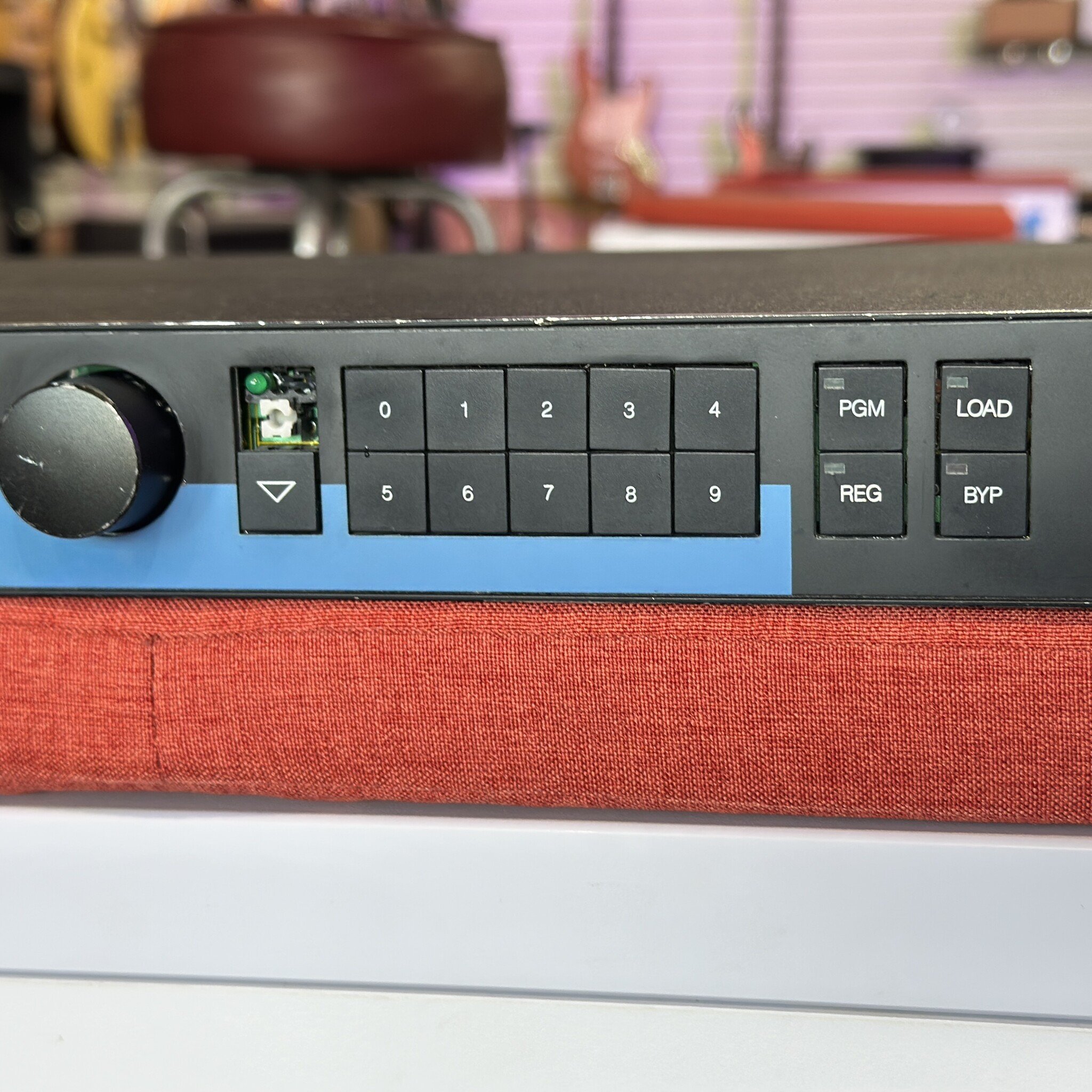

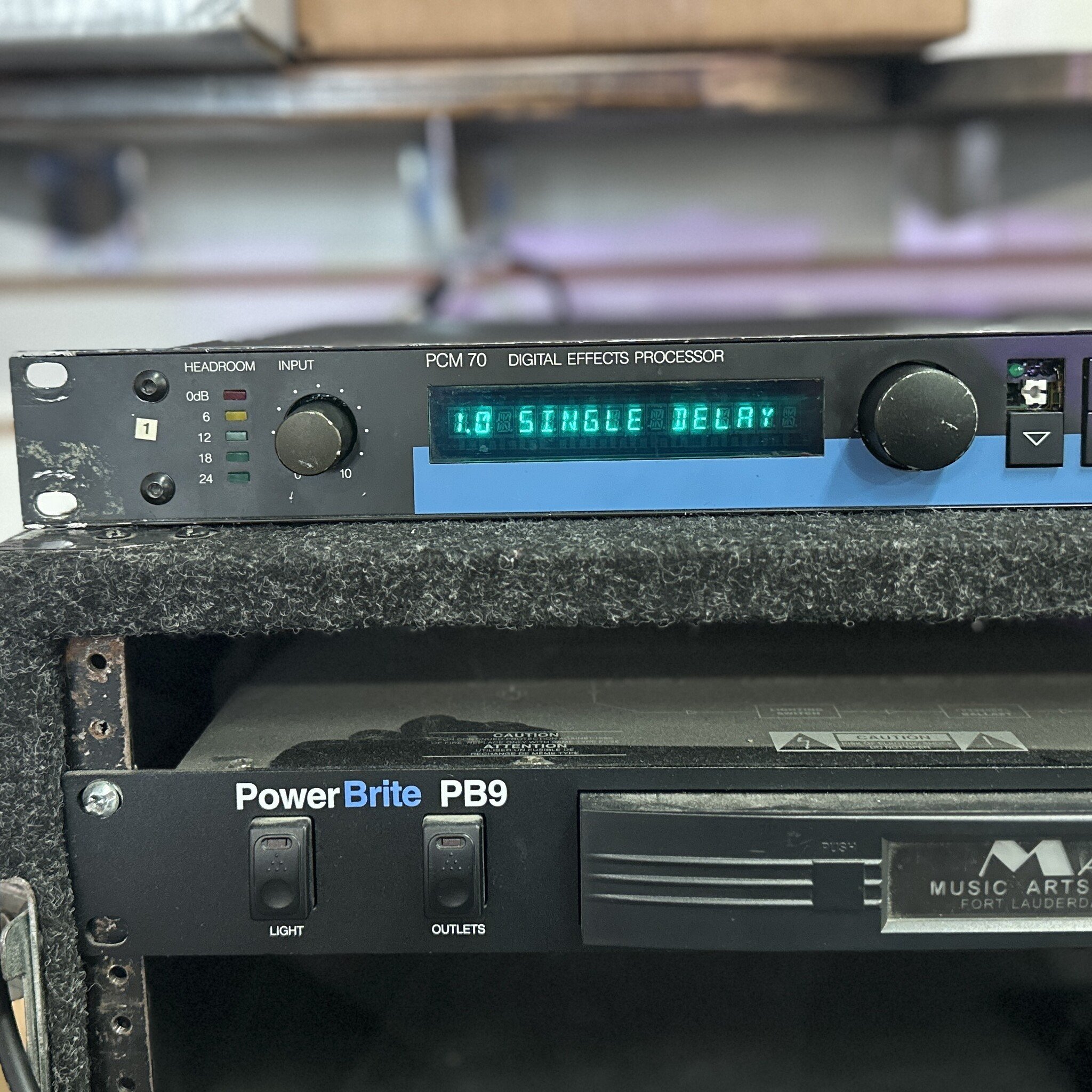

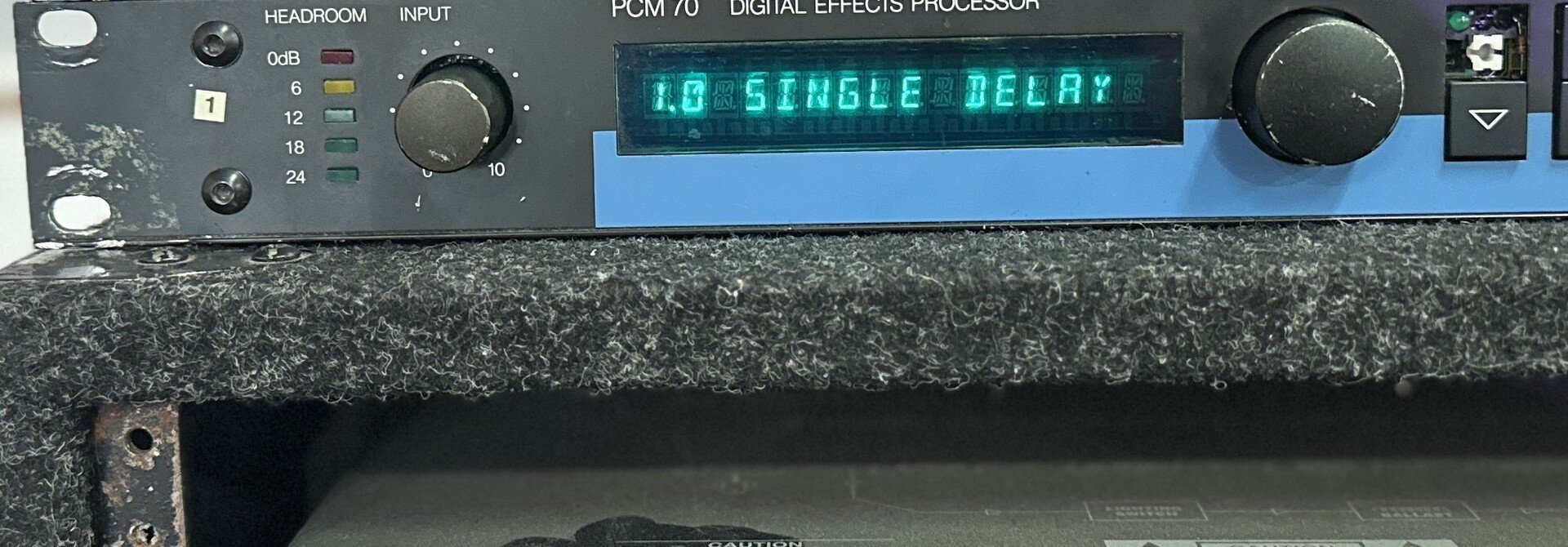

This unit came to us with a broken screen and selection knob. We replaced the screen with the correct part, then replaced with knob with a similar part. The knob now functions, but but changes every 4th click rather than every click.

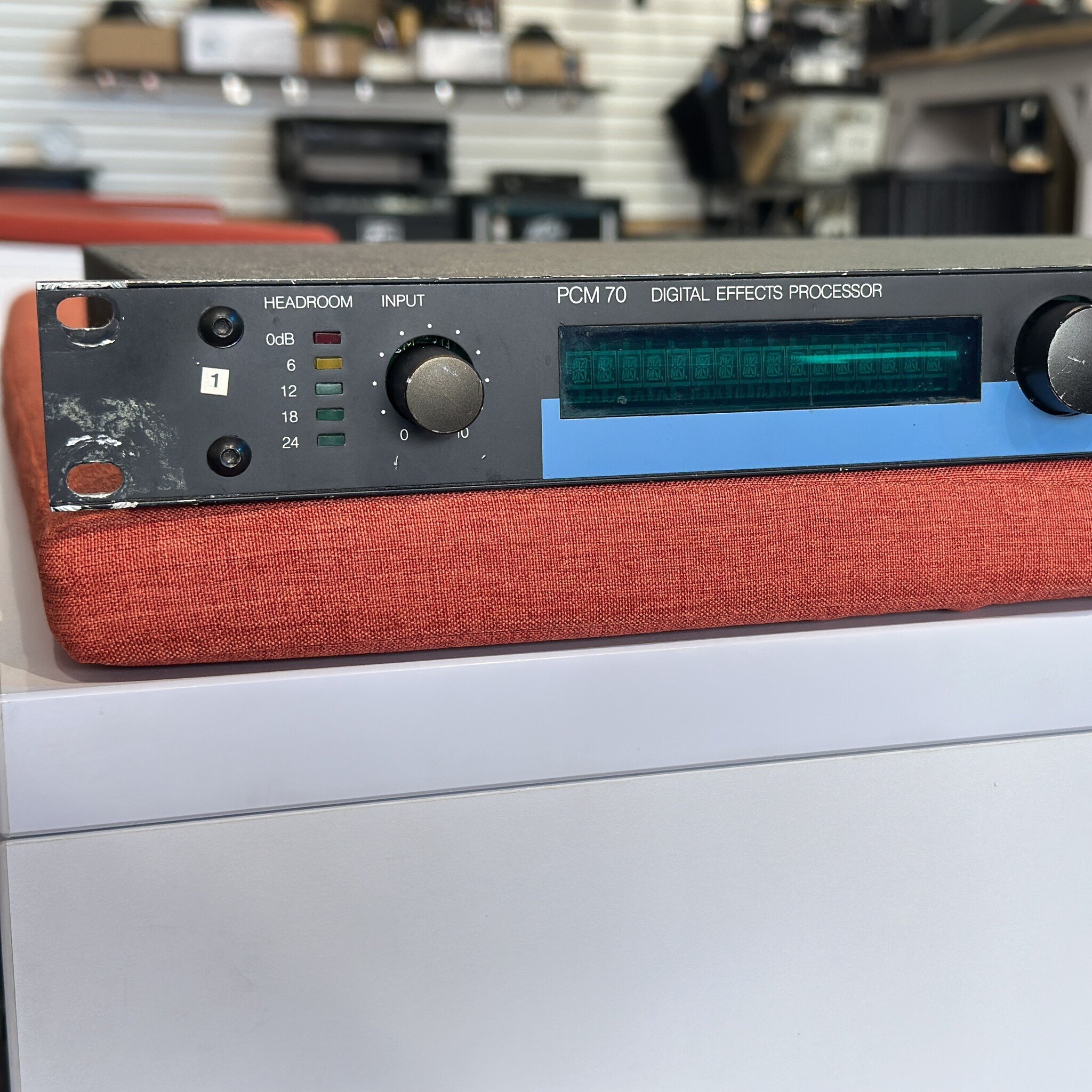

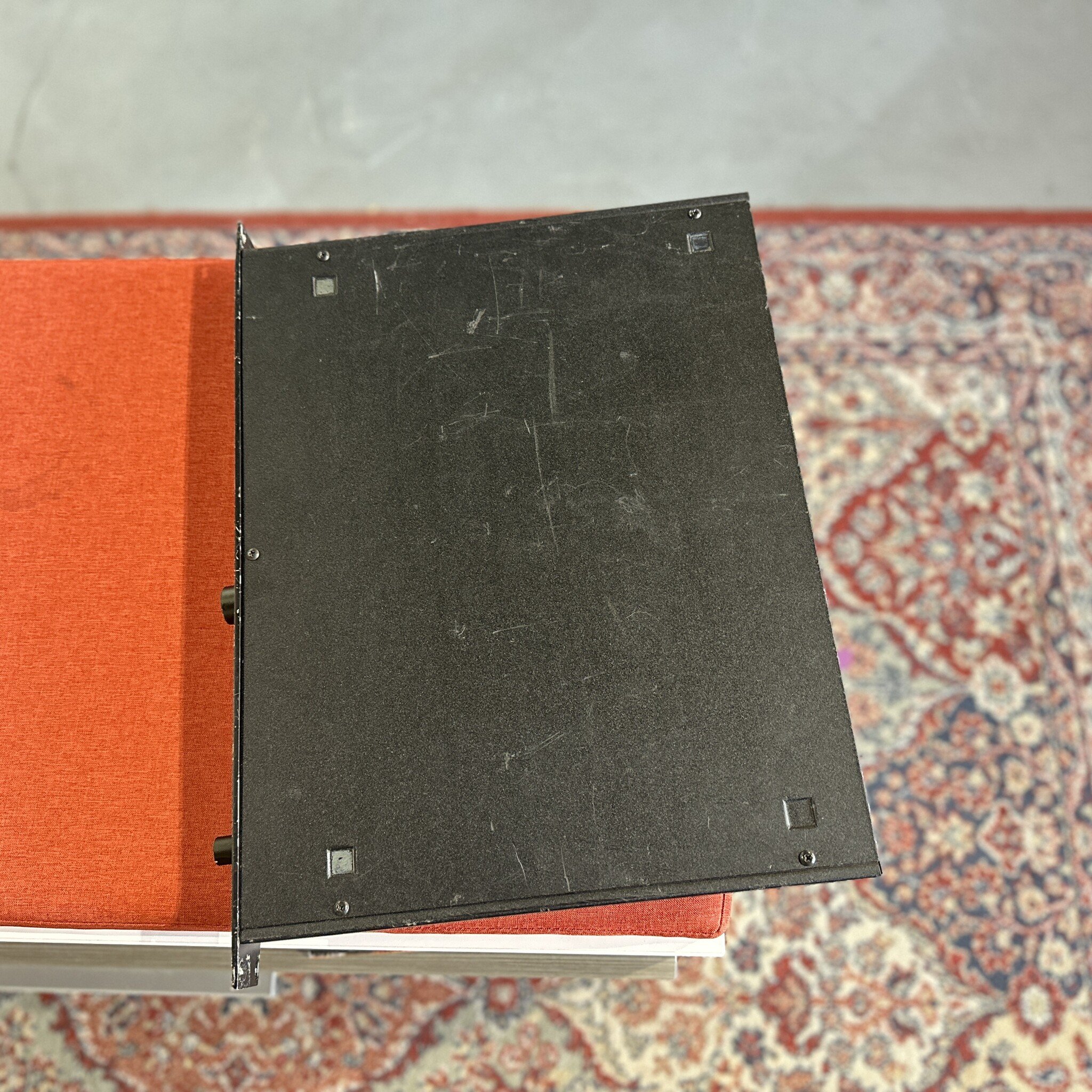

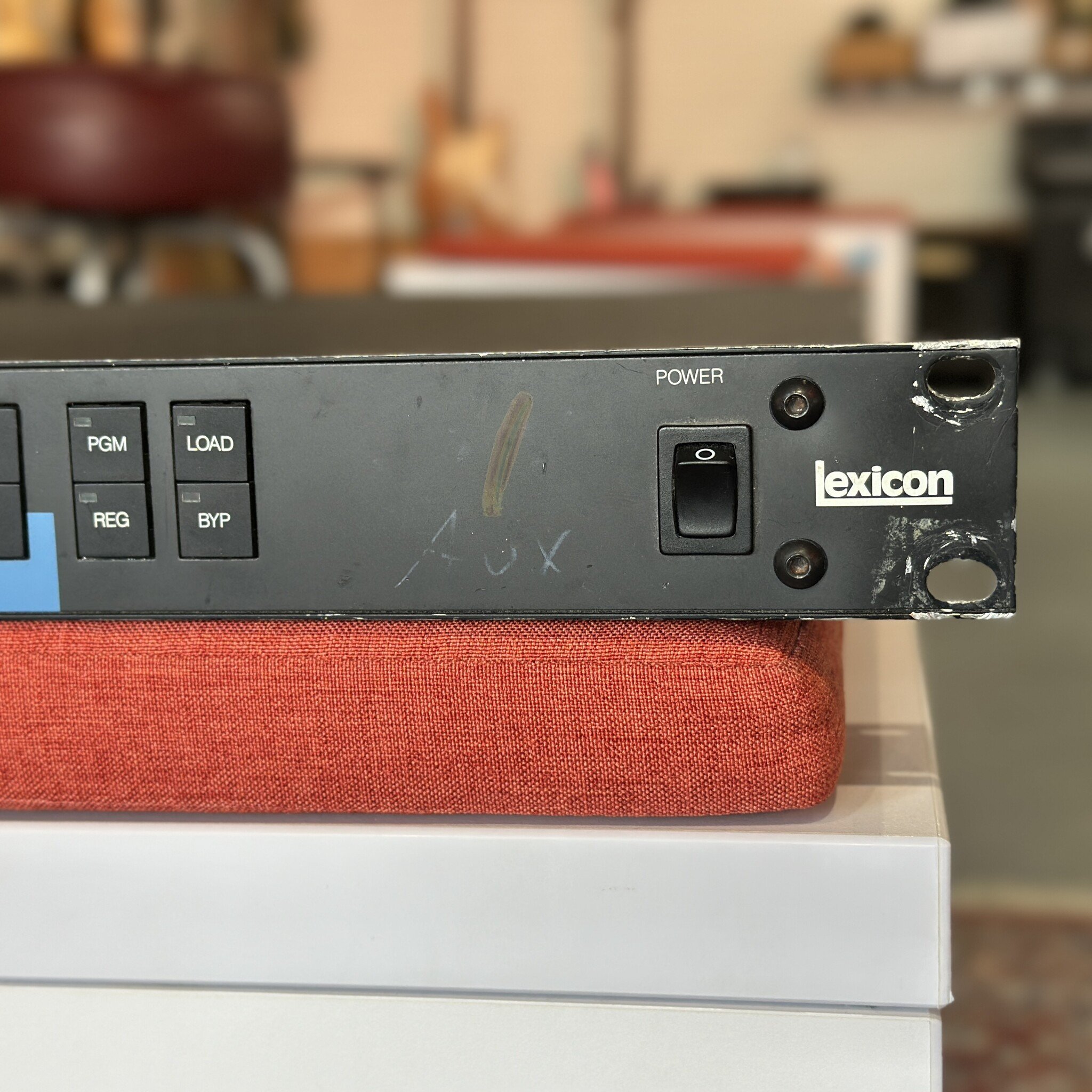

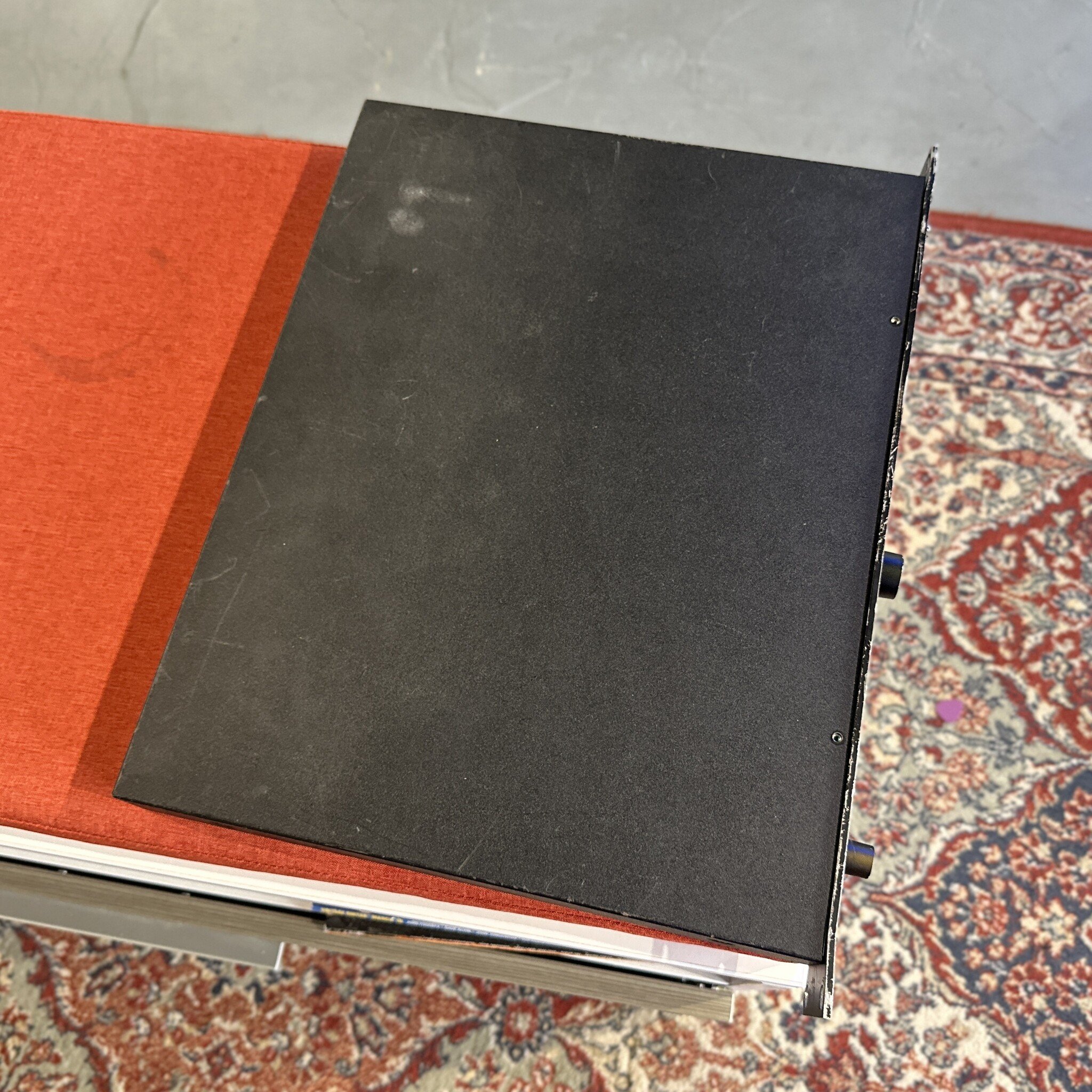

The unit has some damage to the mounts, but is still functional. Our best guess is this was dropped on its face, then not repaired until we got it.

The stereo effects that come from this unit are incredible! Fantastic Reverbs, Delays, Chorus and more!

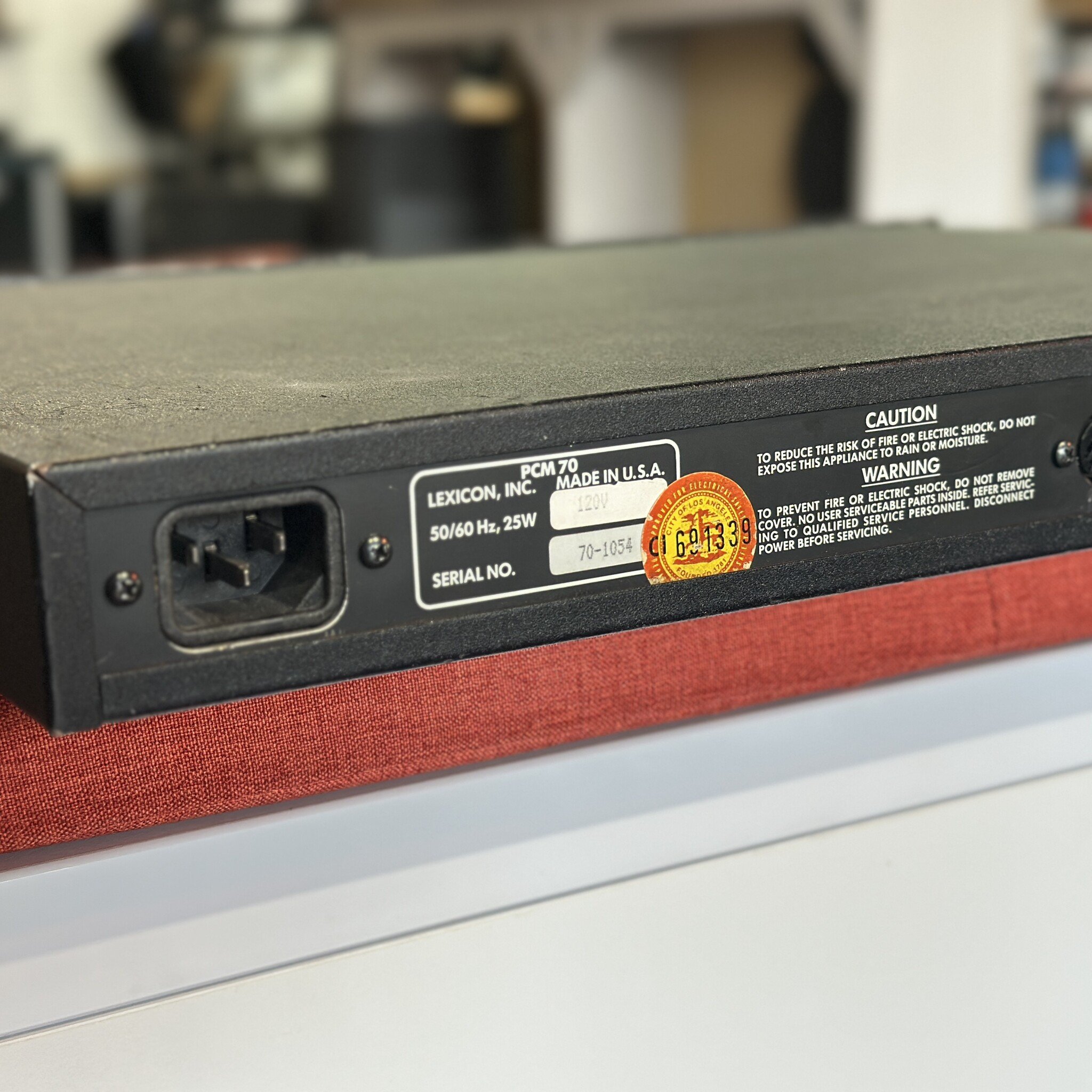

Includes IEC Cable, does not include external switches or case.

Here's more from Lexicon:

"The Lexicon PCM 70 Digital Effects Processor gives you access to the same astonishing digital effects used by the world's top artists and studios - all in a compact single-space rack mount unit.

The Lexicon PCM 70 offers more than 40 digital effects and reverb programs, including chorus and echo, resonant chords, multiband delays, rich chamber, rich plate, and concert hall. Add to these the 50 programs you can create and store in user registers, and you have instant access to more than 90 programs.

If creative control is what you are after, more than 70 different parameter types can be edited to produce just the sound you need. Everything from delay times to feedback, filters, panning, and early reflections.

Great sounds are only half the story. The Lexicon PCM 70 introduces revolutionary MIDI capabilities that will change forever the way the world uses effects. Lexicon's Dynamic MIDI gives you real-time remote control over up to ten different parameters at the same time from a MIDI keyboard or sequencer.

You can patch any effects or reverb parameter to any variable MIDI controller on your synthesiser-modulation wheel, pitch wheel, data entry slider, sustain switch, and others. You can also patch parameters to vary with MIDI events like key velocity, pressure, or aftertouch.

The Lexicon PCM 70 offers more than 40 digital effects and reverb programs, including chorus and echo, resonant chords, multiband delays, rich chamber, rich plate, and concert hall. Add to these the 50 programs you can create and store in user registers, and you have instant access to more than 90 programs.

If creative control is what you are after, more than 70 different parameter types can be edited to produce just the sound you need. Everything from delay times to feedback, filters, panning, and early reflections.

Great sounds are only half the story. The Lexicon PCM 70 introduces revolutionary MIDI capabilities that will change forever the way the world uses effects. Lexicon's Dynamic MIDI gives you real-time remote control over up to ten different parameters at the same time from a MIDI keyboard or sequencer.

You can patch any effects or reverb parameter to any variable MIDI controller on your synthesiser modulation wheel, pitch wheel, data entry slider, sustain switch, and others. You can also patch parameters to vary with MIDI events like key velocity, pressure, or aftertouch.

If you have a sequencer, control changes sent to the Lexicon PCM 70 from your keyboard or controller can be recorded and repeated perfectly-every time. A corresponding register feature lets you choose effects or reverb programs remotely, from sequencers, synthesisers, and other MIDI devices. To top it all off, an innovative and uncomplicated user interface ensures that you can access all of this power quickly and easily."

Specifications

Released in: 1985

Made in: U.S.A.

Frequency Response

Processed Signal: 20 Hz to 15 kHz, ±1 dB

Direct Signal: 20 Hz to 20 kHz, ±0.25 dB

Dynamic Range

Processed Signal: 80 dB, 20 Hz to 20 kHz noise bandwidth

Total Harmonic Distortion and Noise

Processed Signal: <0.05% @ 1 kHz and full level

Direct Signal: <0.025% @ 1 kHz @ 3V out

Audio Input

Levels:

+4 dB; -8 to +18 dBV balanced

-20 dB; -23 to +3 dBV unbalanced

Impedance:

+4 dB; 40 kilohms, paralleled with 150 pF (balanced)

-20 dB; >500 kilohms, paralleled with 150 PF (unbalanced)

Connector: 1/4" tip/ring/sleeve phone jack

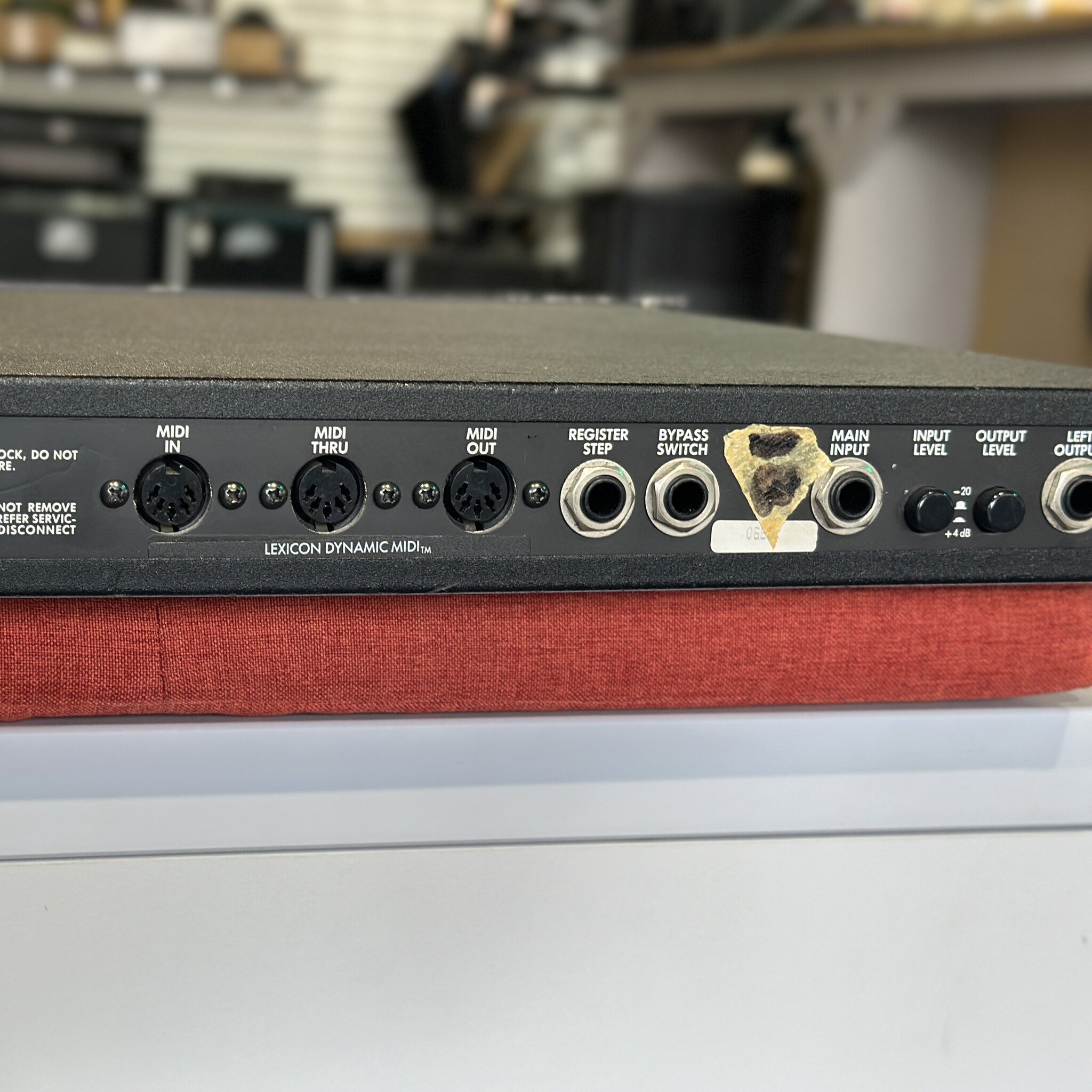

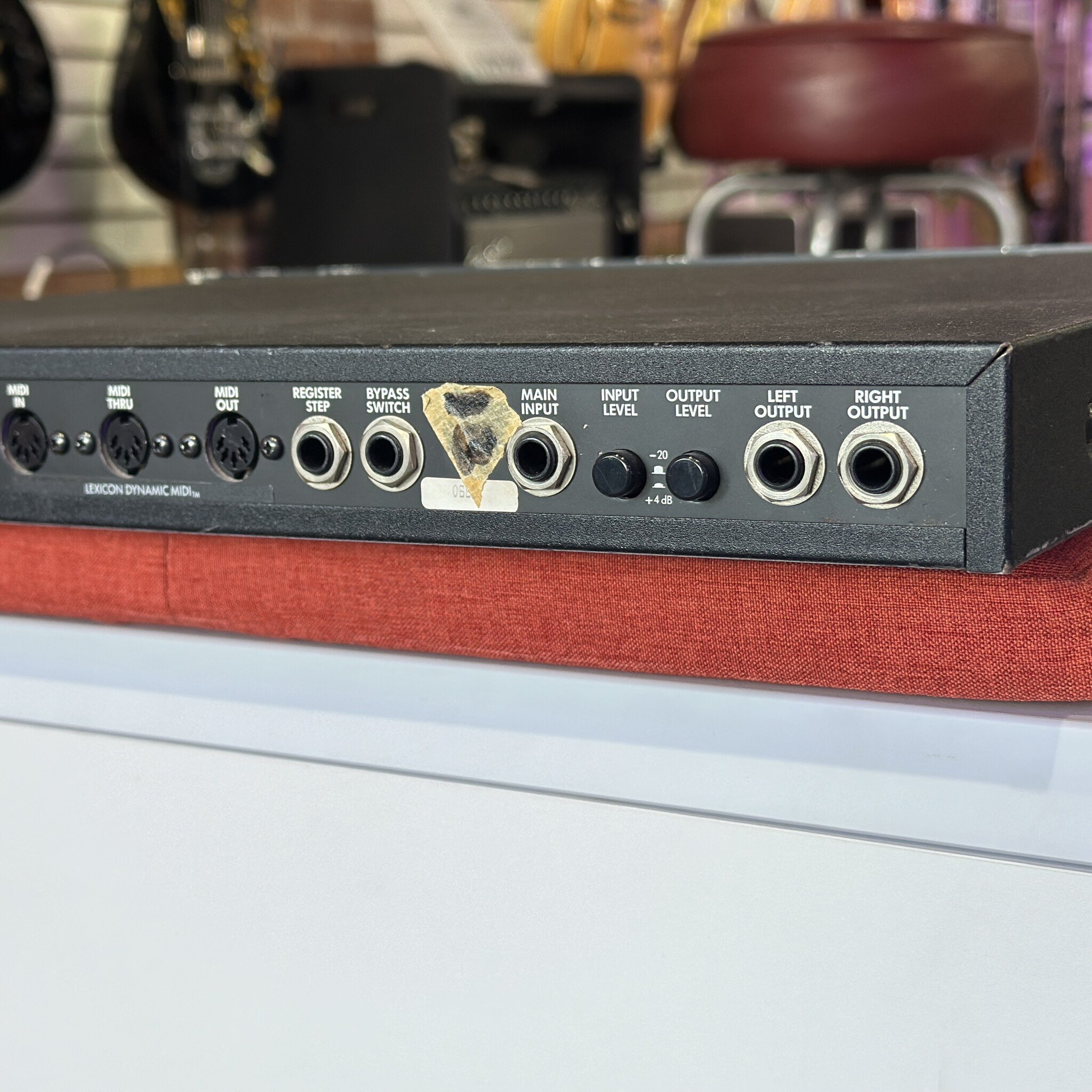

Audio Outputs (Two)

Levels:

+4 dB; +10 dBV into 600 ohms

+16 dBV into > 10 kilohms

-20 dB; -8 dBV into > 10 kilohms

Impedance: 600 ohm unbalanced

Connectors: 1/4" tip/sleeve phone jack

Dimensions: 483mm x 45mm x 344mm

Weight: 4.9 kg
