journeytek JourneyTek Passive 3-piezo Pickup EP001K

In the shop we have an open box, never used JourneyTek Passie 3-piezzo acoustic pickup.

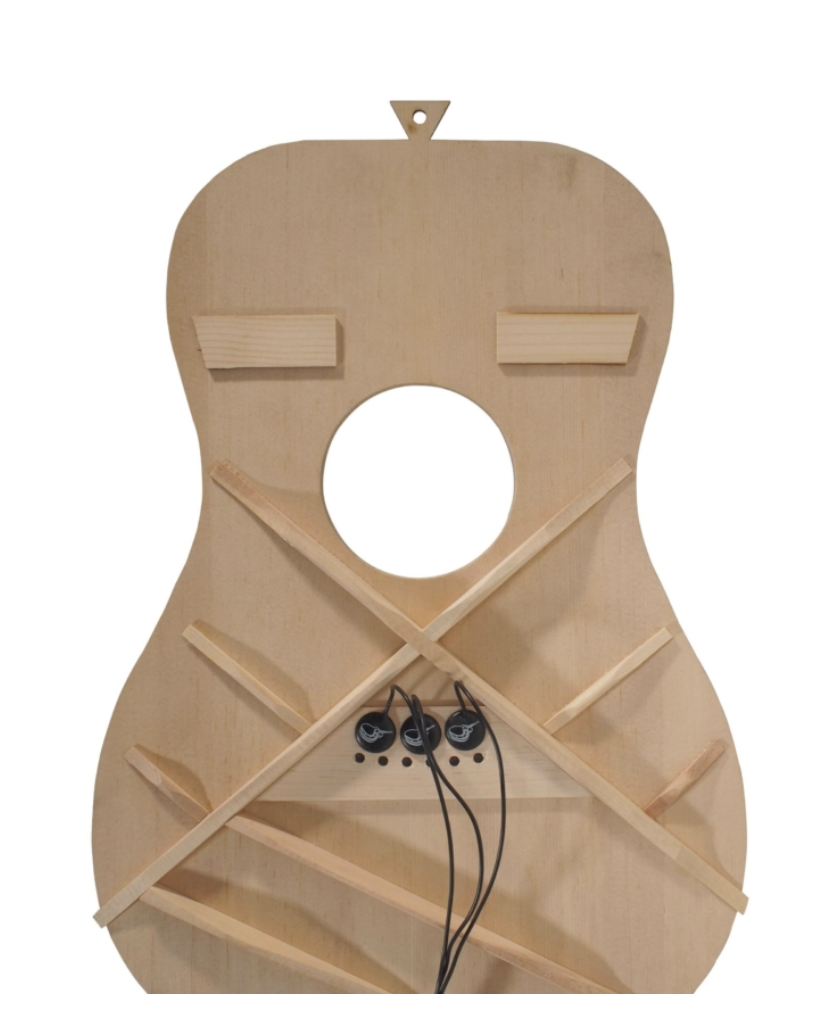

The EP-001K Passive piezo pickup is an elegant pickup solution for transparent tone to amplify the natural sound of your acoustic guitar. Installation requires no modification to your guitar apart from drilling the endpin jack hole and gluing the elements to the bridge plate. This new model can be upgraded without the use of tools to our new active stereo pickup that features a gooseneck microphone and these discrete sound hole controls: Master Volume, Balance, Bass, Treble, Phase. (Note: If installing on a guitar with narrow x-bracing under the saddle, such as a Martin Jr or Taylor GS Mini, we instead recommend you go with the EP101KM)

General Specs and Details:

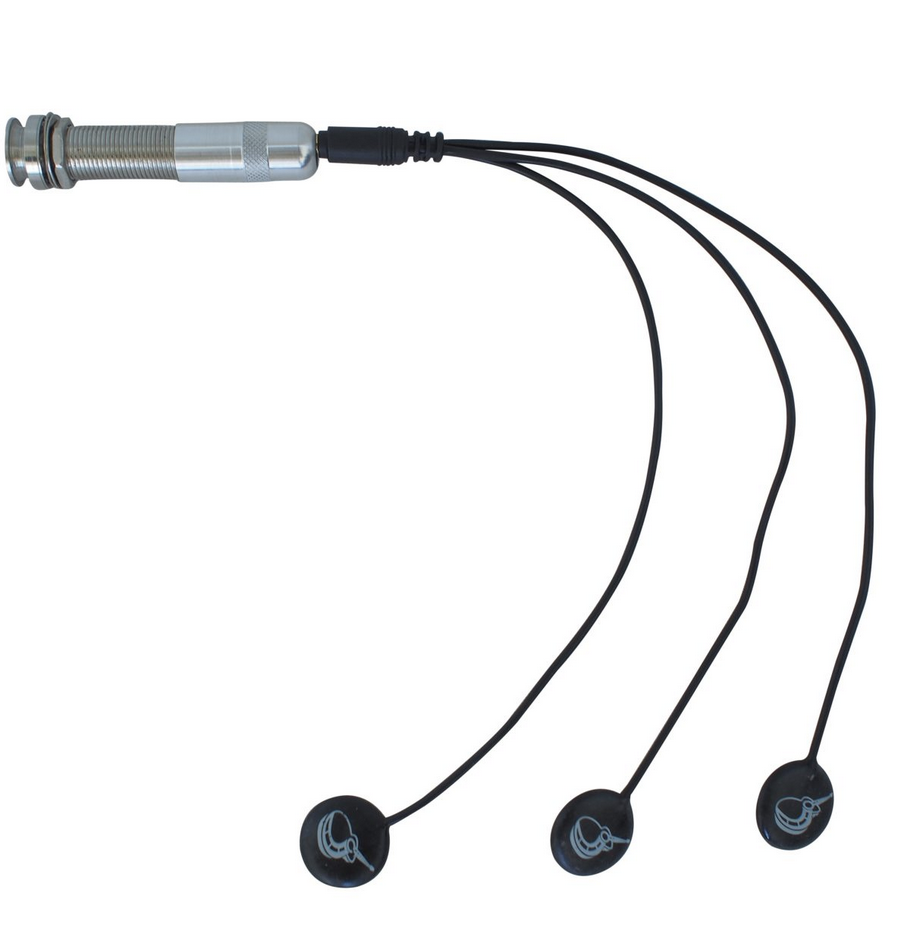

• 3 balanced German-made ceramic piezo elements – 20mm diameter
• Standard 1/4 inch (6.3mm) mono output jack
  • 2.5mm mono input jack from piezo elements
• no batteries needed
• length of wire from peizo element to pickup jack: 22cm
• frequency response 22Hz-18kHz
  • EADGBE guitar frequency range is E2 (82 Hz) to F6 (1,397 Hz)
• impedance under 1 MΩ
• Installation Guide Here: https://journeyinstruments.com/pickup-installation/
• NOTE: As this is an endpin jack, you may consider buying our Journey Guitar Strap which is slit to fit this endpin. Otherwise, you may need to enlarge the hole for your strap.
  • Strap Button Threads: 3/8-32 standard (if you need to replace the strap button)
  • Inner socket Threads: M12*0.75 metric (If you need to replace a nut for the pickup inner tube threads)
• UPC 643485843580
