Donner Yellow Fall Analog Delay

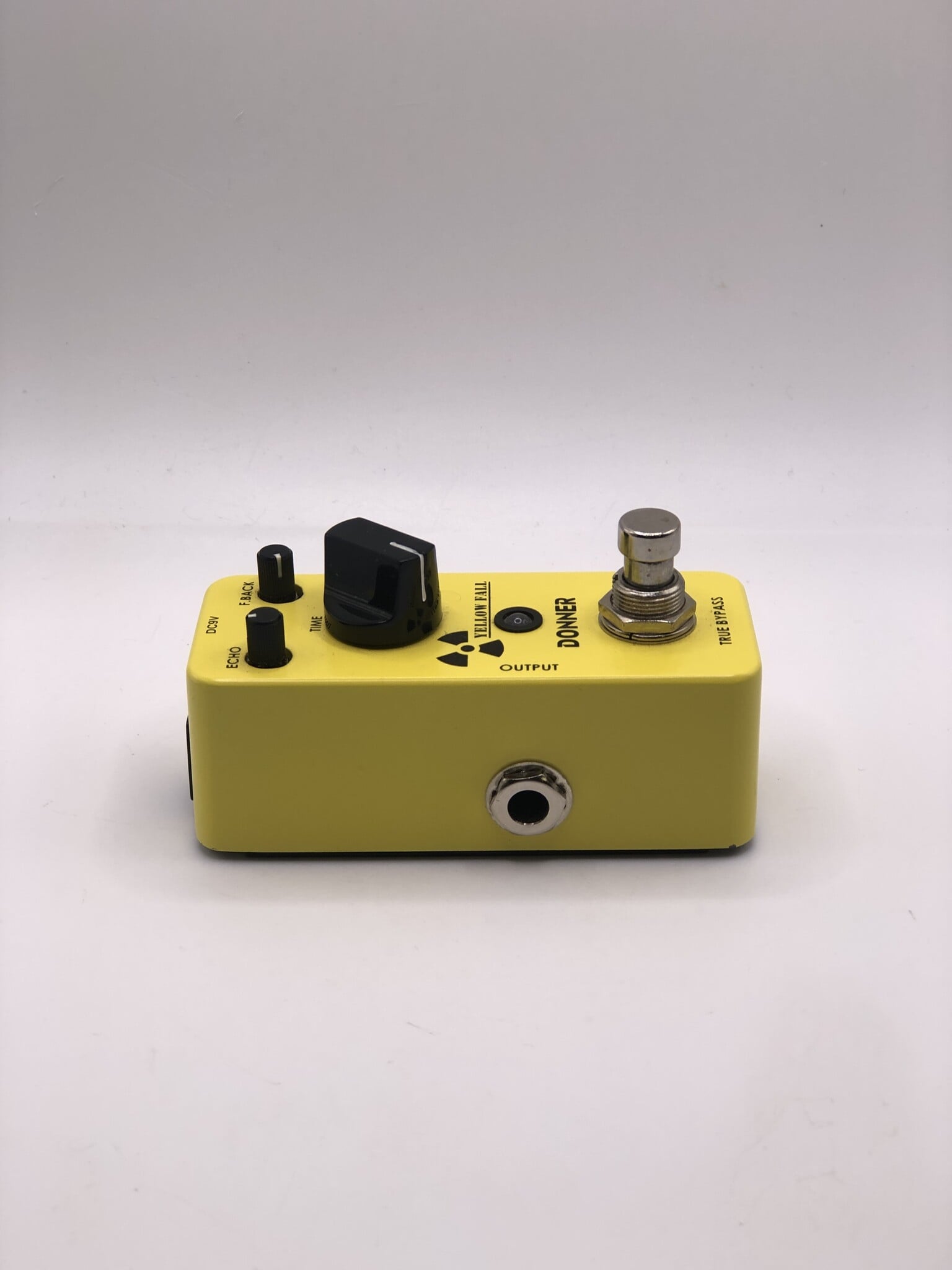

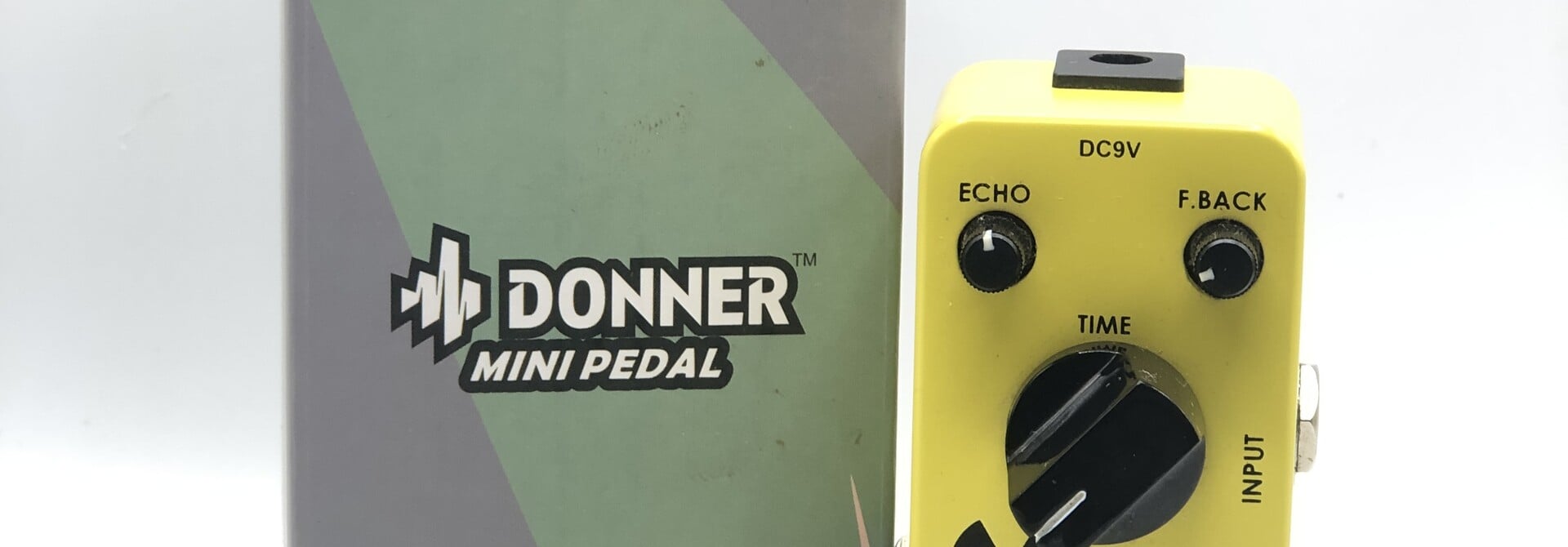

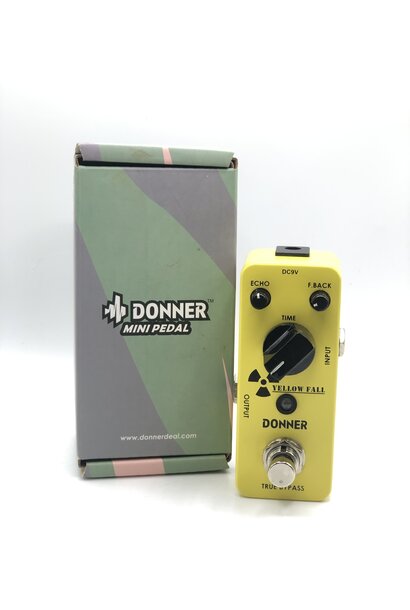

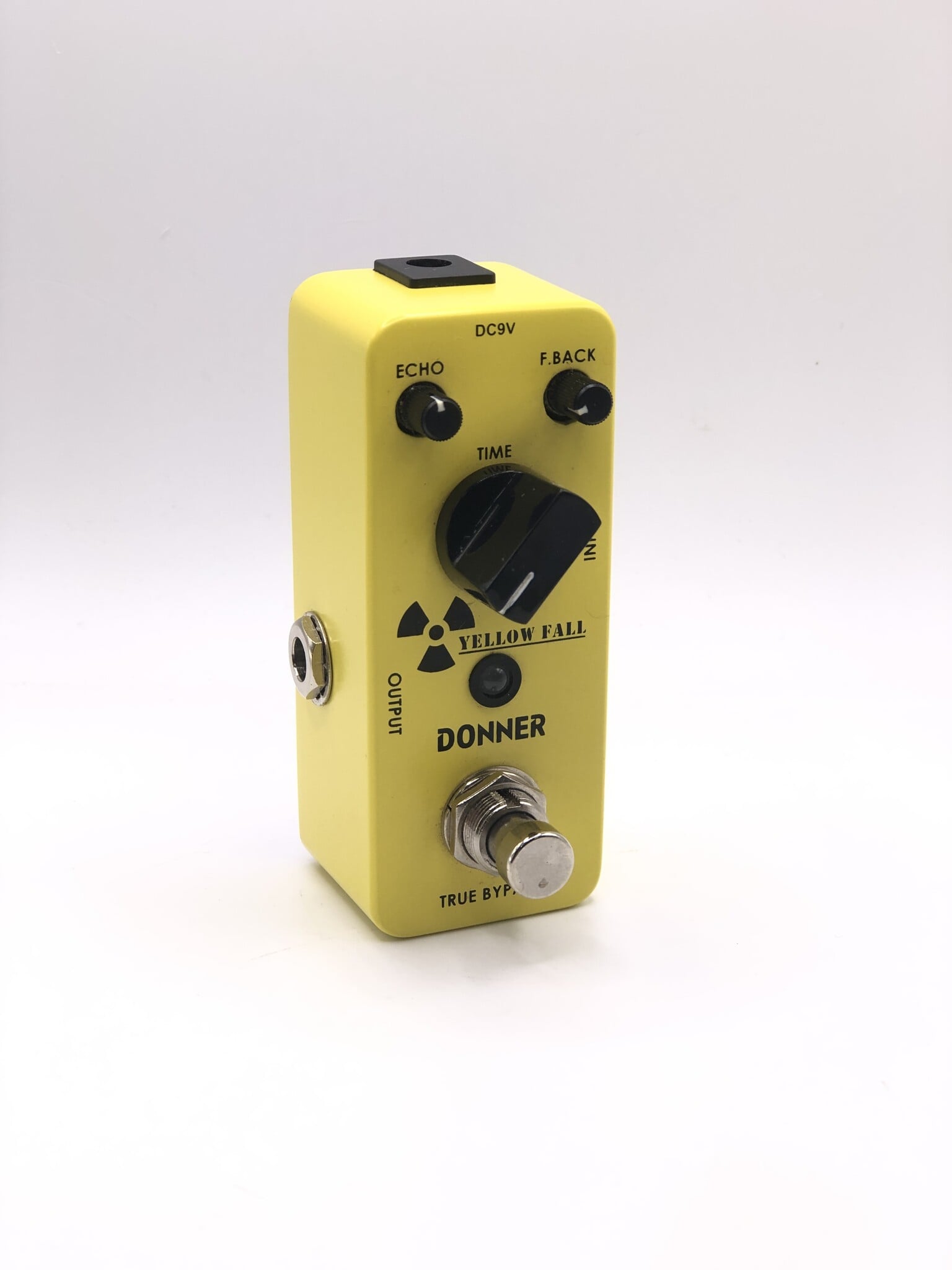

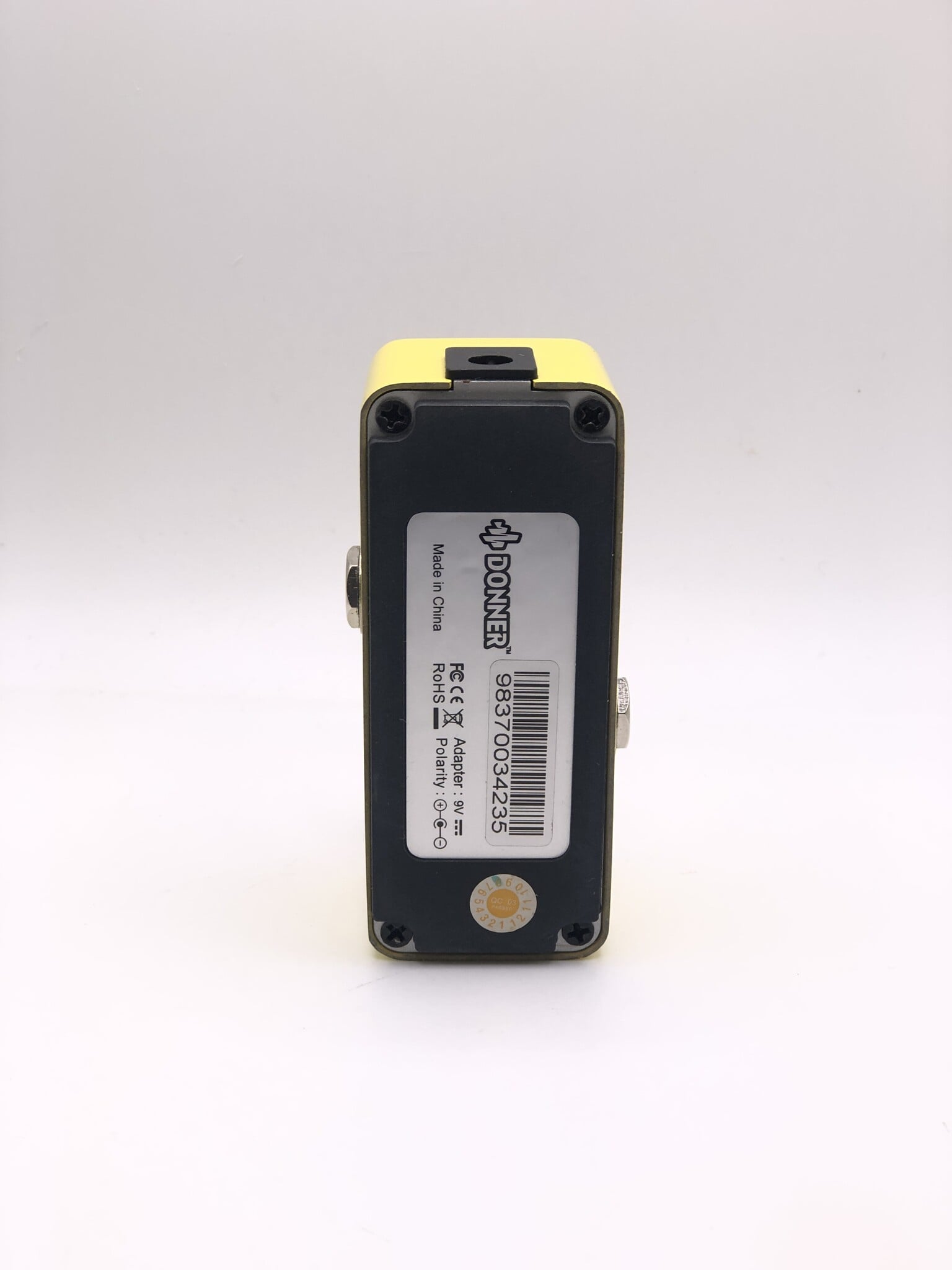

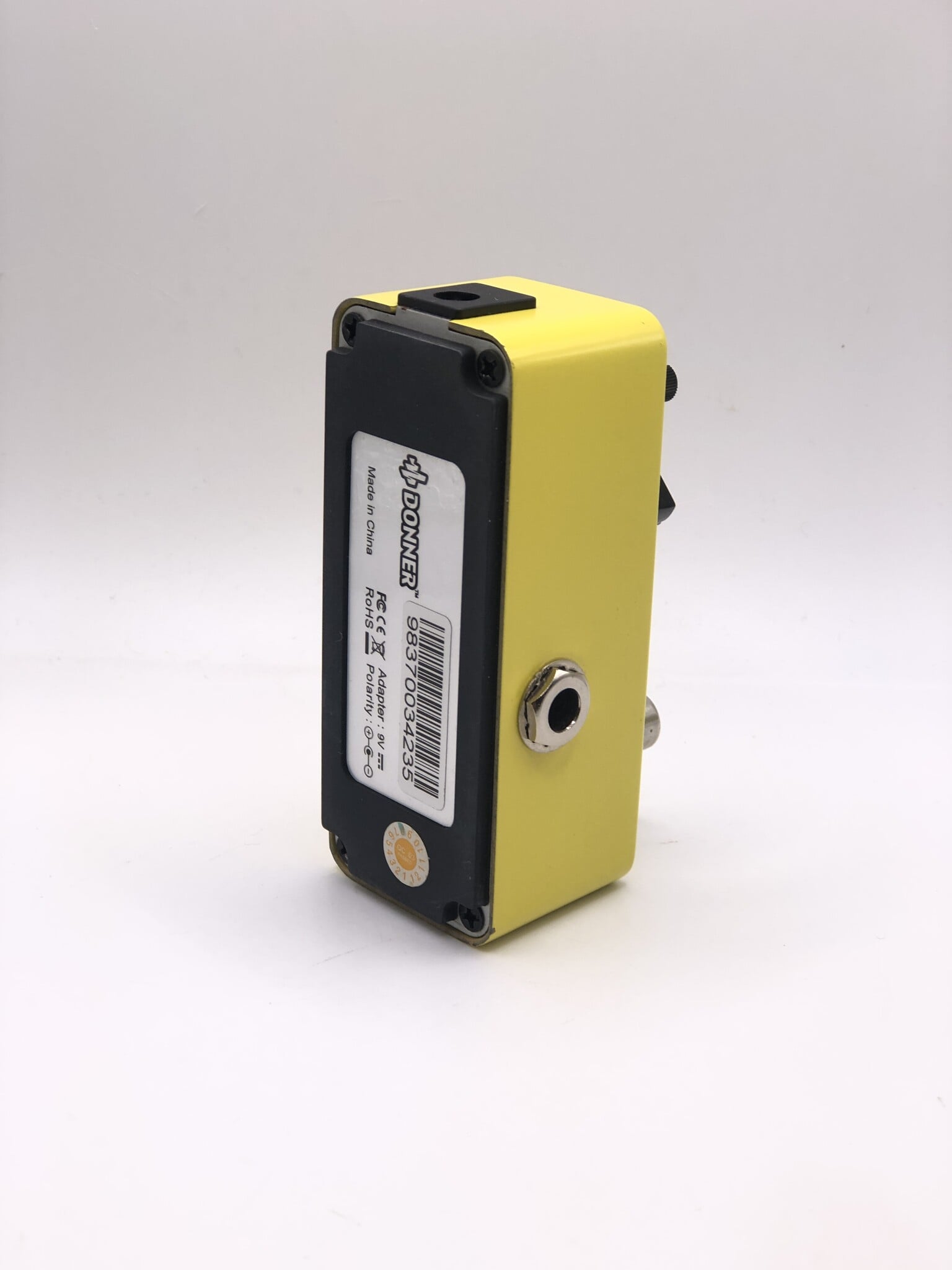

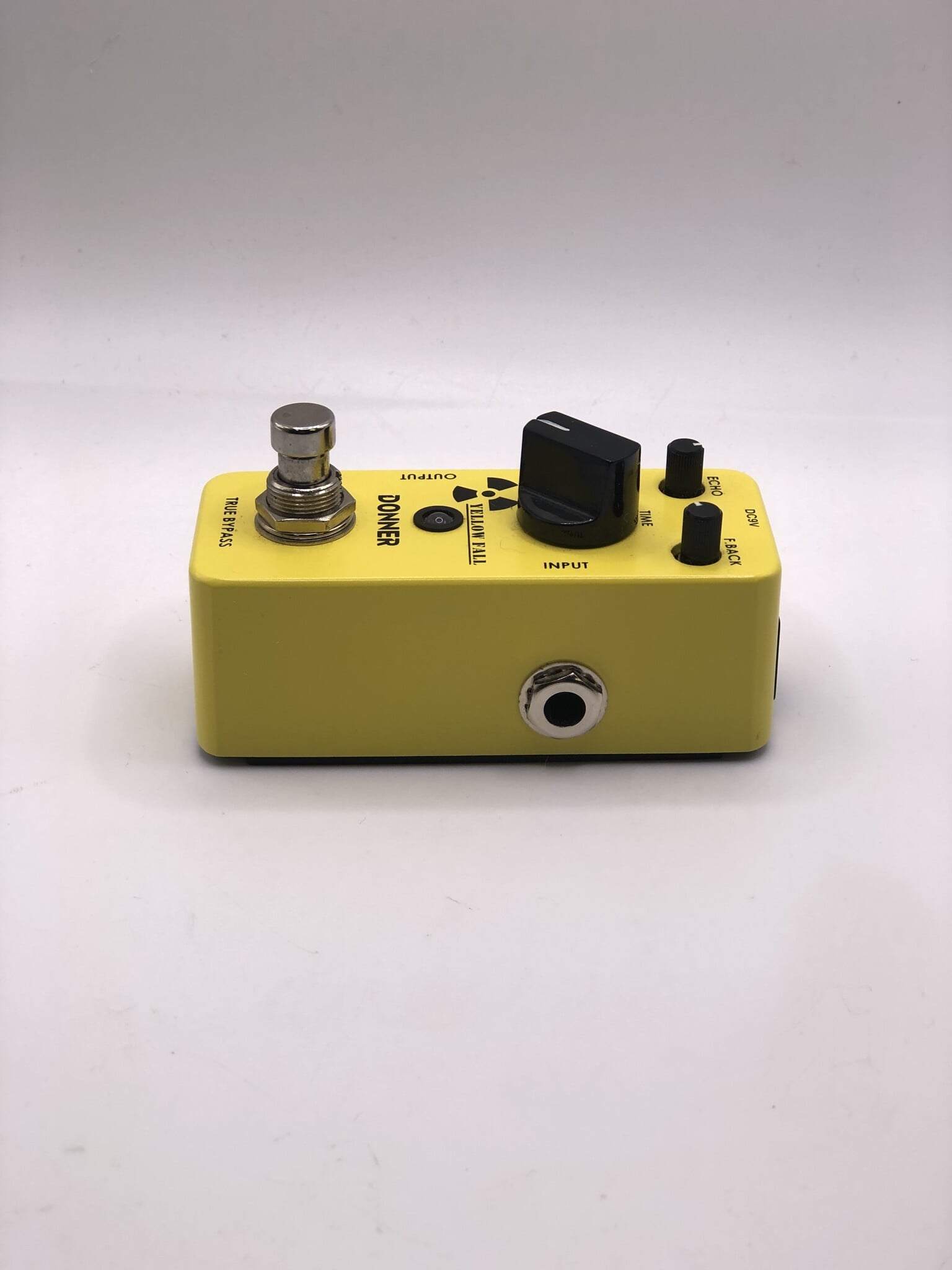

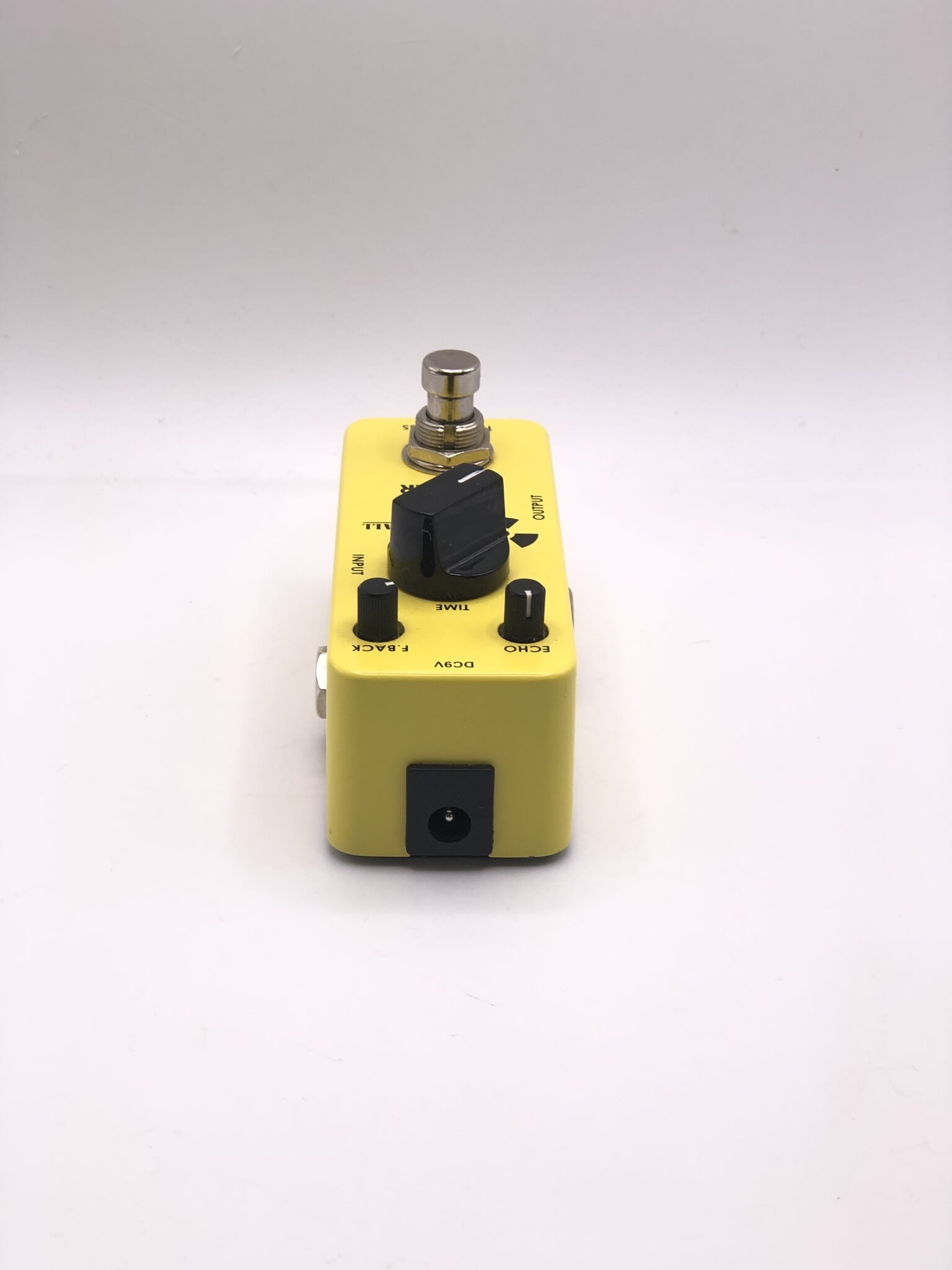

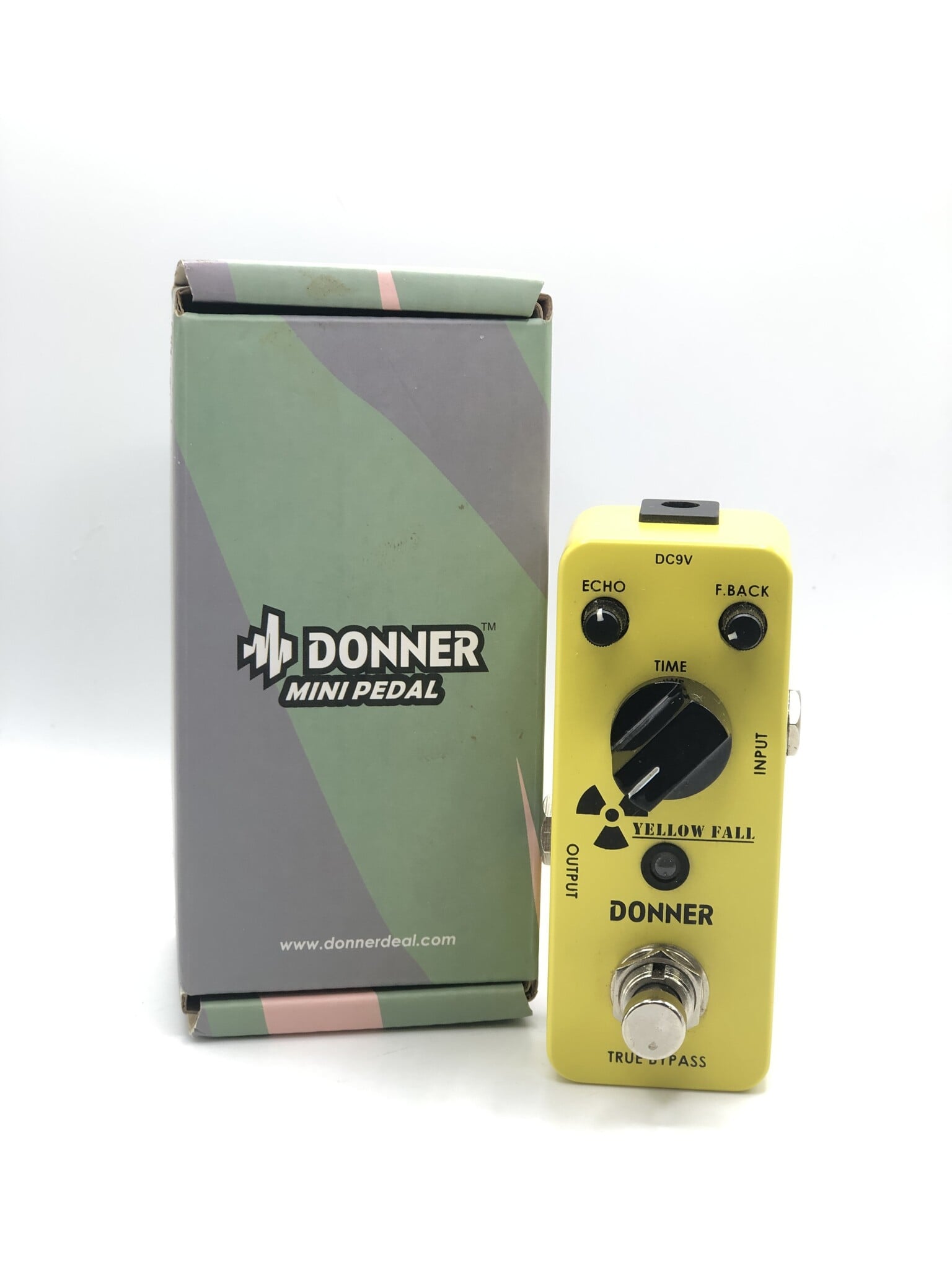

This pedal is used and shows some light signs of wear as pictured. This pedal has been tested and functions as it should, includes original box. Here's more info from Donner:

The Donner Yellow Fall (often referred to as the Yellow Fall 1) is a compact, pedalboard-friendly analog-voiced delay pedal. It is housed in a durable aluminum-alloy casing and features 3-knob controls and true bypass switching to maintain a transparent tone.

Core Specifications

• Delay Time Range: 20ms to 620ms
• Signal Format: Analog circuit design (provides warm, natural delay tones)
• Bypass: True Bypass
• Input Impedance: 1 M Ohms
• Output Impedance: 490 Ohms

Controls

• ECHO Knob: Adjusts the overall delay volume/level.
• F. BACK Knob: Adjusts the amount of feedback, dictating the number of repeats.
• TIME Knob: Adjusts the delay time (the gap between repeats) from 20ms up to 620ms.

Power & Dimensions

• Power Requirement: 9V DC, Center Negative (requires an external power supply, as the mini chassis is too small to fit an internal 9V battery)
• Current Draw: 36 mA
• Dimensions: 42 mm × 93.5 mm × 52 mm (1.65 × 3.68 × 2.04 inches)
• Weight: 230g (0.5 lbs)
