The GAIN potentiometer controls how hard you drive the preamp.
Higher gain will push the preamp more and add a touch of natural analogue compression.
Caveman Audio by Skrydstrup Caveman Audio BP1w Wireless Input Bass Preamp
800.00 Excl. tax
In the shop we have a lightly used BP1w Wireless Input Bass preamp from Caveman Audio!
Product description
In the shop we have a lightly used BP1w Wireless Input Bass preamp from Caveman Audio!

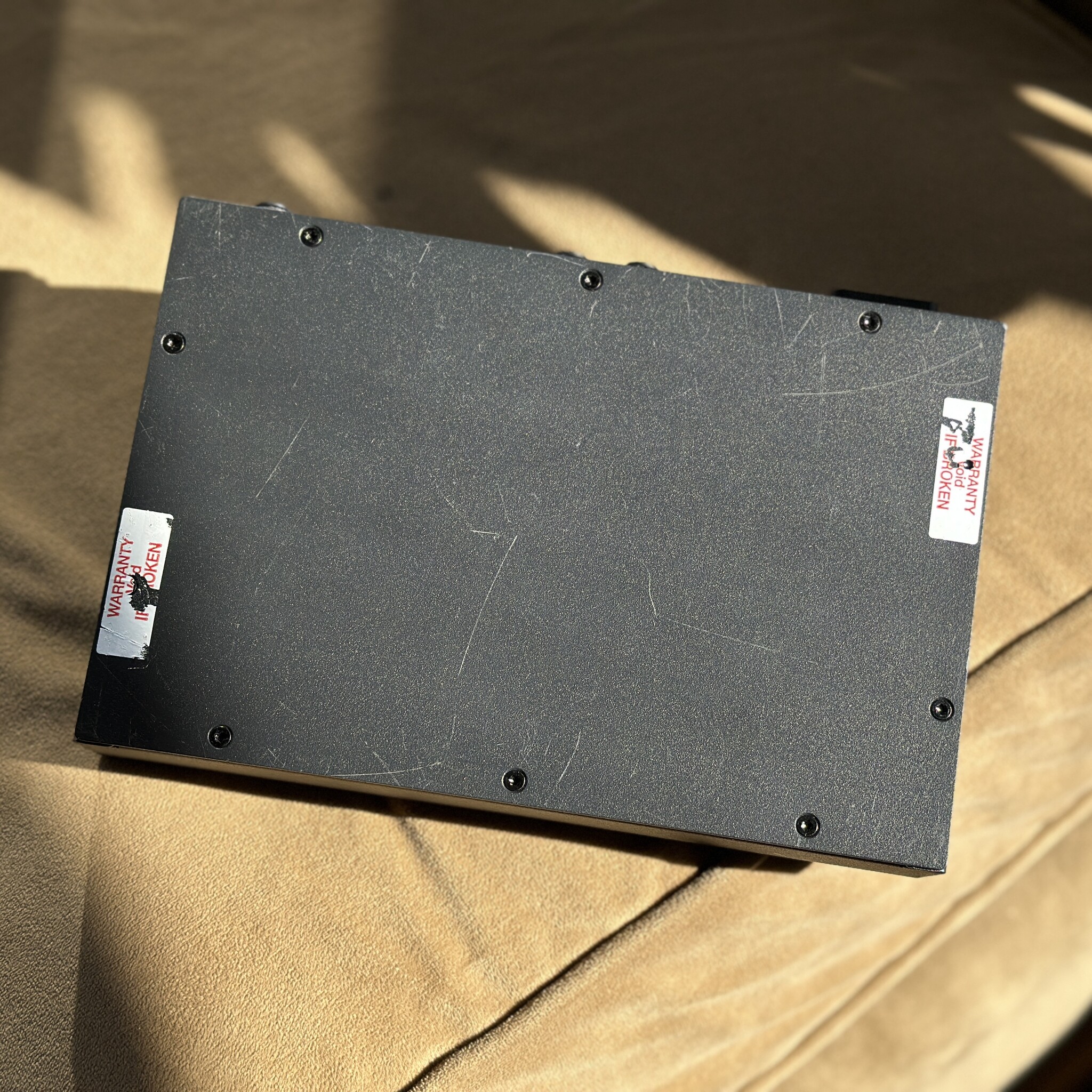

This is a studio wuality preamp in a footswitchable package. Unit is used as pictured. Includes IEC, does not include box.
Here's more from Caveman:
The BP1 Bass Preamp integrates the preamp and output stage from our BAS1 Bass System, into a compact stompbox format with zero compromises, making it an ideal choice for bass players seeking portability without sacrificing tonal integrity.
The BP1 is designed to enhance the low mid-range frequencies of your bass, providing clarity and definition that helps your sound stand out in any mix.
By adding depth and dynamics, it ensures that your bass not only occupies space but also contributes to the overall musicality, and makes playing so much more fun and rewarding for you.
The built-in transformer balanced D.I. enhances audio fidelity for bass performances, ensuring vibrant and dynamic sound in live settings.
By replacing inferior DI boxes that can compromise audio quality, you preserve the rich tonal characteristics of your instruments.
| Input Impedance | 5MΩ |
| Output Load D.I. | 2kΩ or more |
| Output Load Amp Out | 2kΩ or more |
| Output Load Send | 1kΩ or more |
| Input Impedance Return | 50kΩ |
| Dim. Metric | 220 x 145 x 40/65 mm (WxDxH) |
| Dim. Imperial | 8.66” x 5.71″ x 1.57″/2.56″ |
| Weight | 1.65 kg / 3 lbs. 10 oz. |
| Power | 100-240VAC 50/60Hz |
CONTROLS
GAIN:
LEVEL:
The LEVEL potentiometer controls the overall output of the preamp.

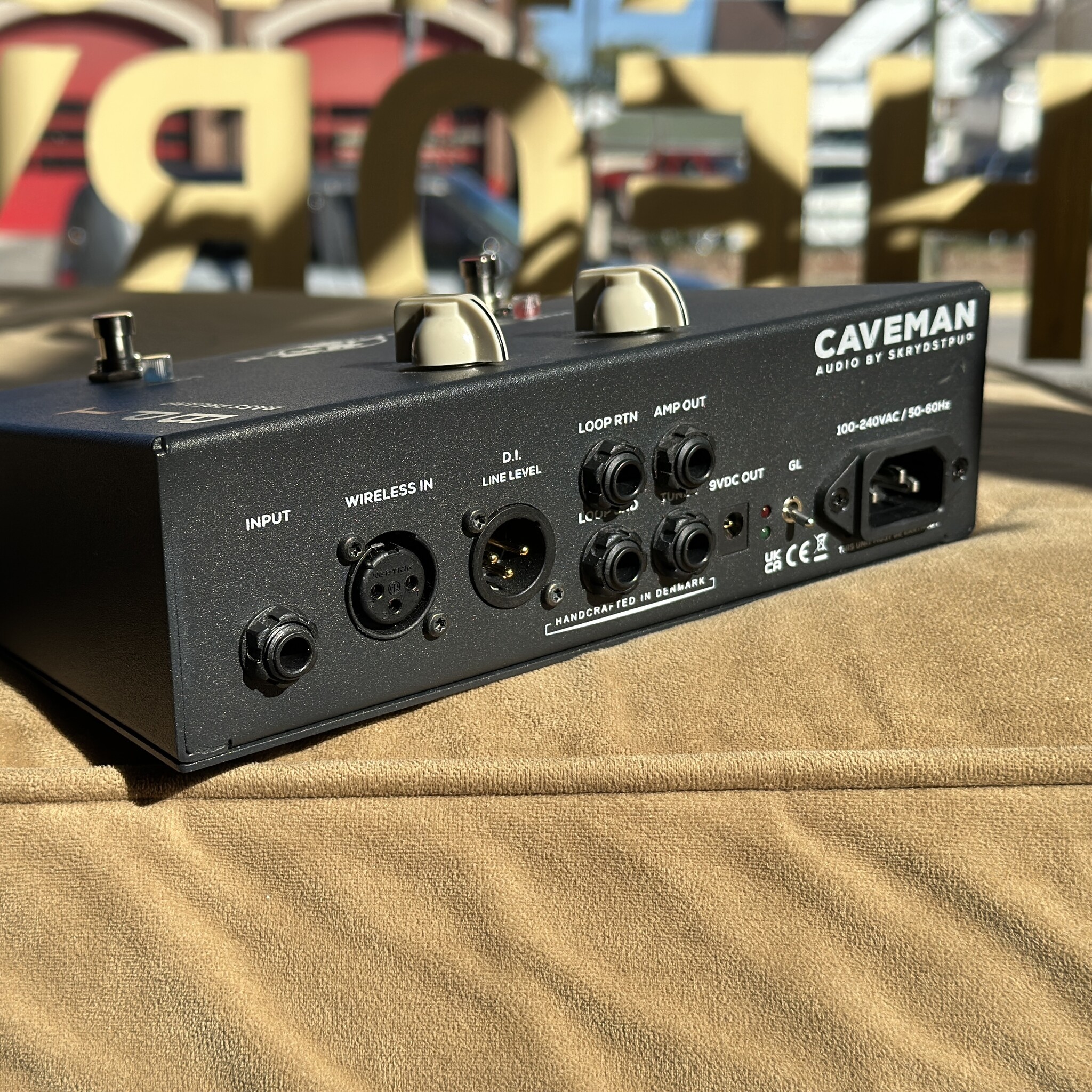

REAR CONNECTIONS
INPUT:
1/4″ TS mono jack – this is the instrument input.
WIRELESS IN:
Gold-plated Neutrik XLR input.
The BP1W features a transformer balanced input, designed to handle input from a Wireless System.
The input is transformer balanced to ensure no hum/noise, when connecting a Wireless System.
D.I.:
Gold-plated Neutrik XLR output.
The D.I. output is transformer balanced to avoid any hum/noise issues, and eliminates the need for an external D.I./Line Driver.
This output is designed for loads of 2Kohm or higher, making it perfect for mixing consoles / DAW.
This is a Line Level output – NOT mic. level – so make sure that the input gain on your mixing desk / DAW is set to its minimum. If a Line Channel is available, you should use that.
LOOP SEND / RETURN:
1/4″ TS mono jacks. The switchable loop is placed after the input buffer, but before the preamp.
This is the perfect spot for connecting your stomp boxes.
Connect the input of your first stomp box to the LOOP SEND jack – and the output from your last stomp box to the LOOP RETURN jack.
When the loop is OFF, your stomp boxes are out of your signal chain. Switching is instant and silent.
AMP OUT:
1/4″ TRS stereo jack.
The AMP OUT is transformer balanced to avoid any hum/noise issues when connecting an external amplifier.
TUNER OUT:
1/4″ TS mono jack.
The Tuner Out is always active. It is placed right after the Input Buffer inside the BP1, to ensure best performance.
9VDC:
9VDC output. Will accept both 2.1mm and 2.5mm / 5.5mm plugs.
This 9VDC supply is for powering your Tuner only !
The output features a short-circuit protection with LED indication of status.
Green LED indicates “All is good”. Red LED indicates a broken cable or faulty Tuner.
GROUND LIFT (GL):
Set for minimum noise.
100-240VAC:
IEC inlet.
The BP1 operates within 100-240VAC / 47-63Hz.
Will work anywhere on the planet.
- Unique RFI protection and Silent Switching
- Road-ready Zinc-plated Steel Enclosure
- Maximum protection against magnetic fields
