Walrus Audio Walrus Audio Canvas Stereo Dual Line Isolator / D.I.
215.00 Excl. tax
In the shop we have the Canvas Stereo D.I.!
Product description
Canvas Stereo is a Passive Line Isolator (LI) and Direct Injection (DI) device that converts your unbalanced signals into balanced signals for interfacing properly with your recording interface or mixer at front-of-house. If you’re using an amp-in-a-box (DSP Guitar Rig), like our ACS1, keyboards, or any other instrument utilizing both left and right outputs, then the Canvas Stereo is your new bridge to the front-of-house. The Canvas Series DIs pack everything you need from a DI/LI into a standard pedal-sized enclosure designed to look great right on top of your board.
Needing a mono solution? Click here for the Canvas Mono.
Canvas Stereo Features:
-
Flat frequency response from 20Hz-20kHz
-

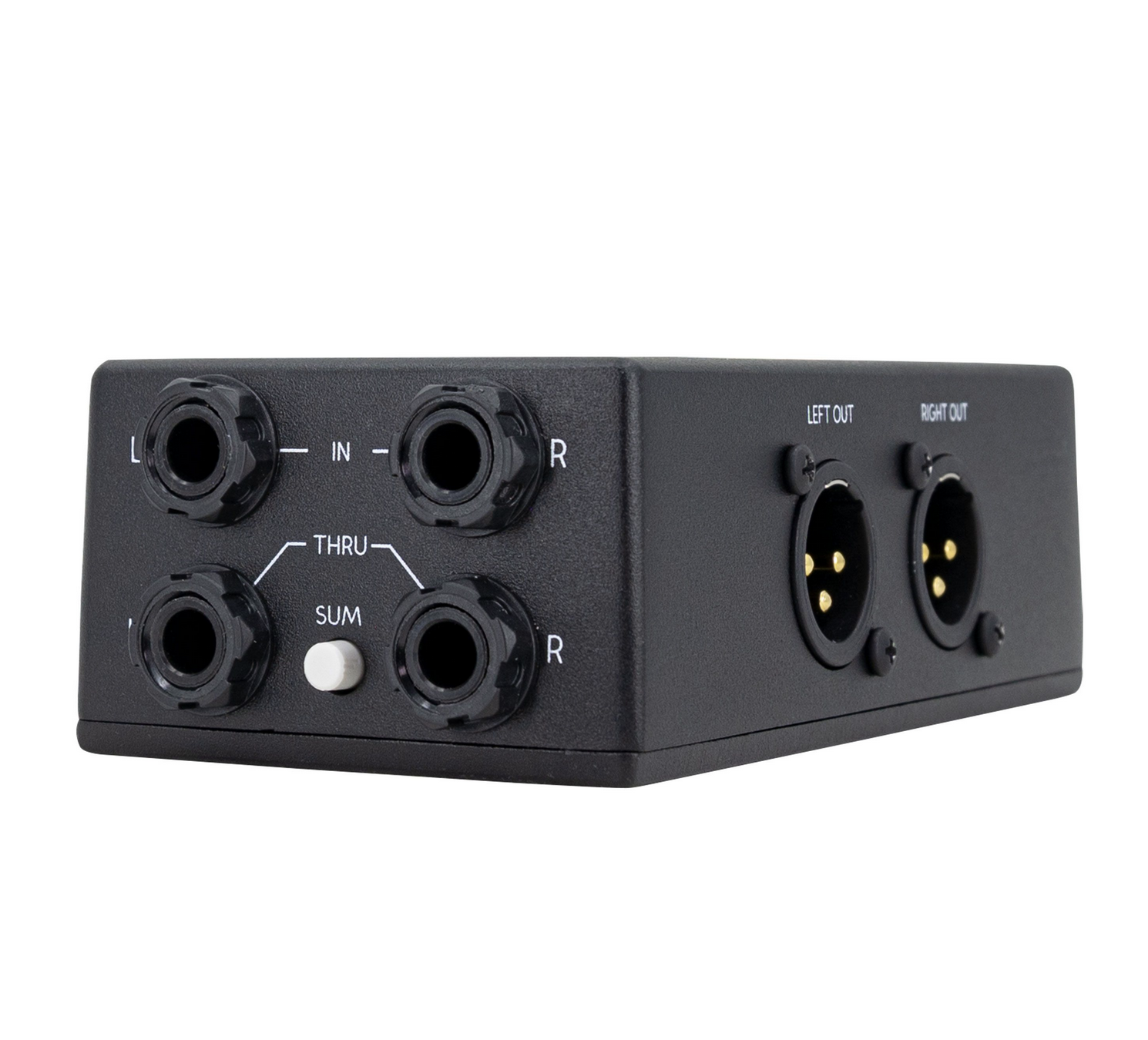

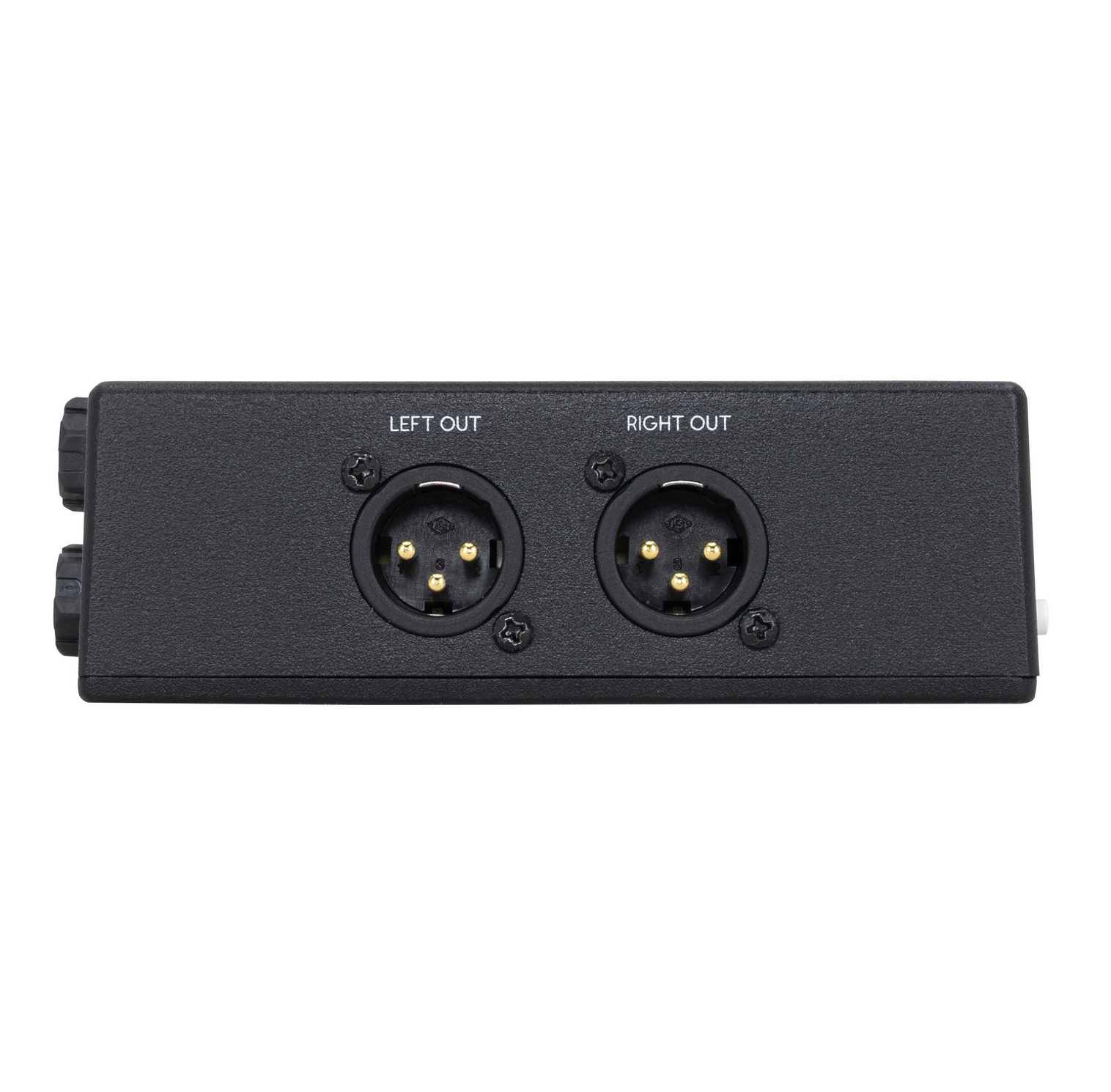

Converts ¼” unbalanced input to XLR balanced output.
-
Transformer isolated output.
-

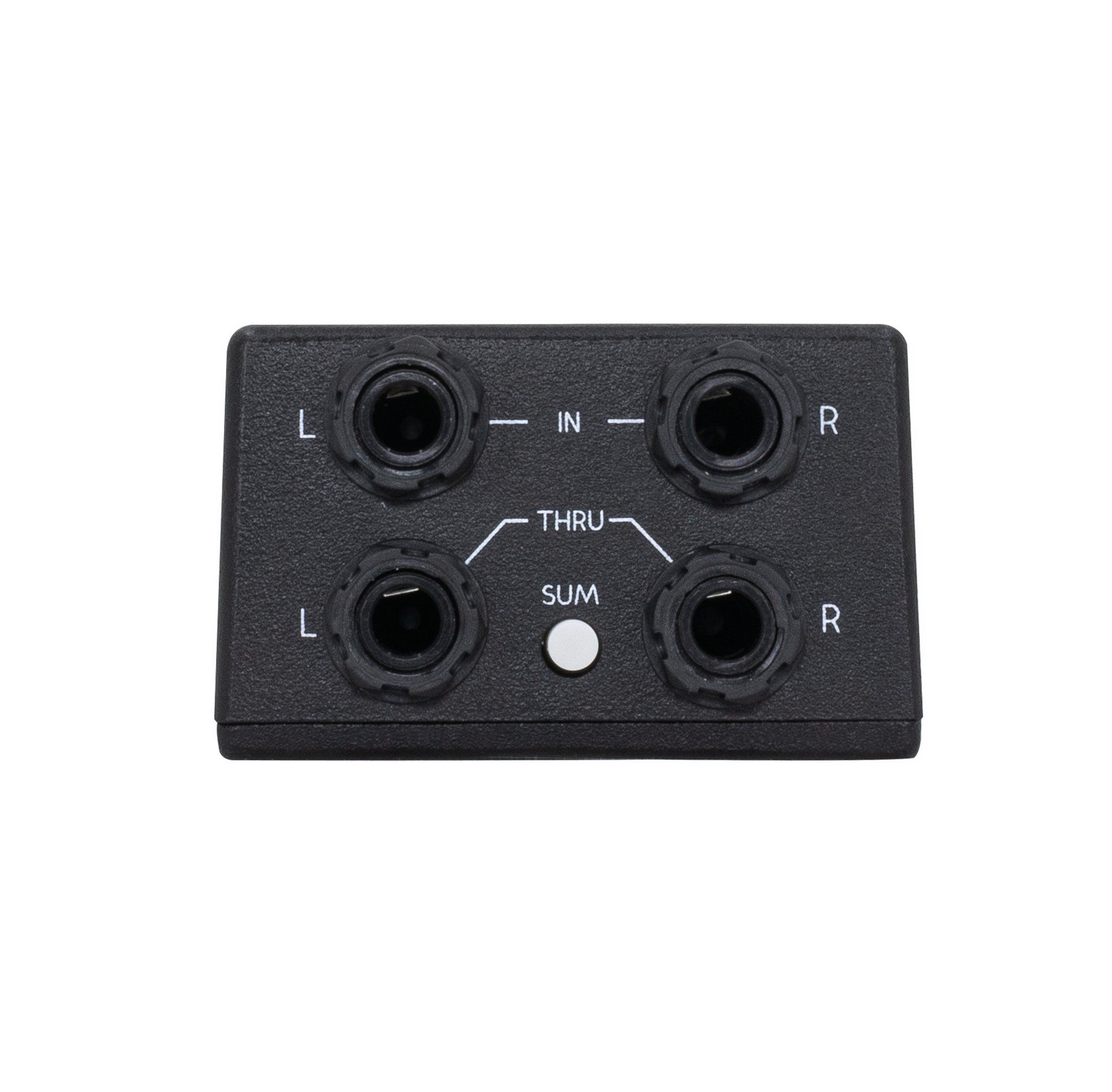

Sum switch
-
When disengaged (out), the left input connects to the left thru. The right input connects to the right thru allowing the use of stereo amplifiers.
-
When engaged (in), Sum connects the left and right thru jacks together to combine the signals for running into a single amplifier (use either thru jack).
-

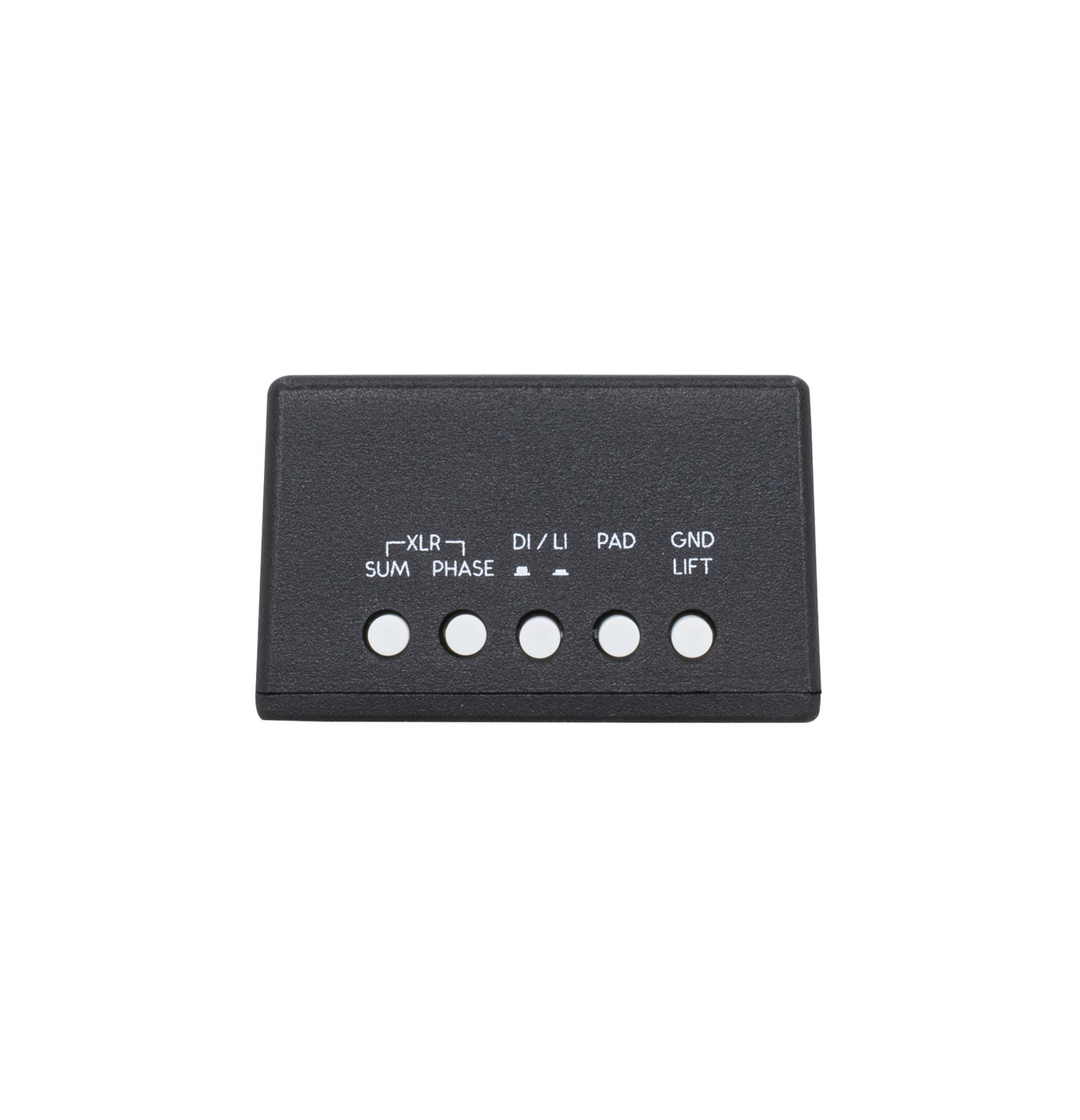

Pad: Enables a -15dB input pad (Only in D.I. mode) for reducing hot signals in order to minimize distortion.
-
D.I./L.I.: Choose between Direct Injection or Line Isolator modes (Out for DI, In for LI)
-
GND Lift: Isolates the GND pin on XLR to help reduce hum if present. Leave out for normal operation.
-
Custom wound transformers for low THD (Total Harmonic Distortion) and full frequency response.
Direct Injection:
Line Isolator:
DI or LI?
High Impedance = anything above 1k = Use DI
Low Impedance = less than 1k = Use LI
Troubleshooting:
