Boss DD-20 Giga Delay

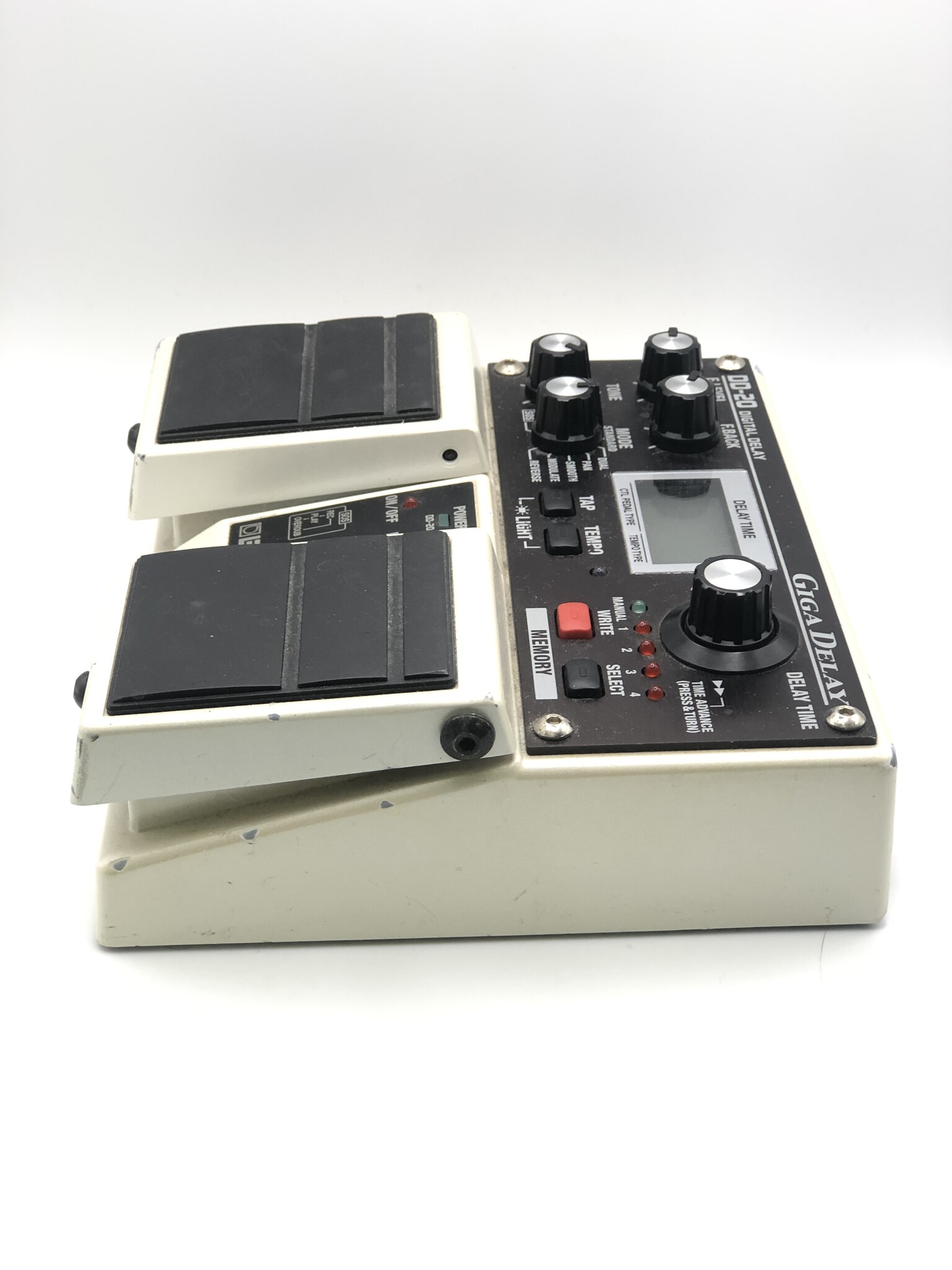

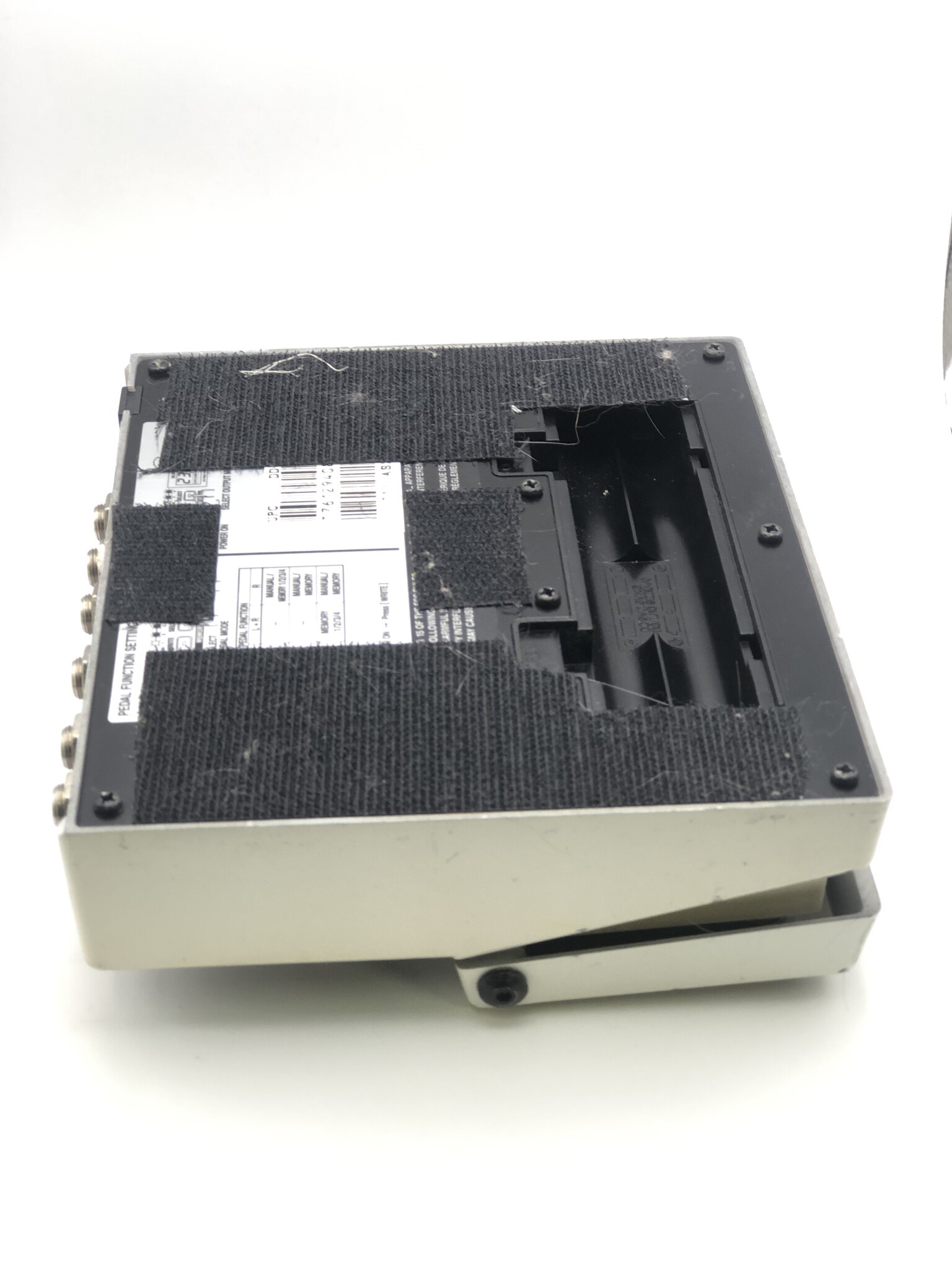

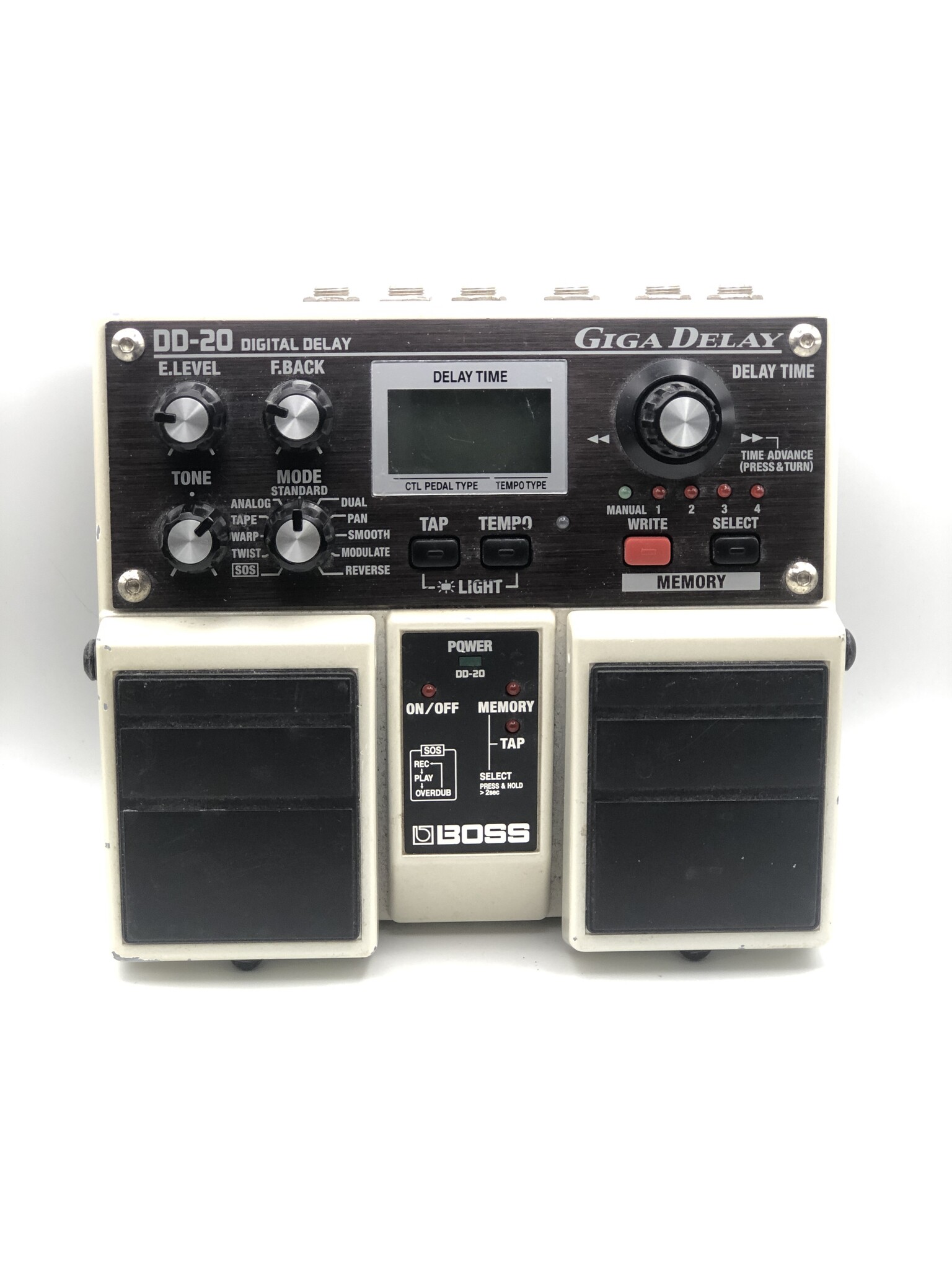

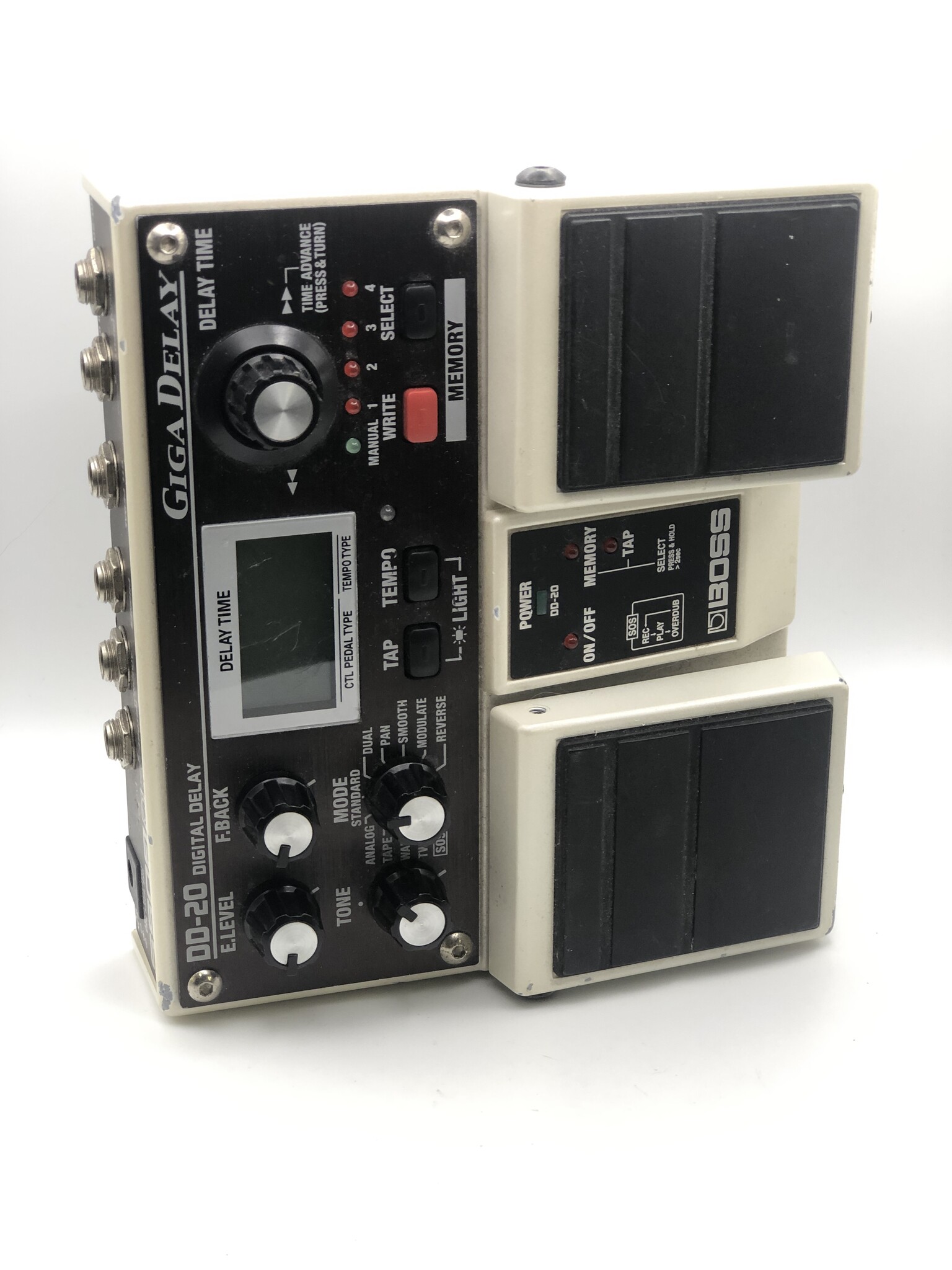

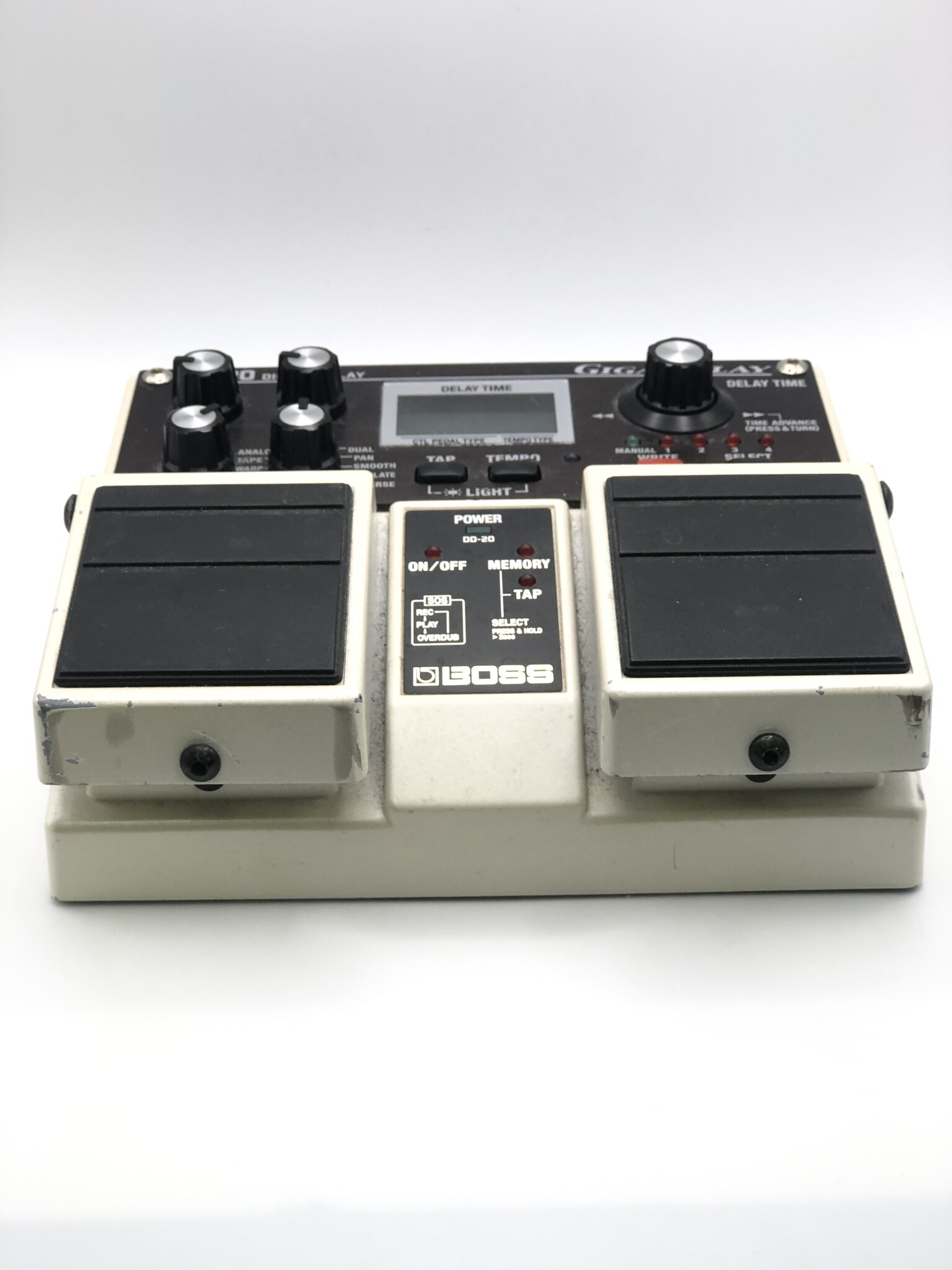

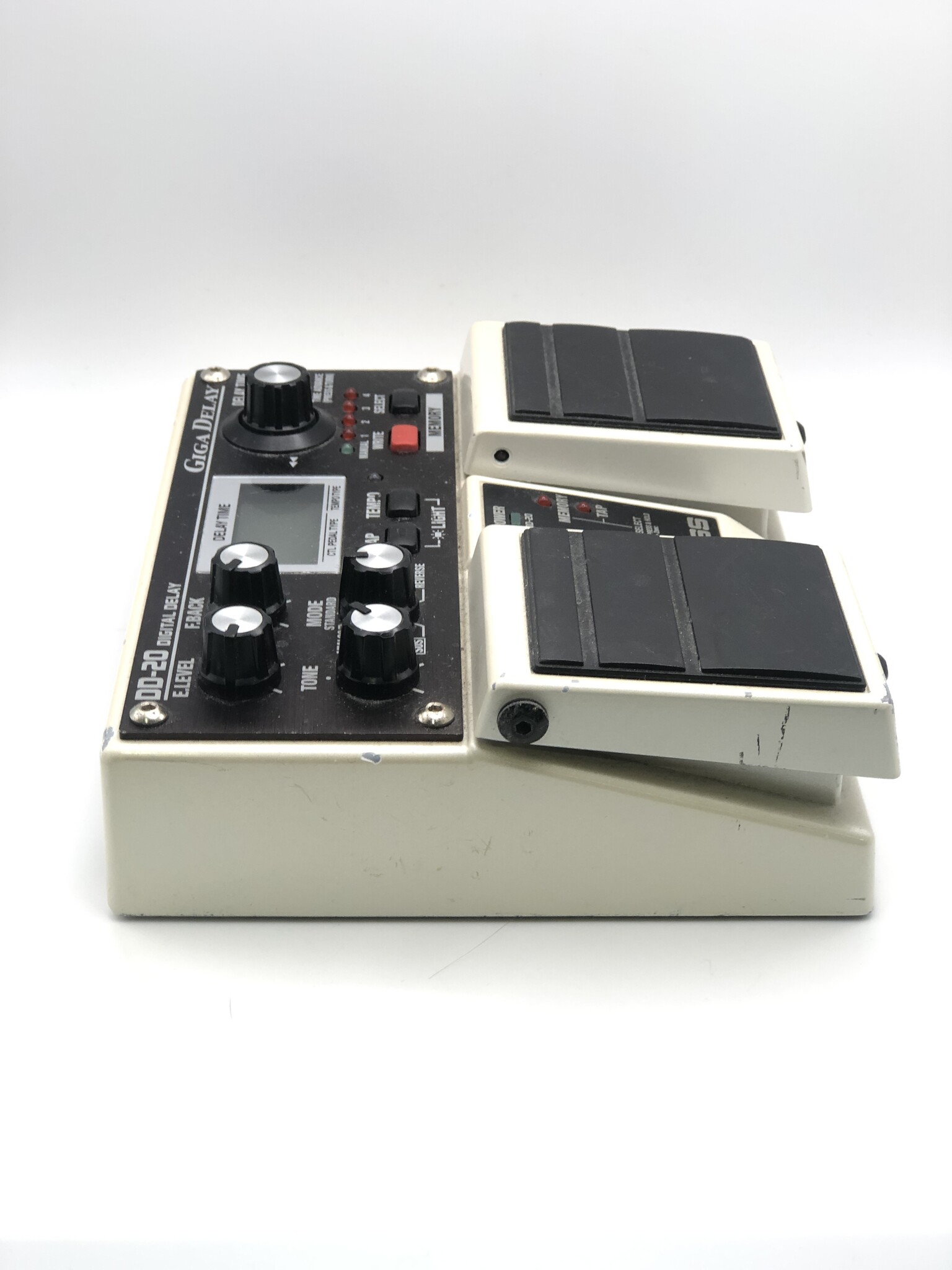

This pedal is used and features wear as pictured. Back battery compartment is missing and original box is not included. This pedal is fully functioning and has been tested. Here's more info from Boss:

"The BOSS DD-20 Digital Delay offers more User memory and long delay time up to 23 seconds. Delay time can be quickly set using the push-button knob or via tap tempo. And with a choice of 11 modes—including new “Smooth” and “Twist” delays and sound-on-sound recording—this Twin Pedal raises the bar for delay effects.

23 Seconds of Pro-Quality Delay
With up to 23 seconds of delay, the DD-20 easily outshines the competition and can even double as a sound-on-sound pedal. Delay time can be adjusted via tap tempo or using a knob, which also features a push function to set the delay range more quickly. Eleven delay modes are provided covering everything from analog and tape delay to reverse delay and more. A new Memory function makes it possible to change delay modes.

New “Smooth” and “Twist” Modes
The DD-20 also introduces two all-new delay effects that are sure to blow some minds. Twist creates wild delay effects similar to “over the top” manipulation of an analog tape echo, while Smooth creates ultra-smooth delay effects. This is a pedal no guitarist should be without!

Nominal Input Level

-20 dBu (GUITAR/BASS)

+4 dBu (AMPLIFIER SEND/RETURN)

Input Impedance

1 M ohms

Nominal Output Level

-20 dBu (GUITAR/BASS)

+4 dBu (AMPLIFIER SEND/RETURN)

Output Impedance

1 k ohms (OUTPUT A (MONO), B)

33 ohms (PHONES)

Recommended Load Impedance

10 k ohms

Residual Noise Level

-93 dBu or less (IHF-A typ.)

* E. LEVEL/F. BACK/TONE knobs are set to the center position

Display

Custom LCD (with backlit)

Controls

ON/OFF Pedal, MEMORY/TAP Pedal, DELAY TIME Knob, E.LEVEL Knob, F. BACK Knob, TONE Knob, MODE Knob, TAP Button, TEMPO Button, MEMORY WRITE Button, MEMORY SELECT Button

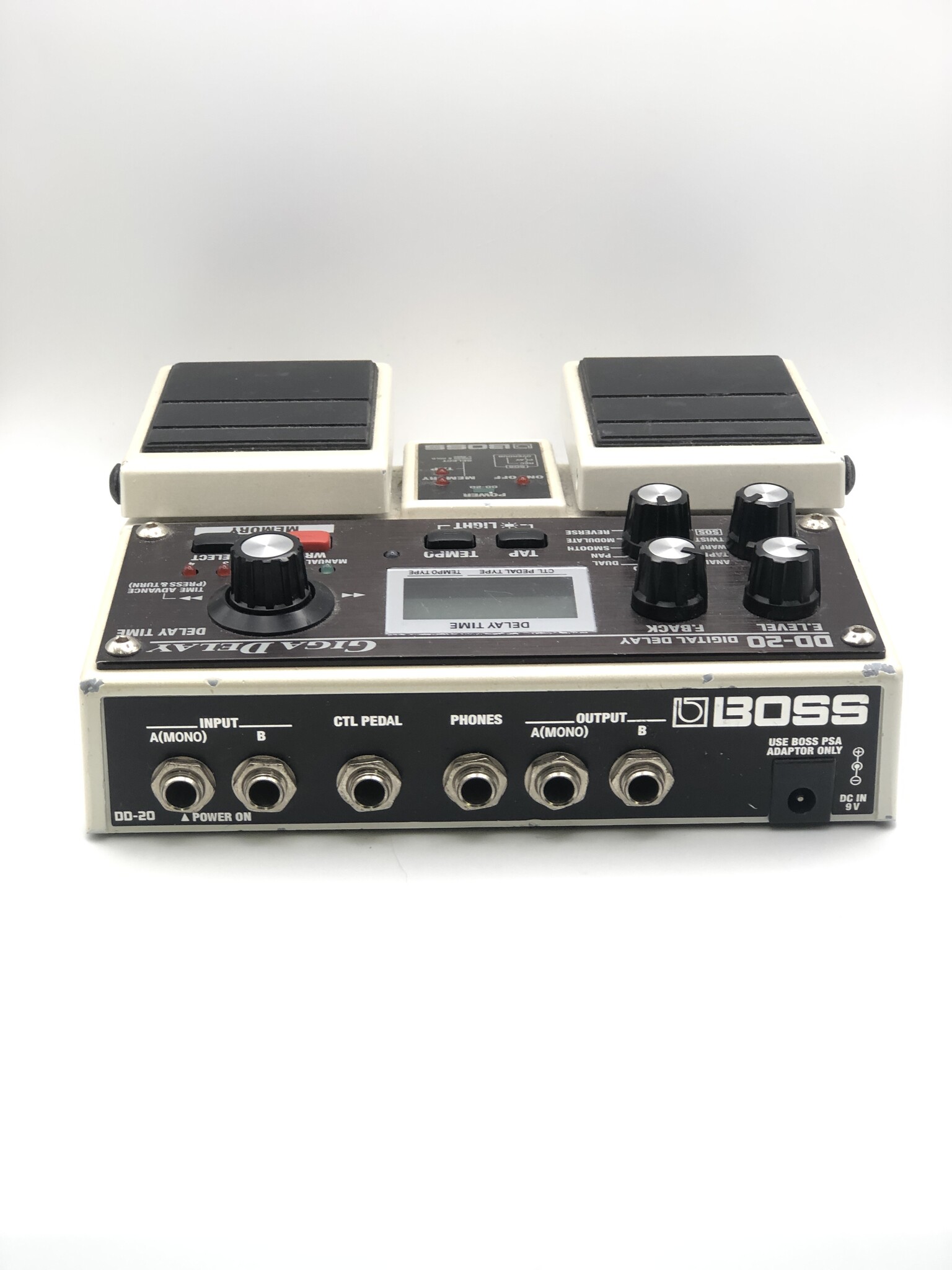

Connectors

INPUT A (MONO) Jack (1/4 inch phone type)

INPUT B Jack (1/4 inch phone type)

PHONES Jack (stereo 1/4 inch phone type)

CTL PEDAL Jack (1/4 inch phone type)

OUTPUT A (MONO) Jack (1/4 inch phone type)

OUTPUT B Jack (1/4 inch phone type)

AC Adaptor Jack

Power Supply

Dry battery (R6/LR6 (AA) type) x 6: DC 9V

AC Adaptor (DC 9V)

Current Draw

200 mA (9 V max.)

* Expected battery life under continuous use; Carbon: 2 hours, Alkaline: 7 hours

These figures will vary depending on the actual conditions of use.

Accessories

Owner's Manual

Dry battery (LR6 (AA) type) x 6

* We recommend that alkaline batteries be used when replacing the batteries."
