ART Tube MP Studio V3 Tube Microphone Preamp

ART ART Tube MP Studio V3 Tube Microphone Preamp

Back to overview

69.99 Excl. tax

(0)

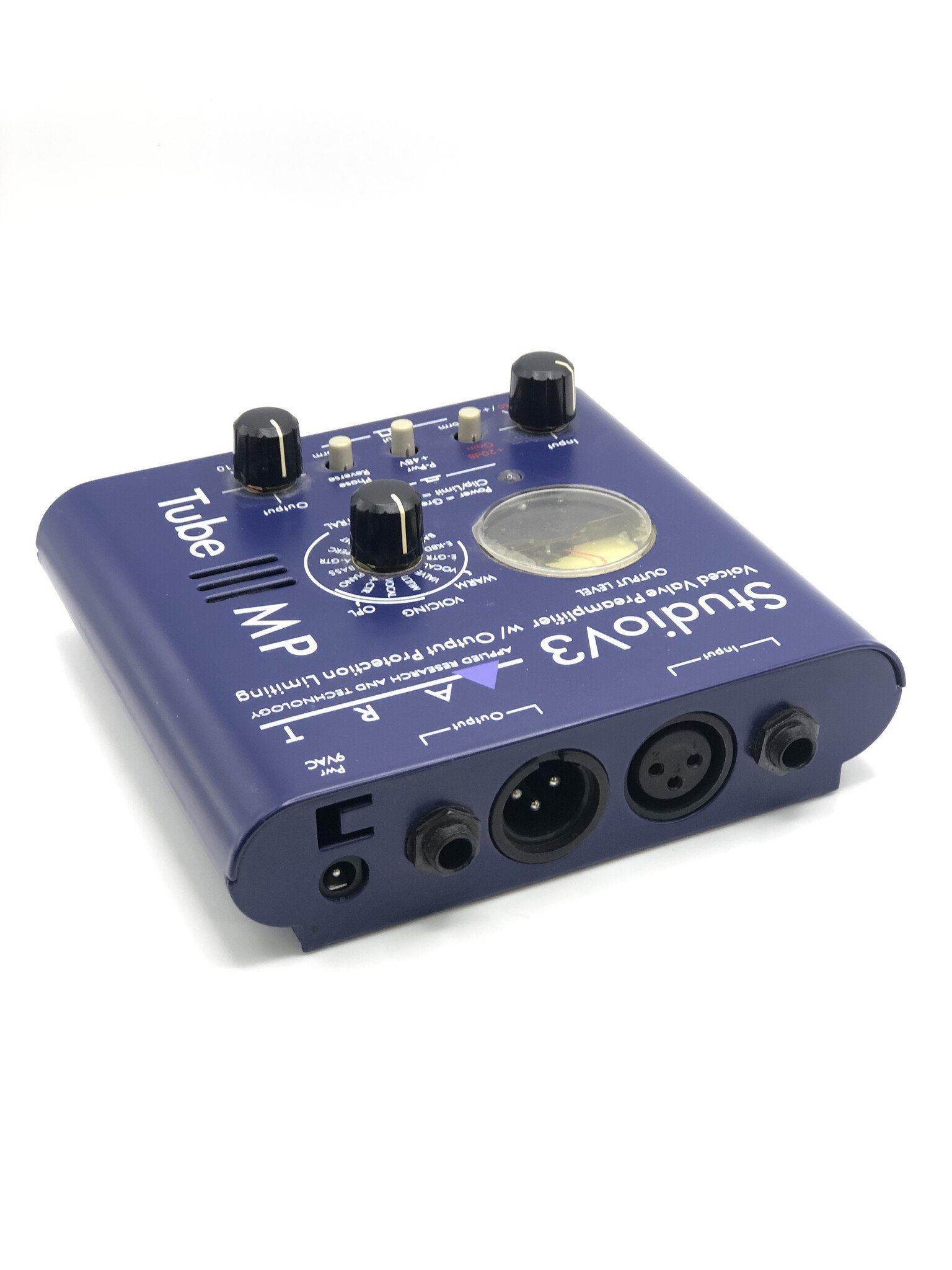

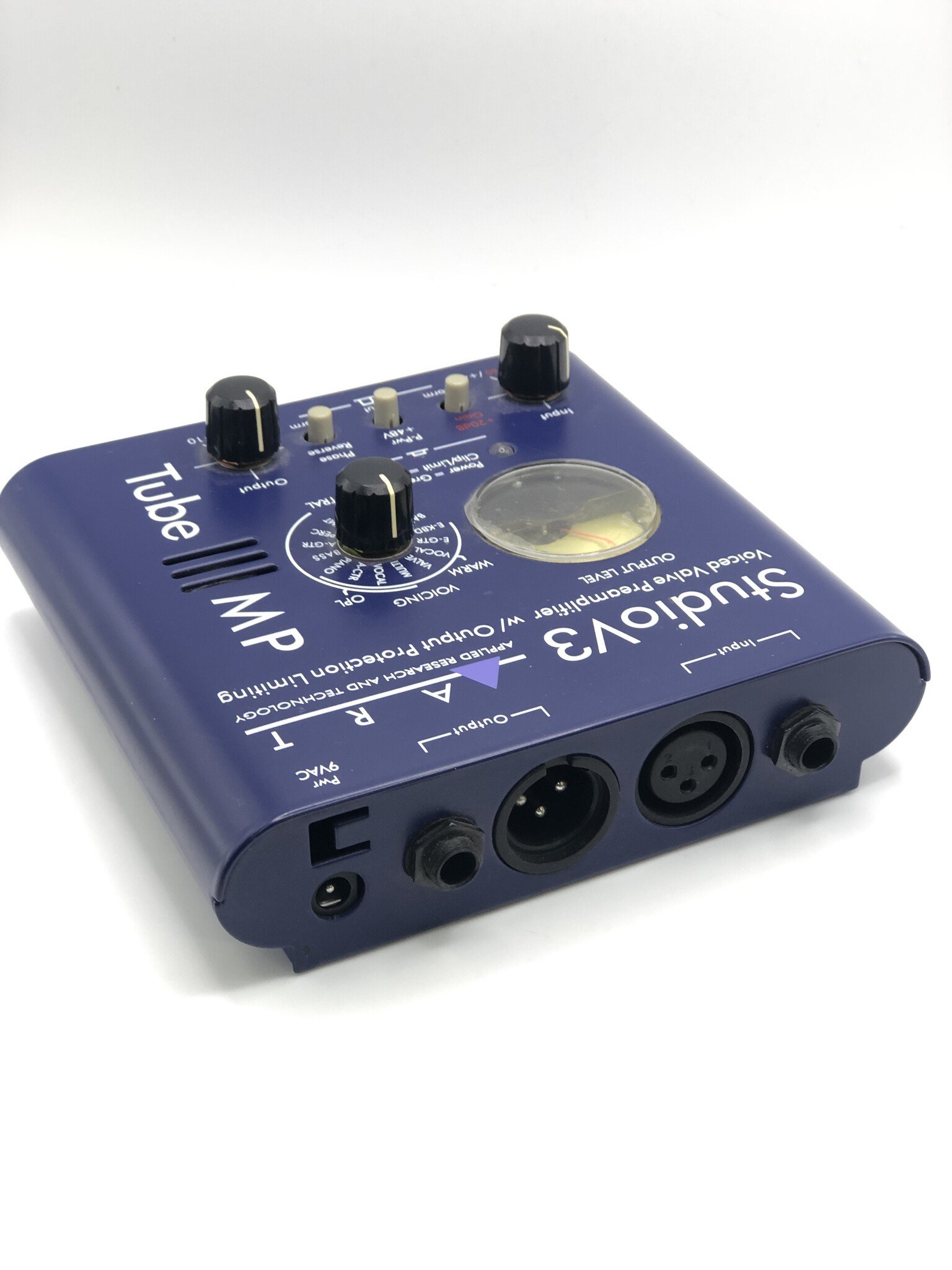

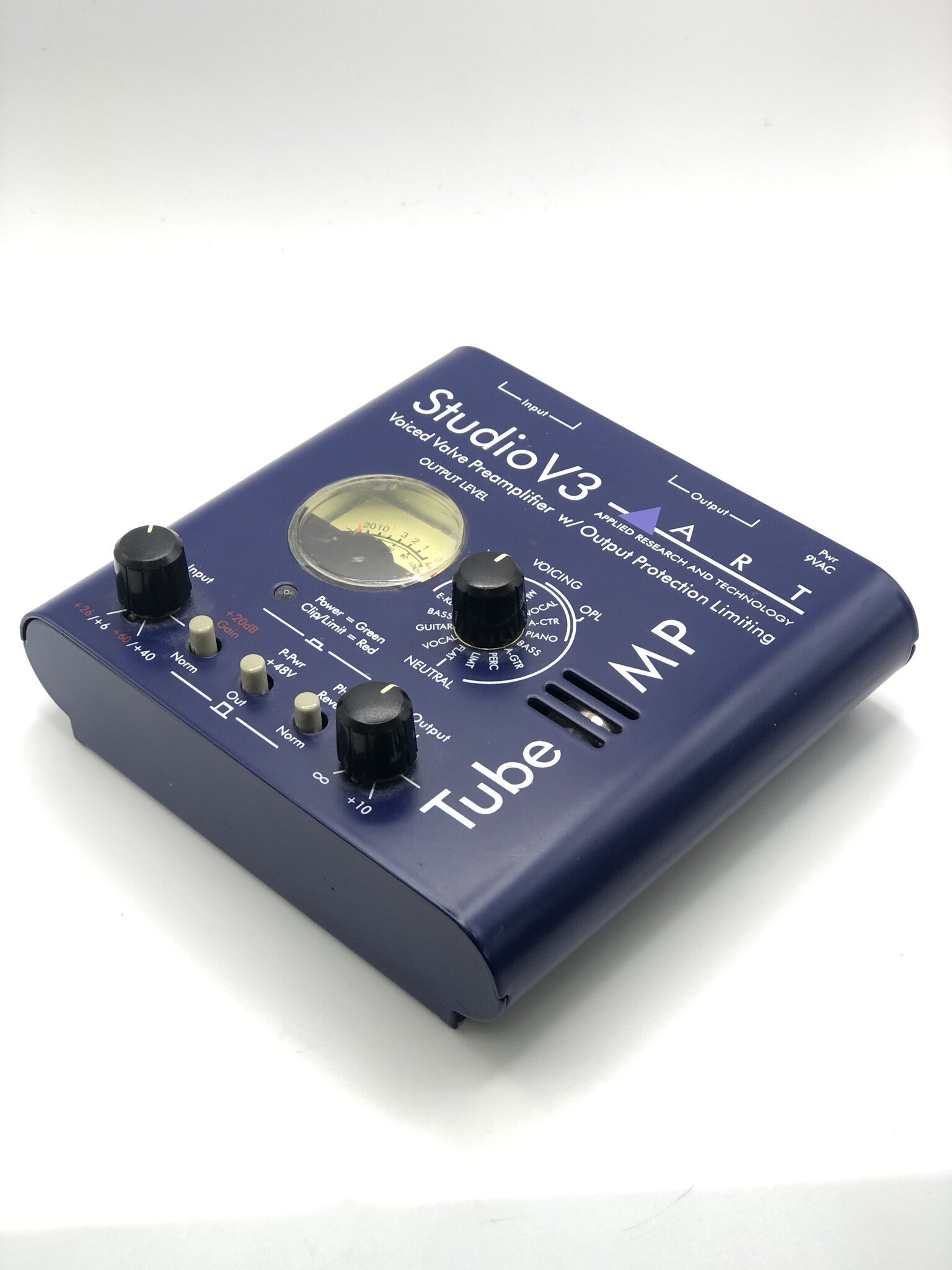

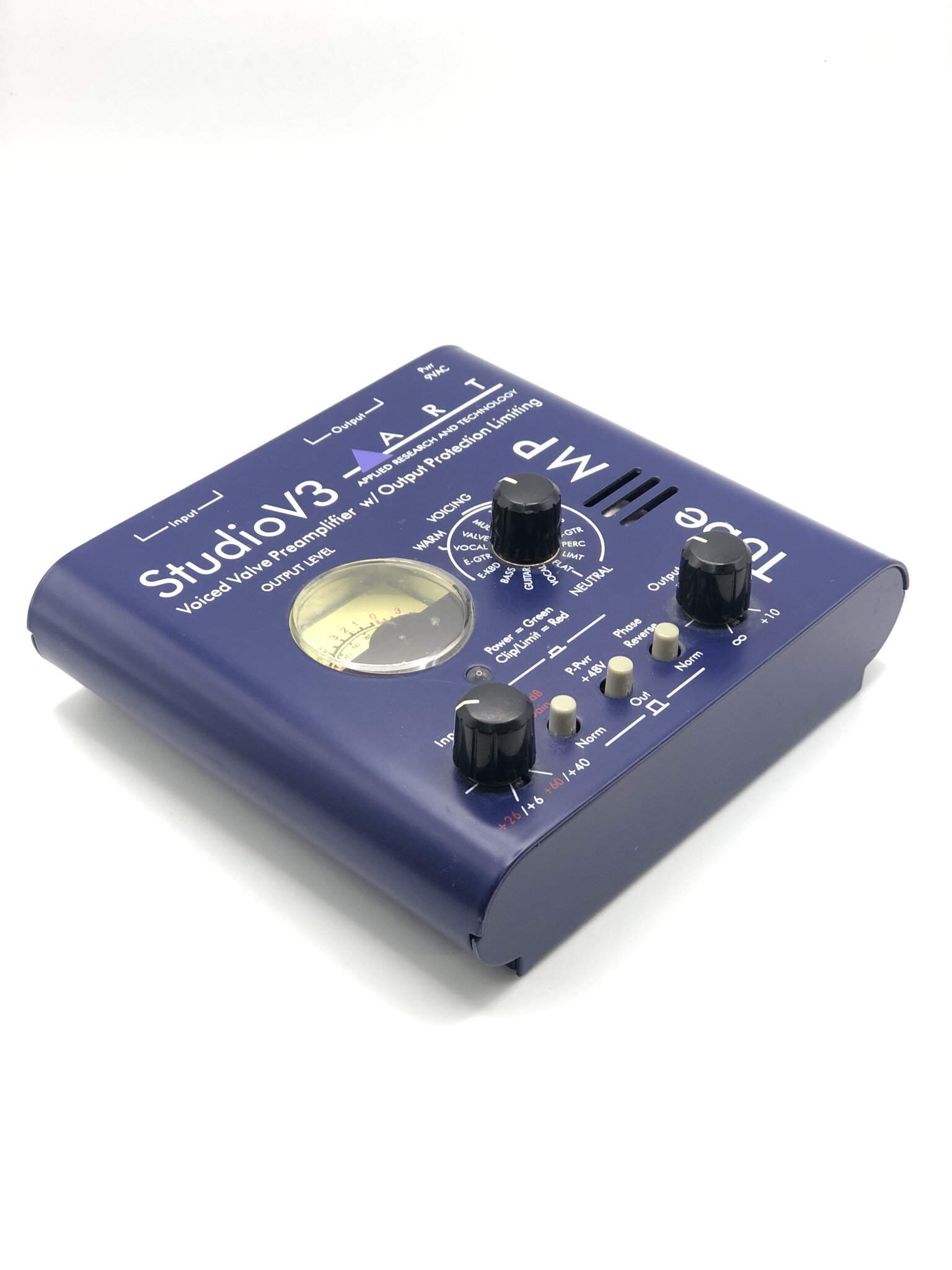

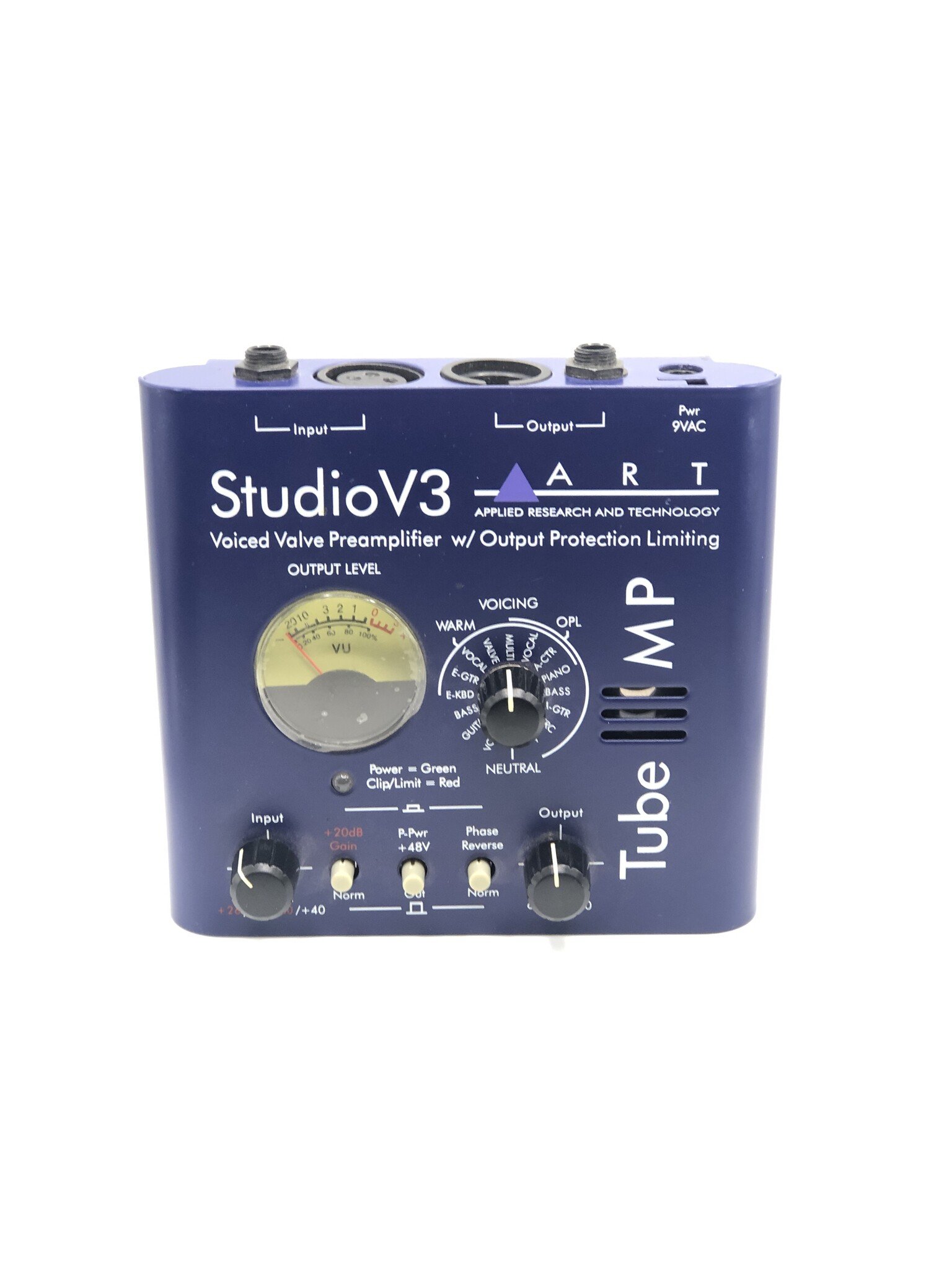

In the shop we've got a used ART Tube MP Studio V3 Tube Microphone Preamp.

Direct checkout

  • In stock

Product description

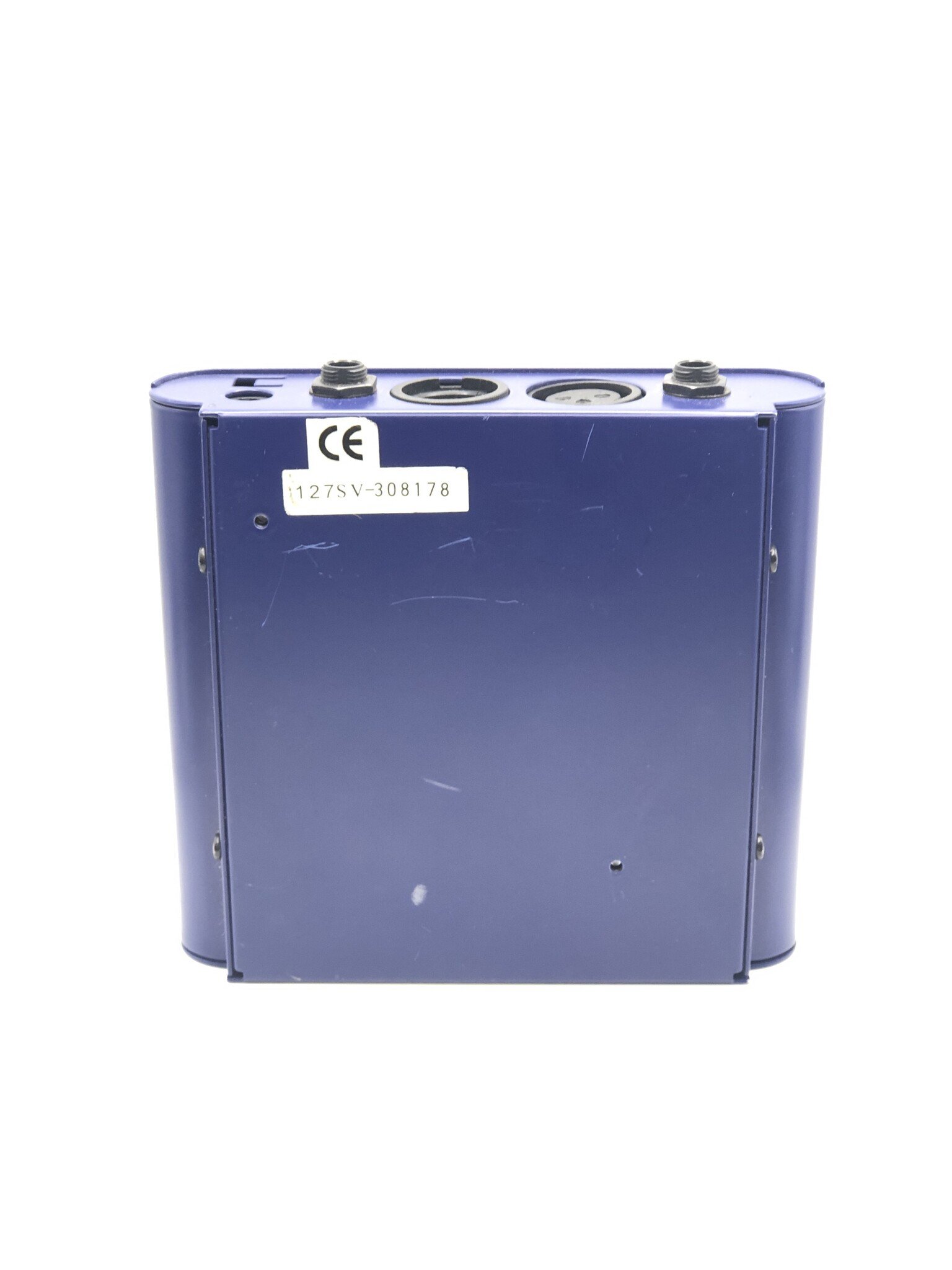

This unit is used and shows some signs of wear. Light marks can be seen mostly on the back side of the unit. This unit includes the original box and power supply. Here's more info from ART:



This high-quality preamplifier offers superior sound quality for microphones, instruments, and line-level sources. With 50-60 dB of gain and a frequency response of 10 Hz to 30 kHz, it delivers a smooth, warm sound. Featuring variable valve voicing, output protection limiting, and a hand-selected 12AX7A tube, this unit is perfect for capturing detailed audio. Its durable all-steel construction and compact size make it ideal for both studio and live applications.





Features

  • Provides Superior Preamplification for:
    Microphones, Instruments and Line Level Sources

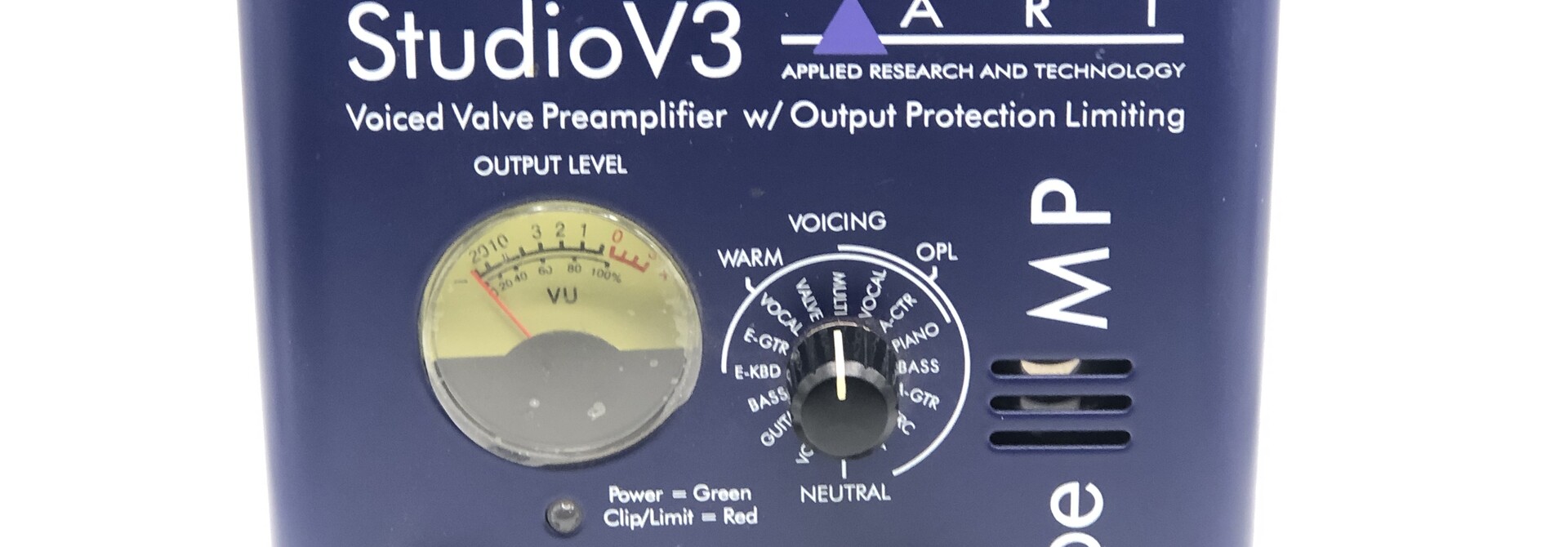

  • V3™ – Variable Valve Voicing
  • OPL™ – Output Protection Limiting
  • Hand Selected 12AX7A Provides 70dB of Gain Smooth,
    Warm and Fat Sound Quality
  • Variable Input and Output Gain Controls
  • Excellent as a Tube DI
  • XLR and 1/4″ Inputs and Outputs
  • +48 Volts of Phantom Power
  • Phase Reversal Switch
  • Portable, All Steel Construction

Specifications

Inputs

XLR (Balanced), 1/4" TS

Outputs

XLR (Balanced), 1/4" TS

Input Impedance

2k Ω XLR,, 840k Ω 1/4”

Output Impedance

600Ω XLR, 300Ω ¼”

Maximum Input Level

+14 dBu XLR, +22 dBu 1/4"

Maximum Output Level

+14 dBu XLR, +22 dBu 1/4"

Maximum Gain

50 dB - 60 dB

Frequency Response

10 Hz to 30 kHz, +/-.5 dB

Total Harmonic Distortion

<0.1% (typical

Equivalent Input Noise

-129 dBu to - 105dBu

CMRR

>75 dB (Typical @ 1 kHz)

Power Requirements

SA – 9 VAC @ .8A (Typical) Export Units Configured for Country of Destination

Dimensions

5.0” x 5.5” x 2.0” (12.7 cm x 13.97 cm x 5.1 cm)

Weight

1.5 lbs / 3.3 kg
