1975 Silverface Fender Vibrolux Reverb 2x10" 40-Watt Tube Combo

LOCAL PICKUP ONLY

In the shop we have a 1974 Fender Vibrolux Reverb! LOCAL PICKUP ONLY

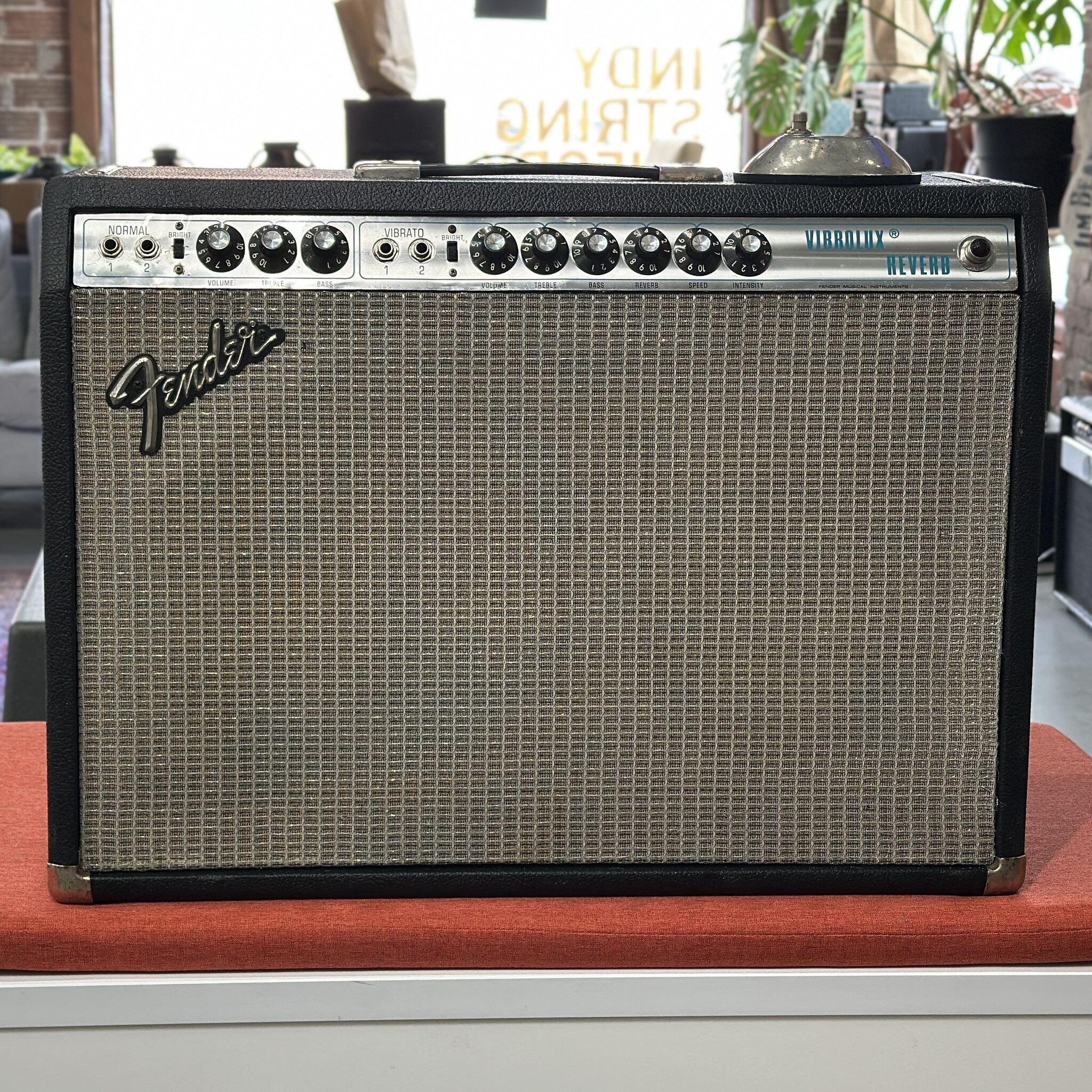

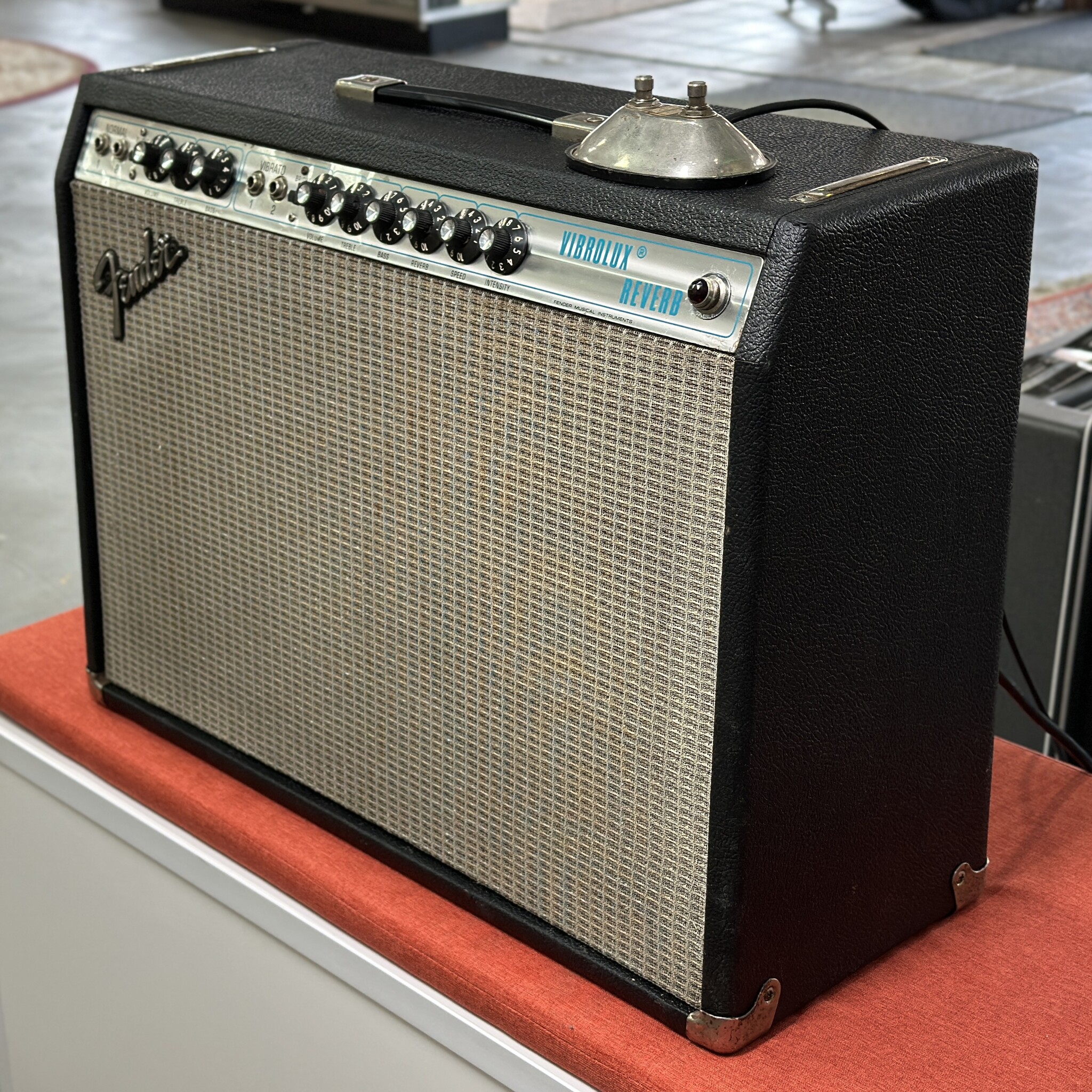

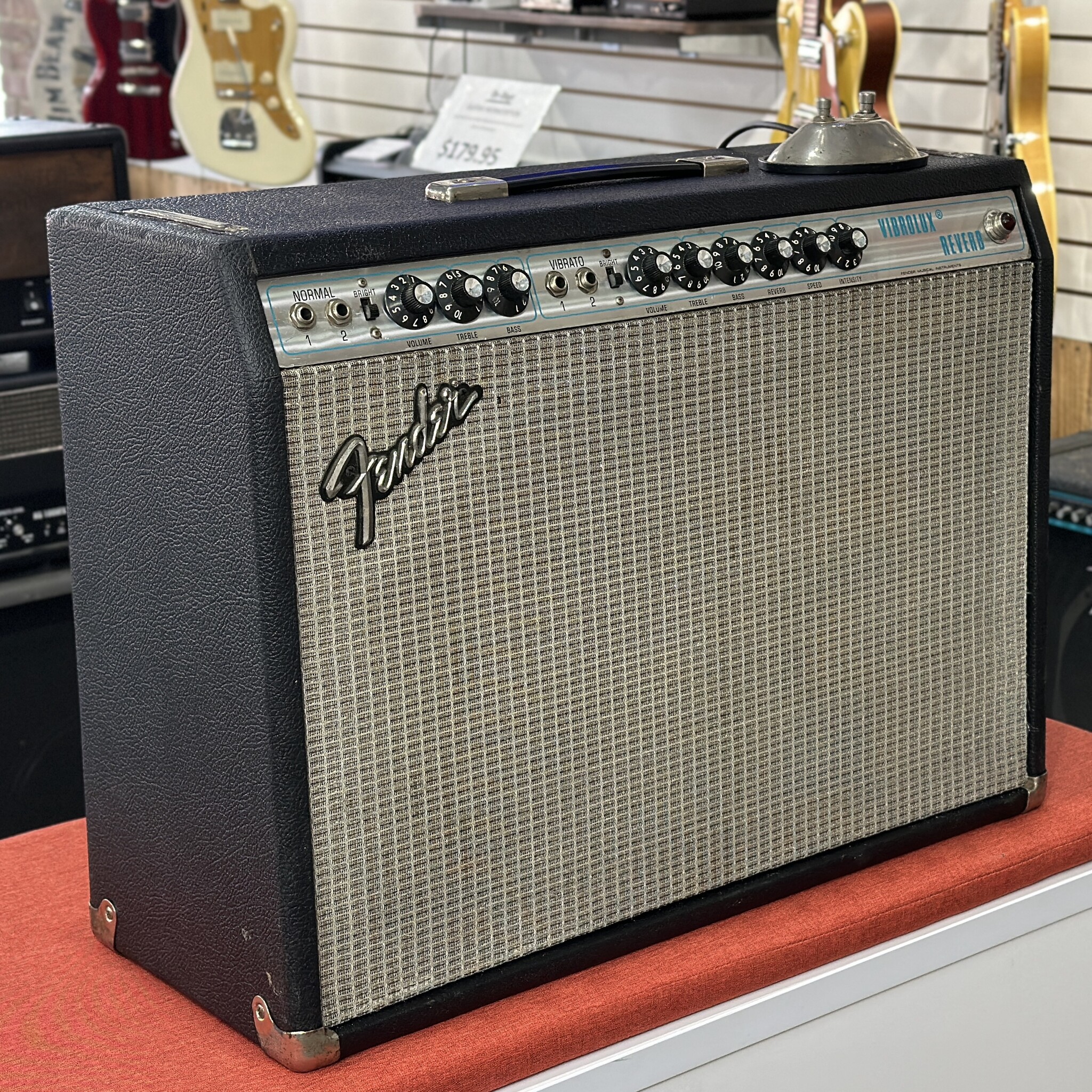

This Silverface amplifier delivers the classic fender tone with reverb and vibrato in a 2x10” 40-watt combo package, making for an amp that sparkles clean, and breaks up with a creamy saturation at higher volumes. Thanks to the services below this amp is in excellent working condition, ready for another 50 years of gigging! This unit includes footswitch and the original tolex cover, although the cover has torn and shrunk, no longer able to fit over the amp. Aside from those notes, this amp has a very lively reverb tank, that could be replaced with something tamer but has been left for originality. As pictured, the amp’s chromed parts have a nice patina while the tolex and grille cloth have managed to escape any unseemly damage except for one small hole next to the Fender logo. The original back cover was lost to time, so we fabricated a new backing.

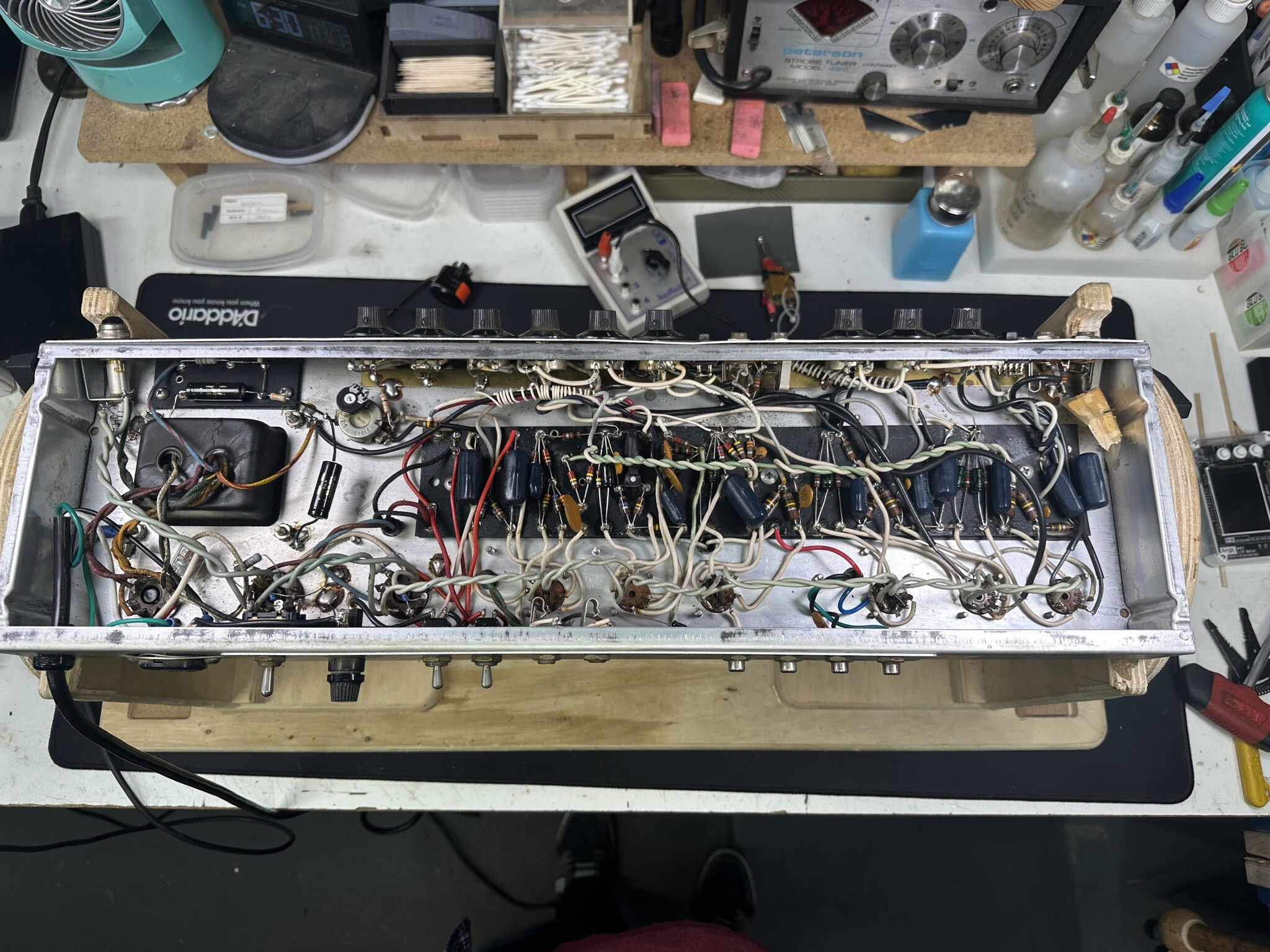

This amp has been fully serviced:

• Full electrolytic recap
• replaced rubber rotted 3 prong power cord with updated 3 prong wiring (removing death cap and converting to modern safety standard)
• rebuilt the bias board that had drifted from specification with flame proof components.
• replaced artificial center tap resistors with flame proof versions
• replaced cathode bypass resistors with flame proof
• replaced grid stopper resistors that had drifted
• replaced faulty vibrato optocoupler

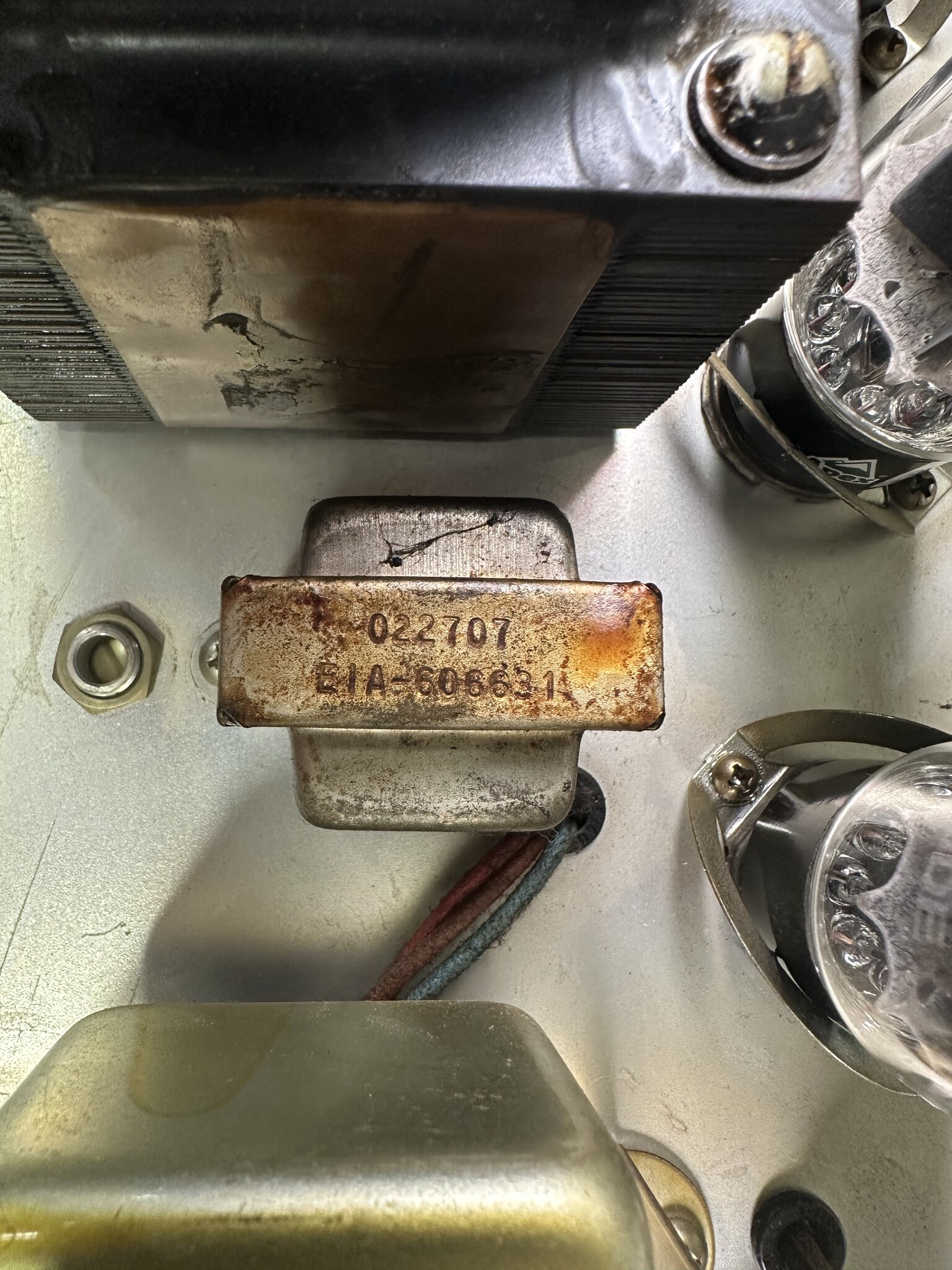

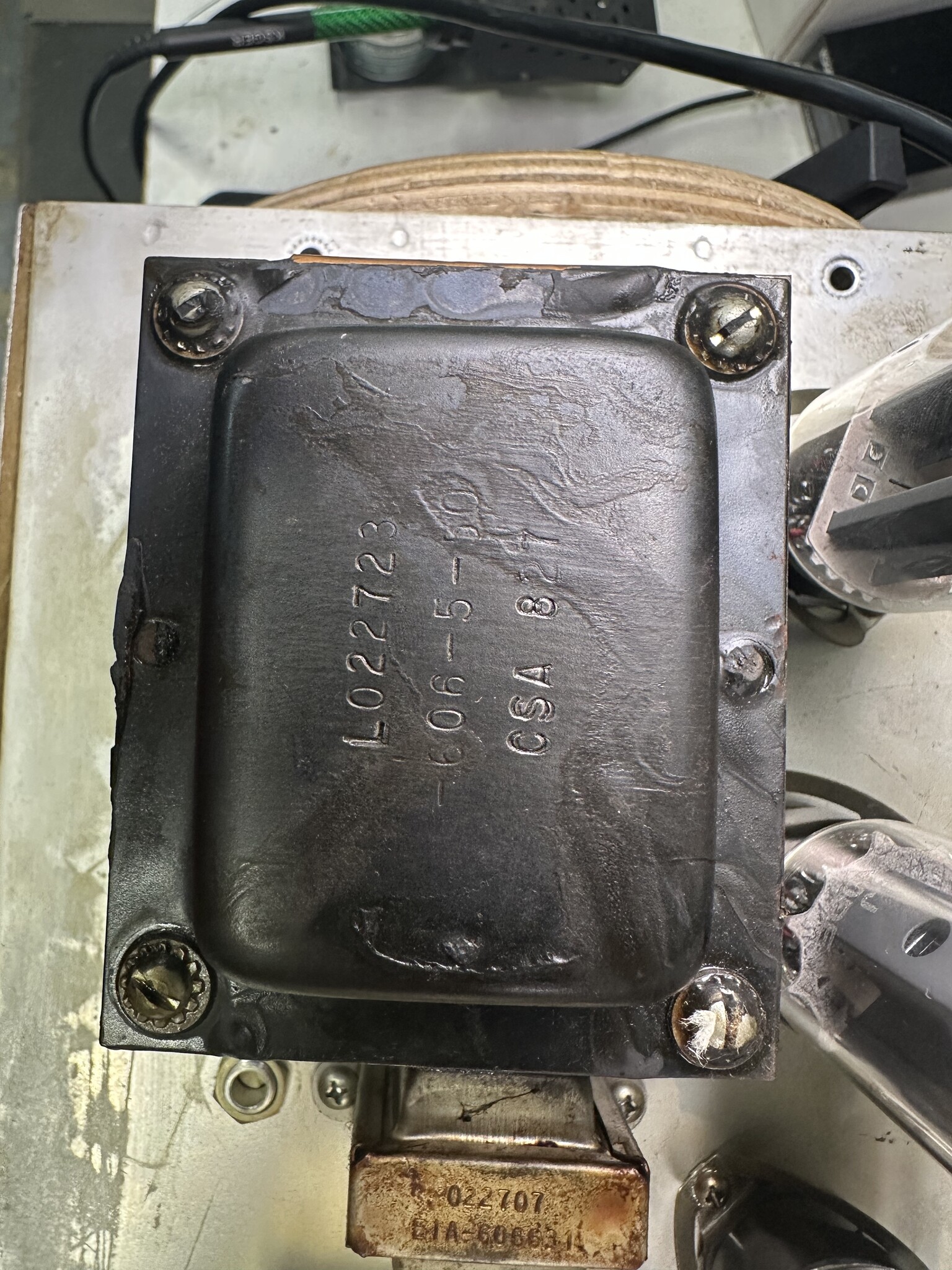

• replaced faulty reverb driver transformer
• full JJ tube retube
• Modified the bias circuit to be adjustable fixed bias+bias balance
• replaced faulty footswitch cable
• fabricated a new back panel that covers the tubes to replace missing back panel.

Specs from Original Fender Catalog:

• 40 watts RMS Power with 88-Watts peak music power for strong, positive amplification
• Two Specially designed wide-range 10” speakers for excellent reproduction
• Authentic built-in reverb and vibrato
• Dual Channels, each with bright switch, two inputs plus volume, treble and bass controls

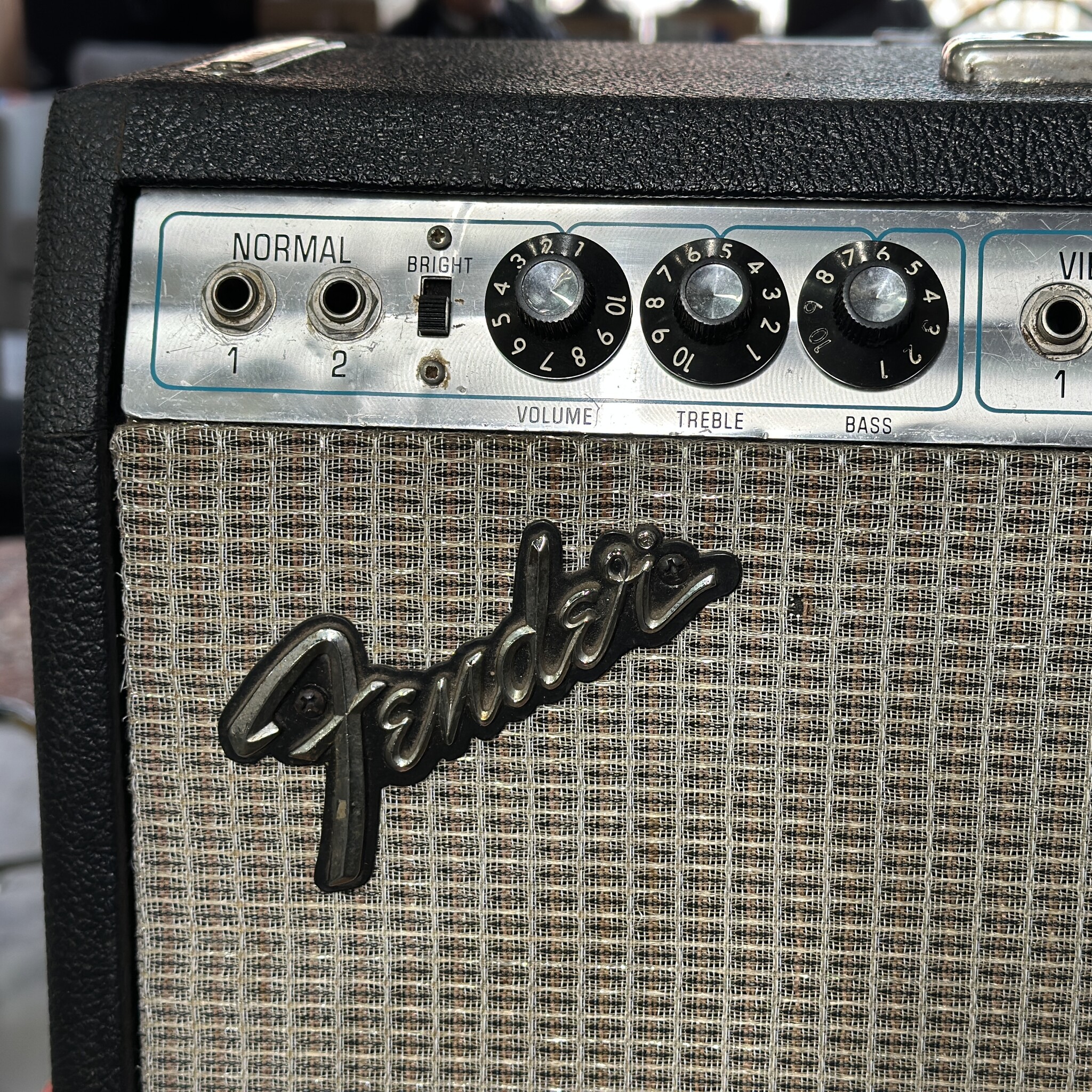

Front Panel Features: 2 Channels; normal and vibrato, 4 instrument inputs, 2 in each channel, Separate “bright” switch in each channel, Separate Volume, treble and bass controls in normal channel, Separate volume, treble, bass, reverb, speed and intensity controls in vibrato channel , Pilot light

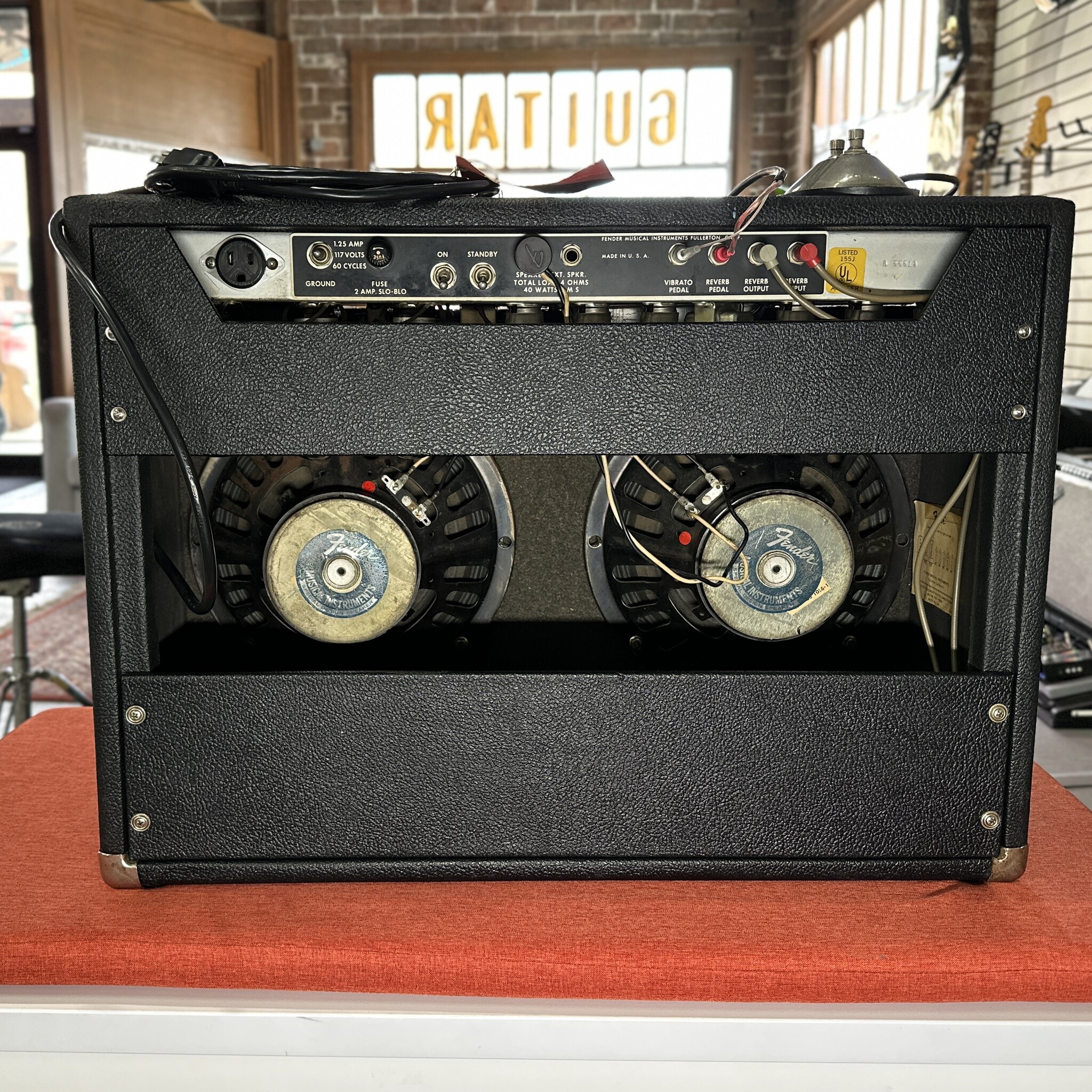

Rear Panel Features: AC accessory outlet, 3-position ground switch, Extractor type slo-blo fuse, Power on/off Standby on/off switches, Speaker output jacks, Vibrato and Reverb pedal Jacks, Reverb output and input jacks

Description:

2 specially designed 10-inch speakers, Heavey Duty Black tolex covering, Flsih-mounted carrying handle, ¾ inch wood cabinet stock, chromed corners, specially selected acoustic grille cloth, Brushed aluminum control panel, numerically graduated controls

Specs:

Power output: 40-watts RMS; 88 watts peak music power

8 tubes (6 dual purpose – equivalent to 14 tube performance)

Rectifier Tube

Dimensions 18.5”H, 24.75” W, 9.5” D,

Power requirements: 117 Volts, 60 cycle AC

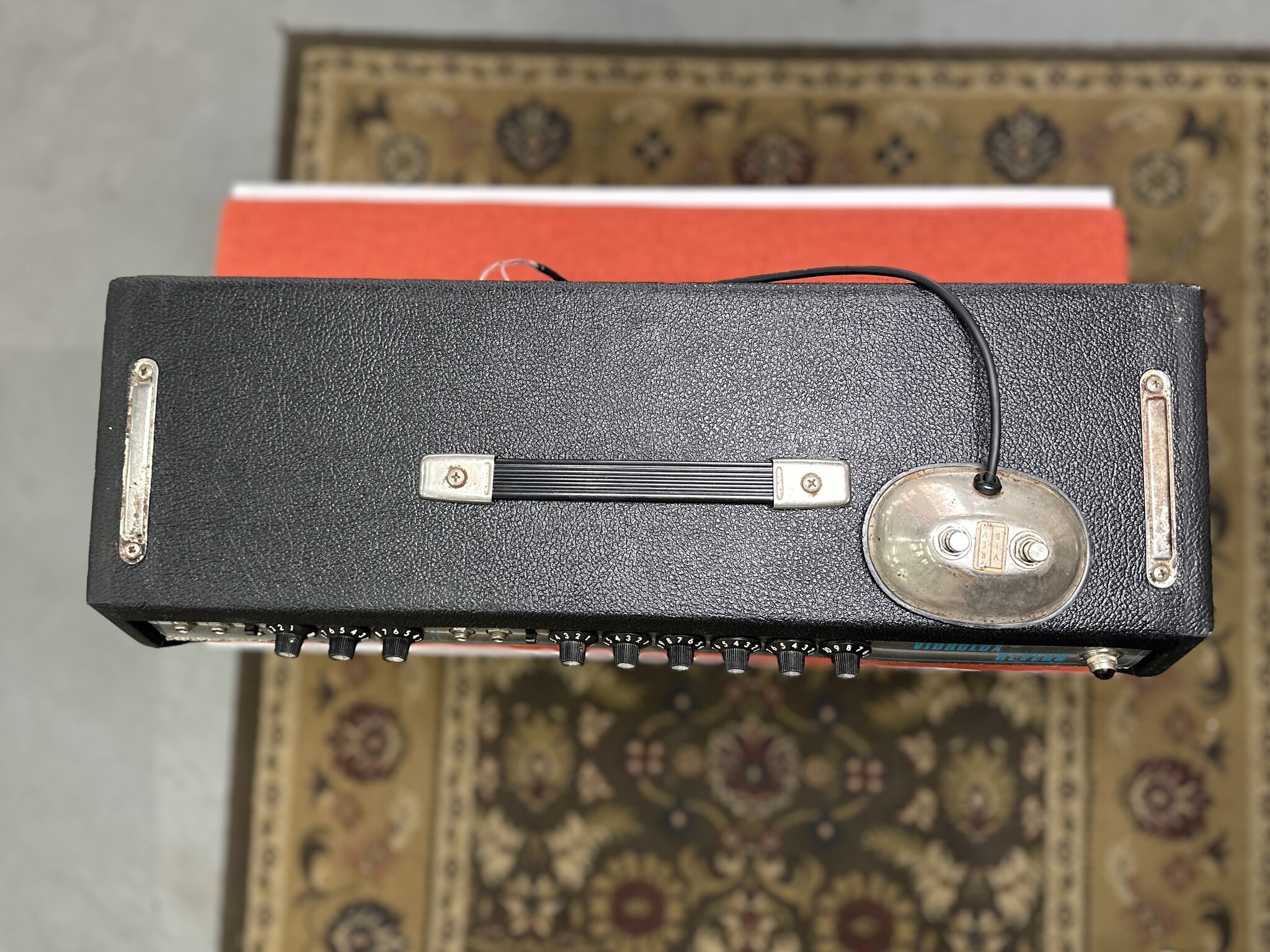

Accessories: Remote footswitch for reverb and vibrato, Tolex Cover
