Peavey 5150 90's "Signature" + Original Footswitch

LOCAL PICKUP ONLY

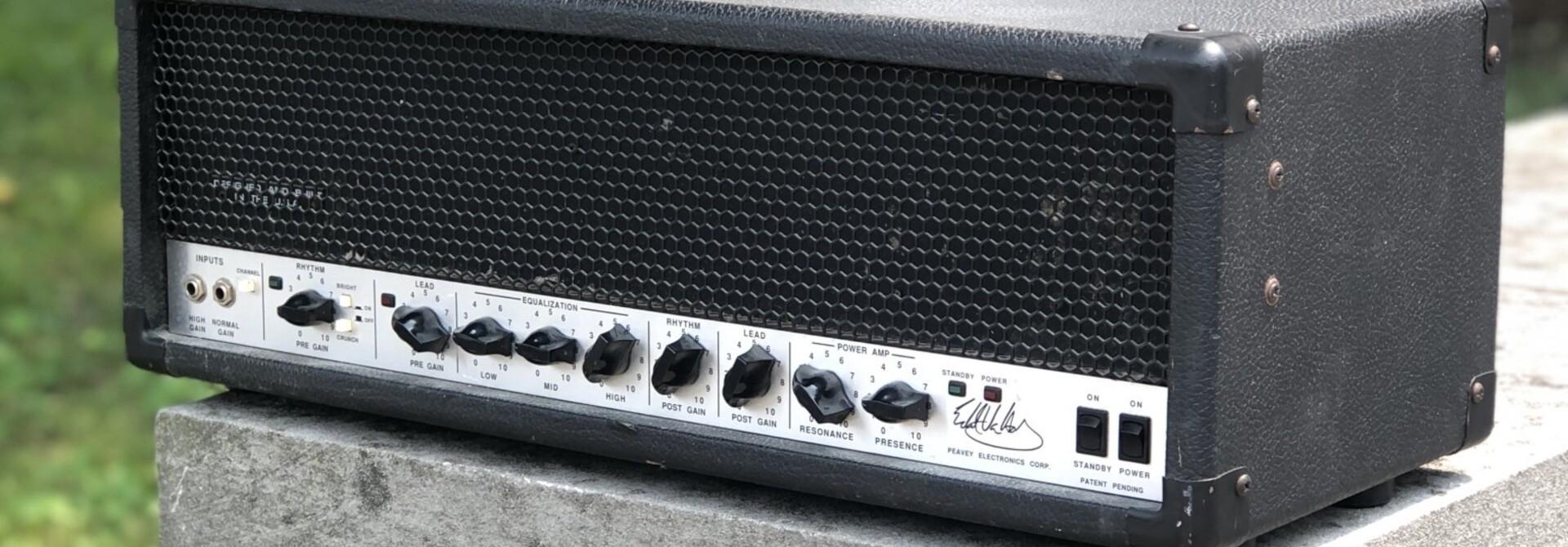

   This amp is used and shows some signs of wear as pictured. This amp is missing its 150 logo. Here's more info from Peavey:

   The 5150™ lets you experience 120W of smooth crunch and dense harmonics. 5 - 12AX7s in the preamp and 4 - 6L6s in the power amp provide all the gain and tone you'll need. Includes high and low gain inputs, and the 2 channel preamp is switchable on the front panel or footswitch. The rhythm channel features pre/post gain controls and bright/crunch switches. Lead channel has controls for pre/post gain only. Channels share 3-band EQ, presence, and resonance controls. Switchable post EQ effects loop. 16, 8, or 4 ohms with preamp output. Footswitch included.

   The 5150™ series amplifiers and enclosures are the result of extensive research and development with guitar legend Edward Van Halen to produce the ultimate products for guitarists. With the 5150™MkI and 5150™MkII heads, you'll experience super rock crunch, harmonic-rich sustain, and screaming drive like you've never heard before. The production models were identical to those Van Halen used when recording & touring.

AMP HEAD OVERVIEW:

▸ Six 12AX7 Pre-Amp & Four 6L6GC Power-Amp Tubes

▸ 120watts RMS into 16, 8 or 4-Ohm Switchable

▸ Ch1 Rhythm / Ch2 Lead Footswitchable Channel Select

▸ Rhythm Channel Footswitchable Bright-to-Crunch-Boost

▸ Rhythm Channel Bright Switch

▸ Three-Band EQ (Across Both Channels)

▸ Pre-Amp Output

▸ Effects Loop

▸ Bias Test Point

▸ Footswitch* (*Included - if originally donored)

▸ 240volts Australian Mains Power

______________________________________________________________________

SPECIFICATIONS:

▸ Amp Power:  120watts RMS

▸ Ohmage:  16, 8 or 4-Ohm Switchable

▸ Vacuum Valve Tubes:  Four 6L6 Power-Amp Tubes & Six 12AX7 Pre-Amp Tubes

▸ Graphic Equalizer:  Shared 3-Band Active EQ Controls on Each Channel (Rhythm & Lead) Bass / Middle / Treble across Channels

▸ Attitude:  Shared Resonance & Presence Controls across Channels

▸ Rhythm Channel:  Pre-Gain & Post-Gain Controls, as well as Bright/Crunch Switches

▸ Lead Channel:  Pre-Gain & Post-Gain Controls

▸ Front Input:  1 x High Gain Guitar Input Socket (¼" / 6.5mm TRS Mono Phono Jack) Requires Electric Guitar Instrument Cable

▸ Front Input:  1 x High Normal Guitar Input Socket (¼" / 6.5mm TRS Mono Phono Jack) Requires Electric Guitar Instrument Cable

▸ Rear Outputs (Speaker):  120w RMS / 44v RMS @ 4Ω Min. (2 x ¼" / 6.5mm TRS Phono Jacks) Requires Requires Speaker Cables

▸ Rear Output (Pre-Speaker):  Pre-Amp Output (¼" / 6.5mm TRS Phono Jack) Requires Speaker Cable

▸ Rear Out/Inputs:  Effects Loop Send & Return (2 x ¼" / 6.5mm TRS Phono Jacks) Requires Electric Guitar Instrument Cables

▸ Other Rear:  Bias Test Point & GND Switch

▸ Voltage Input:  240voltAC IEC Input Socket to Type "I" Wall Socket (220v-230v / 240v∿ / 50-60Hz / 400w) Cable Included

▸ Footswitch:  Peavey® 2-Channel Multi-Purpose 2-Button Stereo Footswitch (Labelled 1 & 2 with LED's & 15ft Right Angle ¼" Inch Cable)

▸ Fuse:  F3.15A / 250V

▸ MPN: 00324011

______________________________________________________________________

• Weight - 48.30 lb (21.91 kg)
• Width - 26.5" (67 cm)
• Height - 10.3" (26 cm)
• Depth - 11.9" (30 cm)
