Gamechanger Audio Plus Sustain Pedal with Footswitch

Gamechanger Audio Gamechanger Audio Plus Sustain Pedal with Footswitch

Back to overview

299.99 Excl. tax

(0)

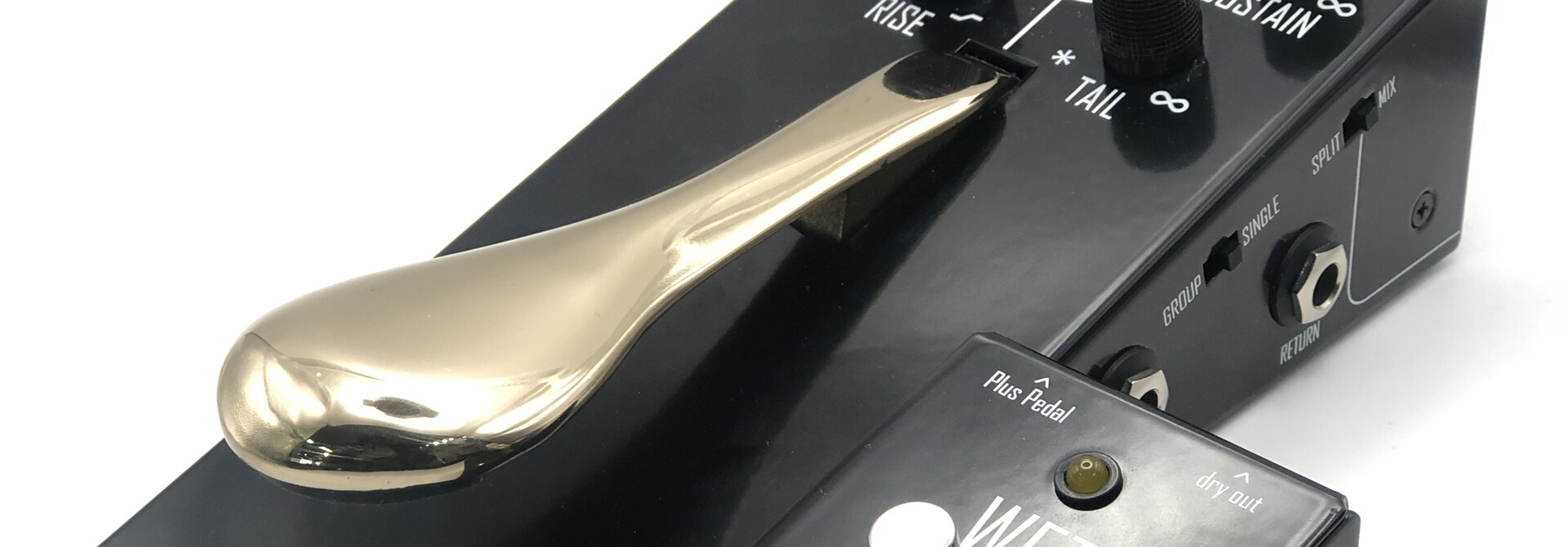

In the shop we've got a used Gamechanger Plus Pedal.

Direct checkout

  • In stock

Product description

In the shop we've got a used Gamechanger Plus Pedal, this pedal is used but in great shape, some very light wear can be seen on the face of the pedal under specific lighting. Velcro has been attached to both the pedal and footswitch.  Original box is included for both the Plus pedal and footswitch, no cables are included. Here's more from Gamechanger Audio:



PLUS PEDAL

Sustain and sostenuto pedal for all melodic instruments

The PLUS Pedal is more than just a stomp-box –

It is a powerful compositional and arrangement tool that extends the potential of any instrument, letting you bridge rhythm and lead parts and opening the doors to new soundscapes.



Real-time Audio Sampling is a unique generative algorithm developed by Gamechanger Audio that allows you add piano-style sustain and sostenuto functionality to any musical instrument. This is achieved by capturing and looping small segments of the instrument's output signal to produce smooth layers of sustain.



Unlike granular synthesizers and synth-pad triggers, the PLUS Pedal continuously records and analyzes a high-resolution audio buffer. When engaged, the algorithm identifies the optimal portion of the note's decay phase to create a seamless circular micro-loop.

Think of it as a smart looper that catches the entire decay segment of the most recent note or chord, and uses it to create a continuous sound.



DETAILED CONTROL

The PLUS Pedal offers full control over each layer of sustained sound. The RISE and TAIL knobs set the fade-in and fade-out speed of each new layer. The SUSTAIN knob controls a gradual high-cut filter that is tuned to emulate the natural decay properties of plucked strings. The piano-style foot-pedal provides a gradual response curve, letting you add subtlety and nuance to every sustained layer.



Footswitch for PLUS PEDAL (included)



The WET Only Footswitch serves as a remote foot-controller that bypasses the SPLIT & MIX toggle switch on the PLUS Pedal’s side panel, thus letting you switch in and out of the WET Only mode on the fly.

This flexibility allows you to build up a rich layer of ambient sound effects and then quickly unmute your instrument and return to playing on top.







TECHNICAL SPECIFICATION

Inputs



Input type

1/4” Unbalanced TS

Input impedance

1MΩ

Max Input Level

+6.8dBu

Ouputs



Output Type

1/4” Unbalanced TS

Output impedance

100Ω

Max output lebel

+6.8dBu

Max ADC input

-1.8 dBu

Max DAC output

+5.2 dBu

Sample Rate

26 kHz

A/D D/A Conversion

16 bit

Frequency Response Analog/Digital

20Hz to 22kHz/13kHz

Signal to Noise Ratio

-97 dB (A weighted); ref = max level, 22 kHz bandwidth

THD

-84 dB, ref= 6dBu, 1kHz

Controls

2-position foot pedal, Potentioometers: BLEND, SUSTAIN, RISE, TAIL, Switches: GROUP/SINGLE, SPLIT/MIX, additional footswitch input.

Indicator

3-level check and pedal state indicator

Connectors

IN, CLEAN OUT/FSW, OUT, SEND, RETURN

Power Consumption

1.8 W

Power Requirements

200mA, 9VDC, center negative 2.1 x 5.5 mm plug

PLUS PEDAL Dimensions (WxDxH)

90 x 195 x 72 mm (3.55 x 7.7 x 2.8 in)

PLUS PEDAL Weight

1020 g (2.25 lbs)

Footswitch Dimensions (WxDxH)

58 x 66 x 46 mm (2.3 x 2.6 x 1.8 in)

Footswitch weight

230 g (0.5 lbs)
