Ampeg B-40 Bass Head

LOCAL PICKUP ONLY

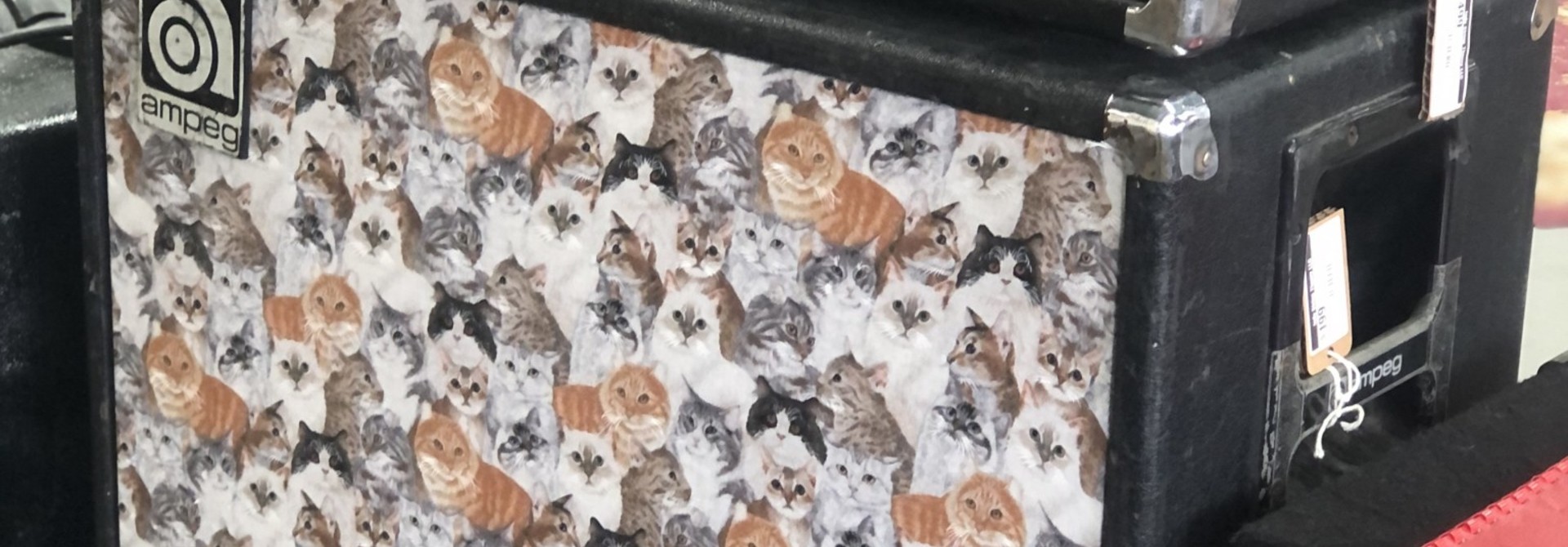

This amp head features the usual signs of wear and tear seen on a vintage amplifier as pictured. Here are the specs listed on the original Ampeg service manual:

• Power Output:

120 watts RMS minimum continuous at less than 0.3% total harmonic distortion (T.H.D.) into an 8 ohms load over the 20 to 20,000 Hertz band; 70 watts into 16ohms.

• Front Panel:

Four inputs

Two channels, each with volume control, bass, midrange, and treble controls, and ultra-hi switch.

Power switch

Pilot Light

• Rear Panel:

Two speaker jacks

Patching jacks

• Tone Control Range:

Treble +- 17dB @ 10,000 Hertz

Bass +- 20 dB @ 40 Hertz

Midrange +- 20db @ 300, 800 or 3,000 Hertz

Ultra-Hi + 12dB @ Hertz

• Signal to noise Ratio (S/N) :

-90 dB below full power

• Frequency Response (1 watt):

+- dB 20 to 20,000  Hertz

• Sensitivity:

Input sensitivity for high gain jacks is .011 volts for full power.

• Patching Facilities:

Power amplifier input jack is high impedance and .28 volts produces full power.

• Power Module:

Complete circuit self-protection is provided by automatic variable power programmed limiting. Shorted, mismatched, or open loads have no adverse effects. Amplifier is safe with any input signal or load. Overload recovery is instantaneous on any waveform.

• Power Supply Requirements:

Power consumption at rated output is 264 watts maximum.

• Dimensions:

27"x6"x12"

39lbs.
